Pitco
Air Shutter for Pitco Part# P9300-10
Part #P9300-10
SKU: 123655
Regular price
$5.46
Regular price
Sale price
$5.46
Unit price
/
per
Couldn't load pickup availability
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

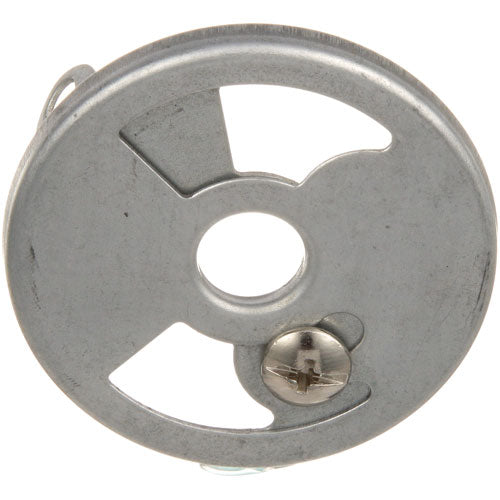

Air Shutter for Pitco Part# P9300-10
Details
The Pitco Air Shutter is a direct replacement combustion air control component for Pitco commercial gas fryers. It adjusts the volume of primary air mixing with the gas stream before combustion, allowing the air-to-fuel ratio to be tuned for the correct, efficient blue flame combustion that maximizes BTU output and minimizes carbon monoxide production. Using the correct air shutter ensures the proper adjustment range and mounting geometry for the burner design it serves, enabling precise combustion tuning.
Over time, the original air shutter can become seized in a fixed position from grease buildup and corrosion, deform from heat exposure, or lose its set-screw retention, causing it to drift from the adjusted position and deliver an improperly rich or lean mixture. Incorrect primary air results in yellow, sooty flames that deposit carbon on burner components, produce excess emissions, and deliver less heat energy to the oil than the fryer's rated capacity. Replacing it with this air shutter restores adjustability and secure position locking, enabling the burner to be properly tuned for clean, efficient combustion.
Installation involves removing the old shutter from the burner air inlet and securing the replacement in the same position, then adjusting and locking it to produce a clean blue flame. It is recommended to check and adjust the air shutter during every combustion service call and to replace it when corrosion or deformation prevents proper adjustment. Pairing air shutter replacement with orifice inspection and a full combustion analysis will deliver the most efficient and complete fryer combustion tune-up.
Read more...
Over time, the original air shutter can become seized in a fixed position from grease buildup and corrosion, deform from heat exposure, or lose its set-screw retention, causing it to drift from the adjusted position and deliver an improperly rich or lean mixture. Incorrect primary air results in yellow, sooty flames that deposit carbon on burner components, produce excess emissions, and deliver less heat energy to the oil than the fryer's rated capacity. Replacing it with this air shutter restores adjustability and secure position locking, enabling the burner to be properly tuned for clean, efficient combustion.
Installation involves removing the old shutter from the burner air inlet and securing the replacement in the same position, then adjusting and locking it to produce a clean blue flame. It is recommended to check and adjust the air shutter during every combustion service call and to replace it when corrosion or deformation prevents proper adjustment. Pairing air shutter replacement with orifice inspection and a full combustion analysis will deliver the most efficient and complete fryer combustion tune-up.
Product Specs
Warranty |
120-day warranty |
SKU |
123655 |
-
