Asco

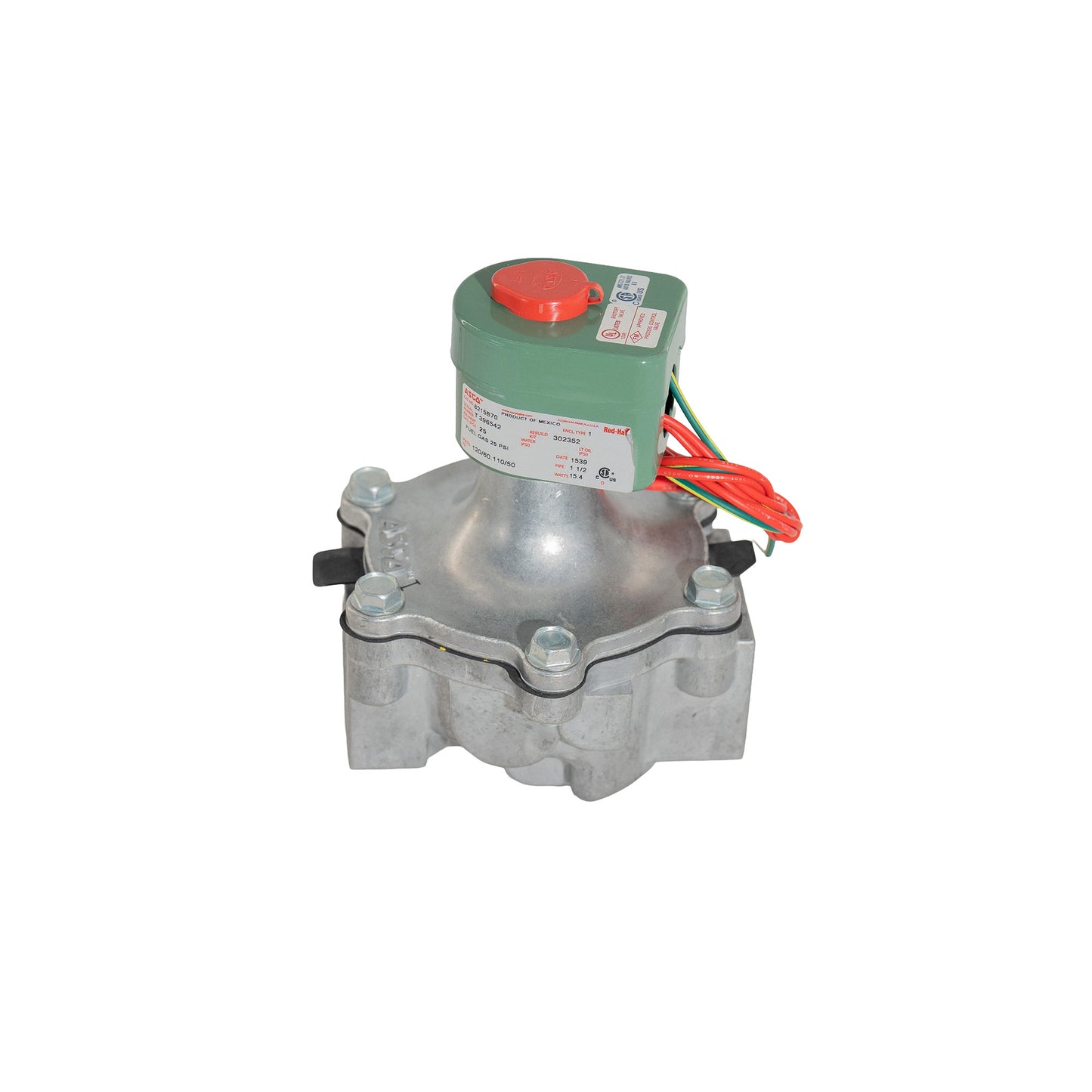

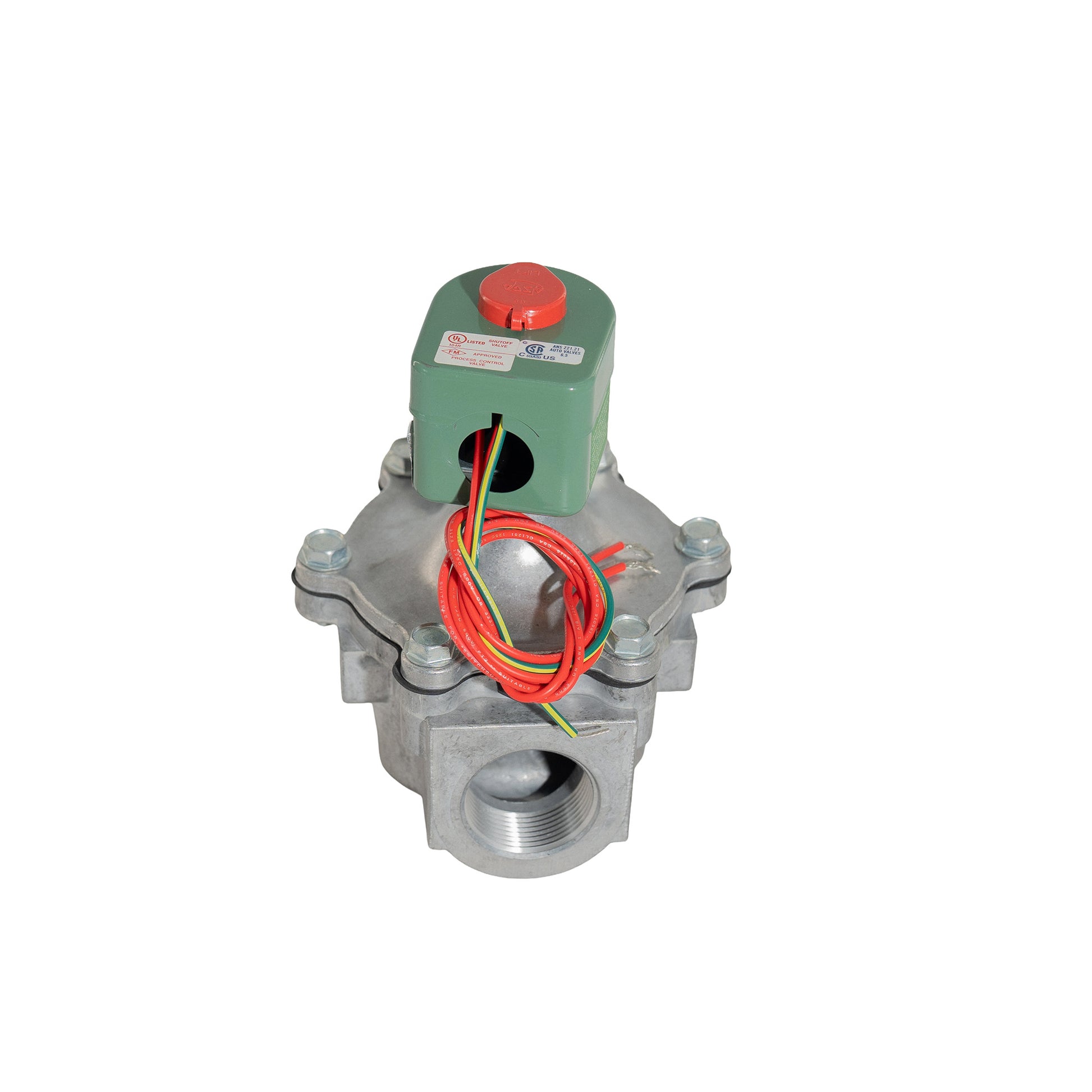

Asco Red Hat 8215B070 1-1/2" Electric Gas Valve, 120V
Part #8215B070

Availability
$550.00
$550.00
SHIPPING
Order by 3:00 PM EST for same business day shipping
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW
  • Genuine ASCO Red Hat II Series 8215 gas safety shutoff valve — OEM replacement for commercial gas-fired equipment requiring a 1-1/2" NPT normally closed solenoid valve
  • 2-way, normally closed design with aluminum body and NEMA 4/4X weatherproof enclosure; rated 0–25 PSI for natural gas and LP service
  • 120V AC solenoid with 35 Cv flow coefficient; handles up to 1,900,000 BTU/hr for high-capacity commercial burner applications
  • CSA-certified fail-safe operation — valve closes automatically on power loss, meeting code requirements for commercial kitchen gas safety systems
View full details

Details

The ASCO Red Hat 8215B070 is a 1-1/2" NPT, 2-way normally closed gas safety shutoff valve for commercial kitchen and industrial heating applications that require automatic gas control on larger-diameter gas trains. Part of the proven Series 8215 Red Hat II family, this valve is rated for natural gas and LP service and is commonly found in high-BTU commercial cooking equipment including charbroilers, braising pans, steam jacketed kettles, and other heavy-duty gas-fired appliances. Its normally closed design ensures gas is automatically shut off whenever power is lost, providing the fail-safe behavior required by commercial kitchen gas codes and equipment standards.

Built with a durable aluminum body, 1-5/8" orifice, and NBR seals, the 8215B070 delivers a 35 Cv flow coefficient supporting up to 1,900,000 BTU/hr — the highest capacity in the Series 8215 lineup's standard sizes. The valve operates on 120V AC at 15.4 watts and carries CSA certification (ANSI Z21.21/CGA 6.5) for automatic gas valve service in North American installations. The Red Hat II operator provides clear visual indication of valve position for quick status confirmation during service. The NEMA 4/4X rated enclosure protects against the grease and moisture common in commercial kitchen environments.

The ASCO 8215B070 shares the same Series 8215 construction platform as the 8215G030 (3/4"), 8215B050 (1"), and 8215B60 (1-1/4") models, making it a familiar replacement for technicians already working with this family of valves. The CSA-rated variant is sometimes listed with the suffix "CSA" or "B70" — all refer to the same valve for 1-1/2" gas train applications. When replacing this valve, always verify supply voltage, pipe size, and pressure rating against the equipment's OEM specifications, and perform a full gas leak test after installation per local codes.
Read more...

Product Specs

Voltage (V)

120V
