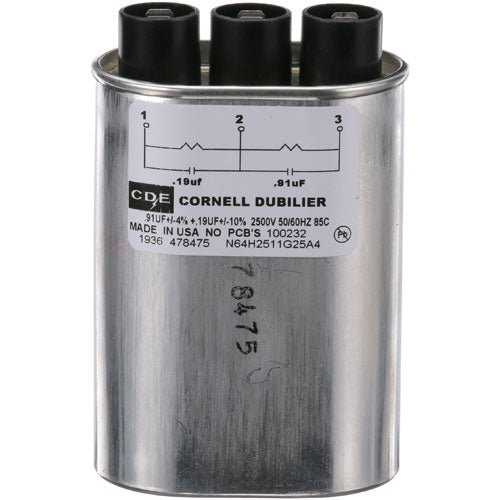

• TurboChef 100232 High Voltage Capacitor – OEM Dual 0.91uF 0.19uF
1 1

Turbochef

Capacitor For Turbochef Part# 100232
Part #100232

Availability
$59.26
$59.26
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The TurboChef 100232 High Voltage Capacitor is a genuine OEM dual capacitor designed for TurboChef ovens with high-voltage microwave systems. Rated at 0.91uF and 0.19uF, this dual capacitor supports proper magnetron power delivery and stable high-voltage operation. A functioning capacitor is essential for consistent microwave output, reliable cooking performance, and safe electrical operation. Manufactured to TurboChef OEM specifications, it provides correct fit and dependable performance in commercial kitchen environments.

View full details

Details

The TurboChef Capacitor is a direct replacement high-voltage capacitor for TurboChef NGC, Tornado, i-Series, HHB, and other rapid cook ovens equipped with a magnetron-based microwave circuit. It is a critical component in the high-voltage doubler circuit, storing electrical charge and releasing it to supply the DC anode voltage required for magnetron operation — without a functioning capacitor, the magnetron cannot generate microwave energy. Using the correct capacitor ensures the capacitance value (typically in the range of 0.9–1.1 µF), working voltage rating (typically 2100 VAC), and physical form factor are matched to the oven's high-voltage circuit board layout and discharge resistor specification.

Over time, the original capacitor can experience internal dielectric breakdown, electrolyte drying (in electrolytic types), or catastrophic failure from voltage spikes and sustained high-temperature operation in the oven's internal environment, which leads to loss of magnetron output power, slow or absent microwave cooking, fault codes indicating microwave circuit failure, or — in the case of catastrophic failure — audible arcing and blown fuses. Replacing the failed capacitor with a new unit restores the proper DC anode voltage supply to the magnetron and returns the microwave circuit to full operational capability. This ensures the oven can achieve its rated microwave power output and maintain the cook times programmed into its cook menu.

Capacitor replacement must only be performed by a qualified technician who is trained in high-voltage safety procedures; the capacitor retains a lethal charge even after the oven is de-energized and must be fully discharged using an appropriate discharge tool before handling. It is recommended to test and replace the capacitor whenever the oven displays microwave circuit fault codes, when magnetron output tests indicate below-specification power, or when the existing capacitor is found to be physically bulged, leaking, or has failed continuity testing. Pairing capacitor replacement with inspection and testing of the high-voltage diode, magnetron filament transformer, and magnetron itself will provide a complete microwave circuit service and reduce the likelihood of a repeat failure from a pre-existing secondary fault.
Read more...

Product Specs

0.91Uf+0.19Uf
Dual
2500Vac (50/60Hz)

Warranty

120-day warranty

SKU

100336
