Jackson
Contactor 2P 30/40A 120V for Jackson Part# 120500
Part #120500
SKU: 134389
Regular price
$36.36
Regular price
Sale price
$36.36
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

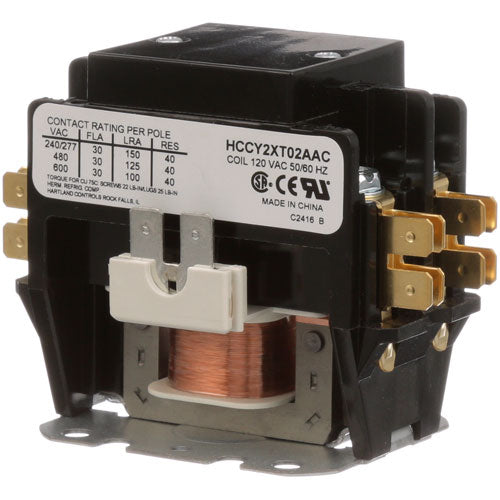

Contactor 2P 30/40A 120V for Jackson Part# 120500
Details
The contactor (Jackson Part# 120500) is a 2-pole, 30/40 Amp electrical component rated for 120V operation in Jackson commercial warewashing equipment. This replacement controls lower-voltage electrical loads such as solenoid valve coils, control circuit power, and auxiliary component switches. The contactor is part of the equipment's electrical control system and responds to control signals during wash cycle sequences.
Contactors degrade through electrical arcing that pits and erodes contact surfaces, preventing reliable electrical connection and causing intermittent power delivery to connected loads. Contact surface damage accumulates progressively, resulting in sporadic component operation and unpredictable equipment behavior. Extreme arcing can weld contacts together, causing permanent connection, or burn contacts open, creating permanent disconnection. Symptoms include auxiliary equipment activating sporadically, control functions operating erratically, or loads not responding to control signals.
A certified technician should perform the replacement due to electrical safety concerns and the need to isolate circuits properly before work. All electrical power must be verified off using appropriate testing equipment before any work begins. Following installation, test all contactor-controlled auxiliary loads to ensure reliable operation throughout the equipment's control sequences. Establish a preventive maintenance schedule that includes regular visual inspection of contactors for arcing damage, contact surface degradation, discoloration, or abnormal heating, and replace contactors if any degradation is observed.
Read more...
Contactors degrade through electrical arcing that pits and erodes contact surfaces, preventing reliable electrical connection and causing intermittent power delivery to connected loads. Contact surface damage accumulates progressively, resulting in sporadic component operation and unpredictable equipment behavior. Extreme arcing can weld contacts together, causing permanent connection, or burn contacts open, creating permanent disconnection. Symptoms include auxiliary equipment activating sporadically, control functions operating erratically, or loads not responding to control signals.
A certified technician should perform the replacement due to electrical safety concerns and the need to isolate circuits properly before work. All electrical power must be verified off using appropriate testing equipment before any work begins. Following installation, test all contactor-controlled auxiliary loads to ensure reliable operation throughout the equipment's control sequences. Establish a preventive maintenance schedule that includes regular visual inspection of contactors for arcing damage, contact surface degradation, discoloration, or abnormal heating, and replace contactors if any degradation is observed.
Product Specs
Voltage (V) |
120V |
Amps (A) |
40A |
Warranty |
120-day warranty |
SKU |
134389 |
-
