Jackson
Contactor (3 Pole,40 Amp,240V) for Jackson Part# 1230
Part #1230
SKU: 105300
Regular price
$66.34
Regular price
Sale price
$66.34
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

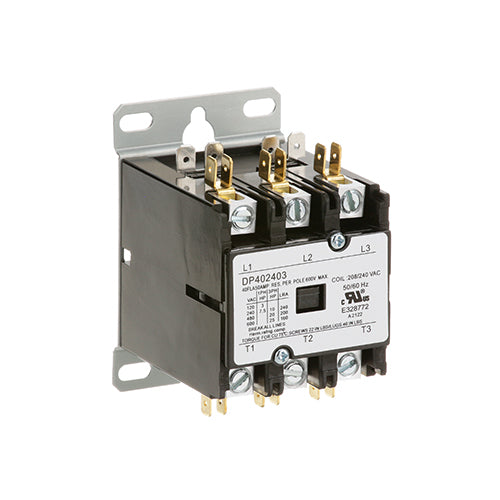

Contactor (3 Pole,40 Amp,240V) for Jackson Part# 1230
Details
The contactor (Jackson Part# 1230) is a 3-pole, 40 Amp electrical switch rated for 240V operation in Jackson commercial dishwashing equipment. This replacement controls three-phase or high-amperage electrical loads such as large circulation pumps and heating elements. The contactor responds to control signals from the equipment's electrical system and manages power delivery during wash cycle sequences.
Higher-amperage contactors at 40 Amp experience significant electrical stress and are prone to arcing damage on contact surfaces, which creates pitting and erosion preventing reliable electrical connections. Progressive contact degradation causes intermittent power delivery to connected loads, with equipment activating sporadically or failing to respond to control signals. Severe arcing can weld contacts together or burn them open, creating permanent electrical faults. Symptoms include sporadic component operation, stalled wash cycles, or major loads not receiving power despite being called.
A licensed technician with commercial electrical expertise should perform the replacement due to electrical shock hazard and the high current involved. All electrical power must be isolated and verified off using appropriate testing equipment before work begins. Following installation, test all contactor-controlled loads through multiple complete wash cycles to confirm reliable operation. Establish a preventive maintenance program with regular inspections for arcing damage, contact surface degradation, discoloration, or unusual heating, and replace contactors proactively if damage is detected.
Read more...
Higher-amperage contactors at 40 Amp experience significant electrical stress and are prone to arcing damage on contact surfaces, which creates pitting and erosion preventing reliable electrical connections. Progressive contact degradation causes intermittent power delivery to connected loads, with equipment activating sporadically or failing to respond to control signals. Severe arcing can weld contacts together or burn them open, creating permanent electrical faults. Symptoms include sporadic component operation, stalled wash cycles, or major loads not receiving power despite being called.
A licensed technician with commercial electrical expertise should perform the replacement due to electrical shock hazard and the high current involved. All electrical power must be isolated and verified off using appropriate testing equipment before work begins. Following installation, test all contactor-controlled loads through multiple complete wash cycles to confirm reliable operation. Establish a preventive maintenance program with regular inspections for arcing damage, contact surface degradation, discoloration, or unusual heating, and replace contactors proactively if damage is detected.
Product Specs
Voltage (V) |
240V |
Warranty |
120-day warranty |
SKU |
105300 |
-
