Jackson
Contactor 4P 30/40A 208/240V for Jackson Part# 5945-109-01-69
Part #5945-109-01-69
SKU: 134147
Regular price
$91.20
Regular price
Sale price
$91.20
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

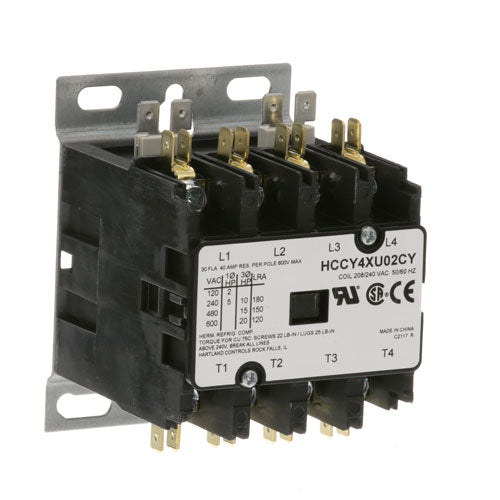

Contactor 4P 30/40A 208/240V for Jackson Part# 5945-109-01-69
Details
The contactor (Jackson Part# 5945-109-01-69) is a 4-pole, 30/40 Amp electrical component rated for 208/240V service in Jackson commercial dishwashing equipment. This replacement controls electrical power delivery to high-amperage loads such as water pumps, heating elements, and solenoid-operated valves. The contactor works with the equipment's control system to safely switch major electrical loads during the wash cycle sequence.
Contactors degrade through electrical arcing that pits and erodes contact surfaces, preventing reliable electrical connections and causing intermittent power delivery to connected components. The arcing process generates extreme heat and magnetic stress that can weld contacts together or burn them open completely. Symptom include equipment loads that activate sporadically, wash cycles that stall or fail to progress, or critical components not receiving power despite control signals. A failed contactor disrupts normal equipment operation and may prevent cycle completion.
Only a qualified technician with electrical certification should perform the replacement due to electrical shock hazard and the need to safely isolate high-voltage circuits. All power must be de-energized and verified off using a multimeter before any work begins. Following installation, operate test cycles and verify that all contactor-switched equipment loads activate and deactivate reliably as programmed. Monitor contactors regularly during preventive maintenance for signs of arcing, contact pitting, surface erosion, or abnormal temperature, and replace proactively if degradation is observed.
Read more...
Contactors degrade through electrical arcing that pits and erodes contact surfaces, preventing reliable electrical connections and causing intermittent power delivery to connected components. The arcing process generates extreme heat and magnetic stress that can weld contacts together or burn them open completely. Symptom include equipment loads that activate sporadically, wash cycles that stall or fail to progress, or critical components not receiving power despite control signals. A failed contactor disrupts normal equipment operation and may prevent cycle completion.
Only a qualified technician with electrical certification should perform the replacement due to electrical shock hazard and the need to safely isolate high-voltage circuits. All power must be de-energized and verified off using a multimeter before any work begins. Following installation, operate test cycles and verify that all contactor-switched equipment loads activate and deactivate reliably as programmed. Monitor contactors regularly during preventive maintenance for signs of arcing, contact pitting, surface erosion, or abnormal temperature, and replace proactively if degradation is observed.
Product Specs
Voltage (V) |
208/240V |
Amps (A) |
40A |
Warranty |
120-day warranty |
SKU |
134147 |
-
