Manitowoc Ice

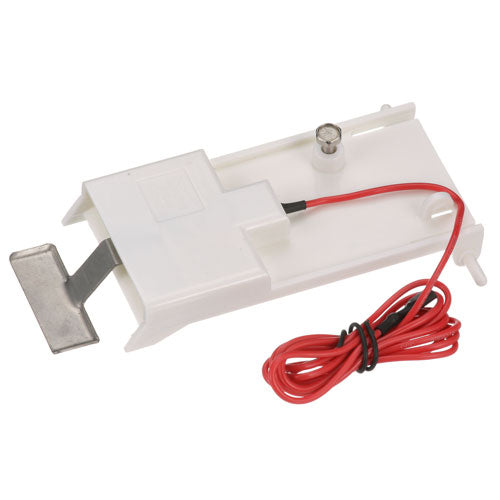

Control, Ice Thickness for Manitowoc Part# 20-0802-9
Part #20-0802-9
SKU: 8173046857897
Regular price
$87.39
Regular price
Sale price
$87.39
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Order by 3:00 PM EST for same business day shipping
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW
- Aftermarket replacement ice thickness control, part# 20-0802-9
- Adjusts the ice thickness probe position to set cube size
- Allows technician adjustment of the harvest cycle trigger point
- Affects daily production output and individual cube weight
- Direct replacement for Manitowoc commercial cube ice machines
Details
The ice thickness control on Manitowoc cube ice machines sets the position of the ice thickness probe relative to the evaporator surface, determining how thick the ice must grow before the probe triggers the harvest cycle. Adjusting the control moves the probe closer to or farther from the evaporator face, directly changing the cube thickness setting and affecting the weight, clarity, and daily production count per cycle.
A worn, corroded, or mechanically damaged ice thickness control that prevents the probe from being correctly positioned results in inconsistent cube thickness, erratic harvest timing, or loss of ice quality control. In some designs the control integrates the probe and adjustment mechanism as a combined assembly, requiring replacement as a unit when the probe tip degrades or the adjustment mechanism seizes. Replacing with this aftermarket assembly restores accurate probe positioning, consistent freeze cycle timing, and the ability to fine-tune cube thickness to specification.
Read more...
A worn, corroded, or mechanically damaged ice thickness control that prevents the probe from being correctly positioned results in inconsistent cube thickness, erratic harvest timing, or loss of ice quality control. In some designs the control integrates the probe and adjustment mechanism as a combined assembly, requiring replacement as a unit when the probe tip degrades or the adjustment mechanism seizes. Replacing with this aftermarket assembly restores accurate probe positioning, consistent freeze cycle timing, and the ability to fine-tune cube thickness to specification.
Product Specs
Warranty |
120-day warranty |
SKU |
8173046857897 |
-
