Turbochef
Diode for Turbochef Part# 100481
Part #100481
Couldn't load pickup availability
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

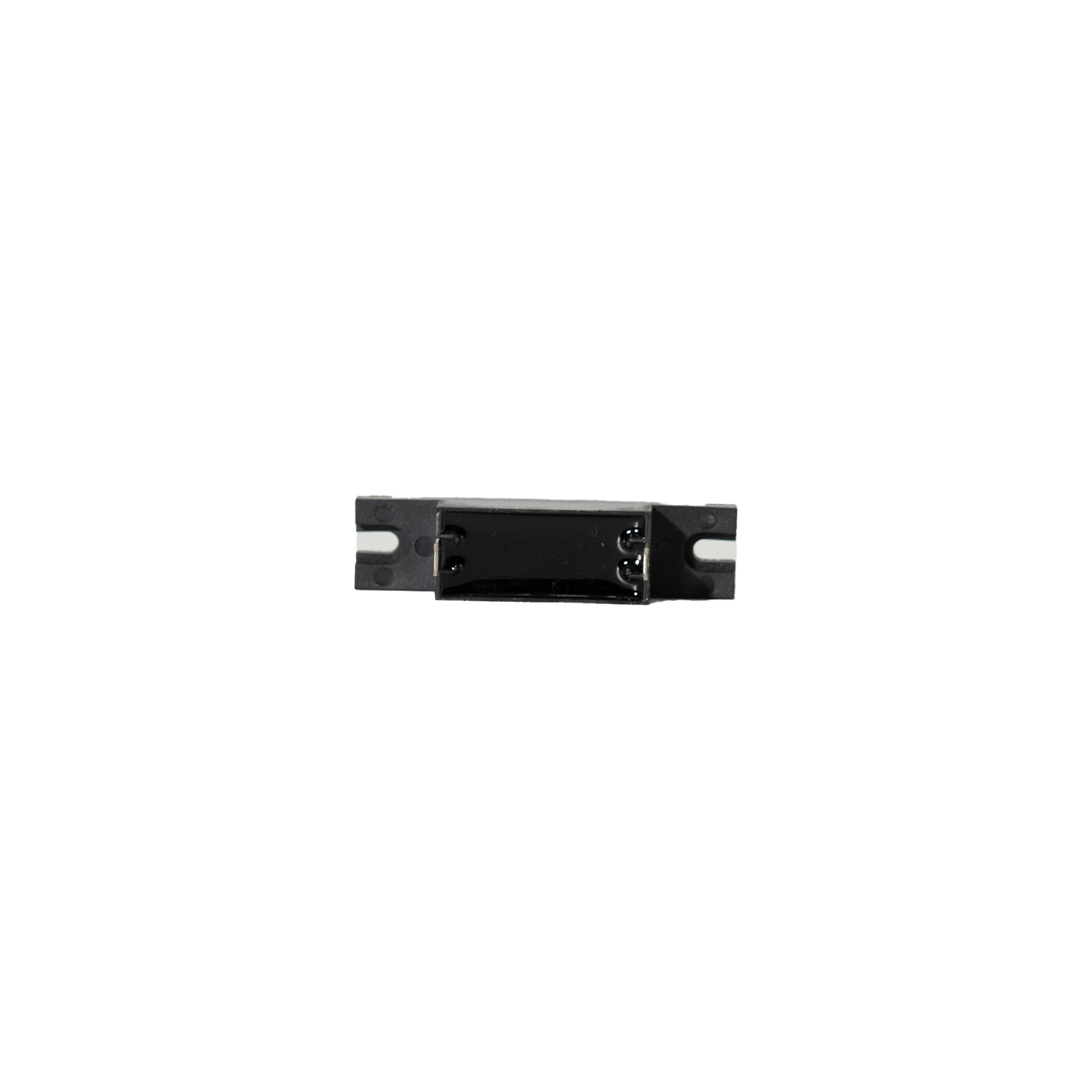

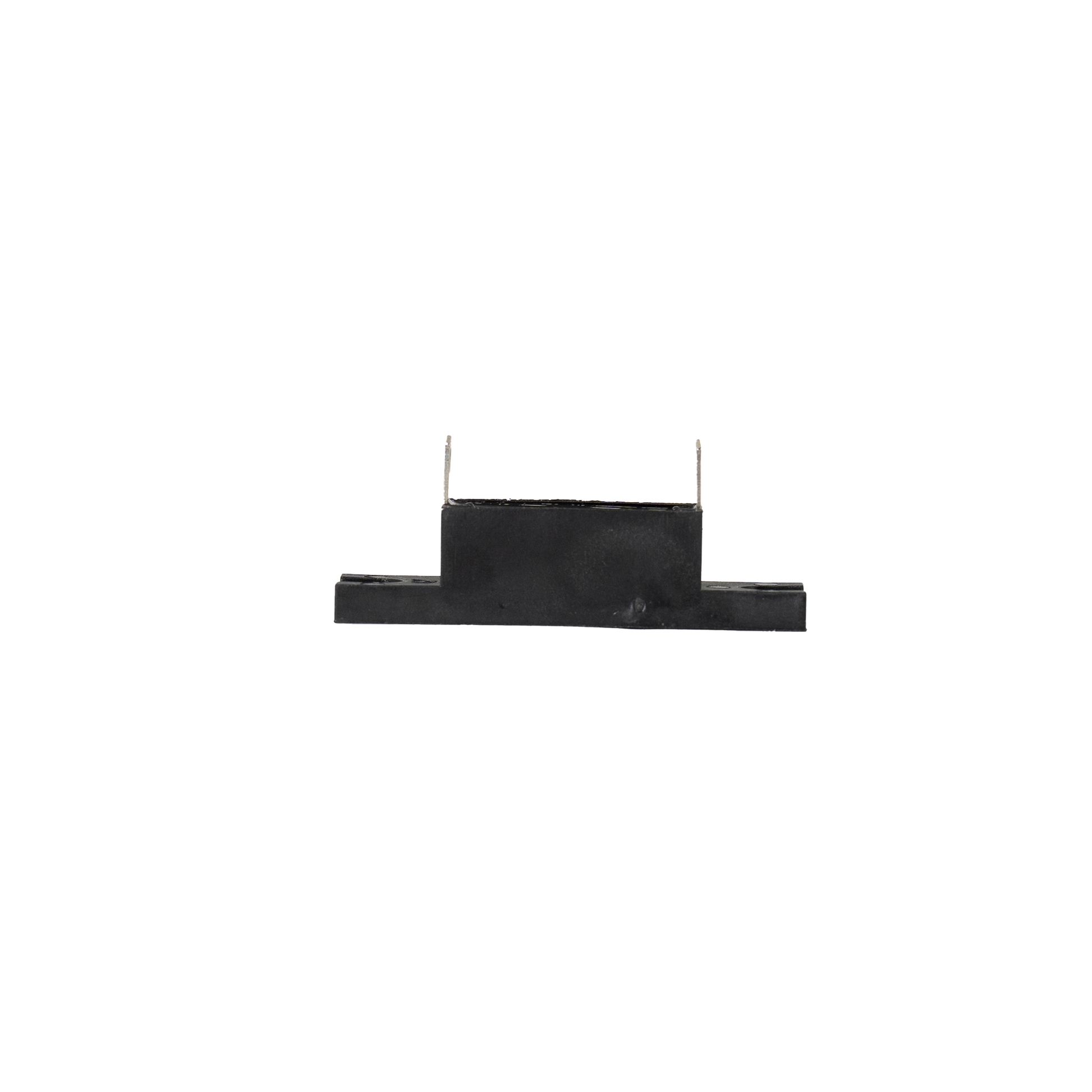

The TurboChef 100481 High Voltage Diode is a genuine OEM replacement diode designed for TurboChef ovens using high-voltage microwave power systems. This component helps convert and control high-voltage current within the microwave circuit, supporting proper magnetron operation and consistent cooking performance. A faulty high voltage diode can lead to heating issues, error codes, or loss of microwave output. Manufactured to TurboChef OEM specifications, it ensures correct fit, safe operation, and dependable electrical performance in commercial kitchen environments.
Details
Over time, the original diode can fail by open-circuit breakdown, where it no longer conducts in either direction, or by short-circuit failure that passes current in both directions, from voltage spike events, thermal stress, or end-of-life breakdown of the diode junction under sustained high-voltage operation, which leads to complete loss of magnetron DC anode voltage and total absence of microwave cooking function, or in the case of short-circuit failure, possible damage to the capacitor and transformer from resulting over-current conditions. Replacing the failed diode with a new high-voltage rectifier diode restores correct half-wave rectification in the doubler circuit, re-establishing the proper DC anode voltage that the magnetron requires to generate microwave energy. This returns the oven to full microwave cooking performance and eliminates the cascade damage risk to other high-voltage components that an unaddressed diode short-circuit failure can cause.
High-voltage diode replacement must be performed exclusively by a qualified technician trained in high-voltage safety procedures; the capacitor must be fully discharged using an appropriate discharge tool before any contact with the high-voltage circuit is made, as it retains a lethal charge after the oven is de-energized. It is recommended to test the diode using a diode function test on a suitable high-voltage meter during any microwave circuit fault diagnosis, and to replace it whenever it fails the diode test or whenever a pattern of microwave circuit component failures suggests voltage spike events. Pairing diode replacement with testing of the capacitor and magnetron, and inspection of the filament transformer and high-voltage wiring for damage, will provide a thorough microwave circuit assessment and reduce the risk of recurrent failures.
Product Specs
Warranty |
120-day warranty |
SKU |
130966 |
-
