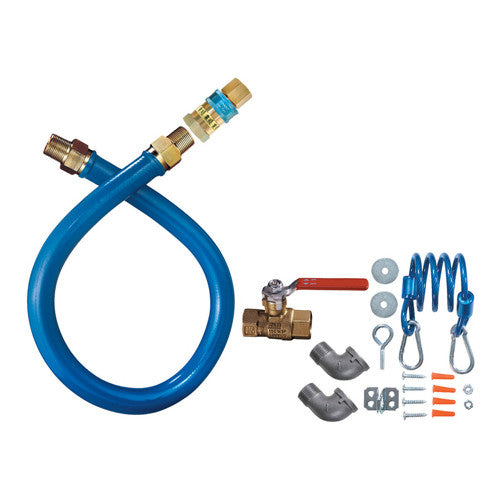

• Blue garden hose kit with brass fittings, a red-handled valve, silver elbow couplings, a blue coiled spring, metal hooks, washers, and mounting screws on a white background.
1 1
OEM

Dormont

Dormont 16100KIT48 1" x 48" Gas Connector Kit
Part #16100KIT48

Availability
$365.00
$365.00
SHIPPING
Order by 3:00 PM EST for same business day shipping
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW
  • Complete 48" moveable gas connector kit for commercial kitchen equipment with 1" NPT gas connections — includes Blue Hose®, SnapFast® quick disconnect, full port valve, two 90° elbows, and restraining cable with all mounting hardware
  • Dormont Blue Hose® features corrugated 304 stainless steel inner construction with tight-weave stainless steel braid and antimicrobial PVC coating; rated for 334,000 BTU/hr minimum flow capacity — suited for larger commercial cooking equipment
  • SnapFast® one-handed quick disconnect allows single-hand connection/disconnection in tight spaces; built-in thermal shutoff automatically cuts gas flow if internal temperature exceeds 350°F
  • NSF certified, CSA C/US certified, and Made in USA; backed by Dormont's lifetime warranty on the hose
View full details

Details

The Dormont 16100KIT48 is a complete deluxe gas connector kit for commercial kitchen equipment with 1" gas supply connections. The kit centers on Dormont's Blue Hose® — a corrugated 304 stainless steel tube wrapped in tight-weave stainless steel braid and finished with an antimicrobial PVC coating that slows the growth of bacteria, mold, and mildew on the connector surface. With a minimum flow capacity of 334,000 BTU/hr, this kit is sized for higher-demand commercial cooking equipment such as large ranges, fryers, and combination ovens that draw more gas than smaller appliances can supply through a 1/2" or 3/4" connection. The total installed length of the assembly is 48", and the stainless construction allows it to flex safely with caster-mounted equipment that rolls away from the wall for cleaning and service.

The SnapFast® quick disconnect included in this kit is Dormont's exclusive one-handed design — engineered to connect and disconnect with a single hand, making it practical in the cramped spaces behind commercial cooking equipment. A pull of the operating ring disconnects gas flow instantly for safe maintenance; reconnection is just a push and a click. An internal thermal shutoff provides an additional safety layer by automatically closing gas flow if the fitting temperature reaches 350°F. The kit also includes a full port ball valve, two 1" 90° street elbows for routing flexibility, and Stress Guard® rotational end fittings that reduce installation stress and prevent hose kinking.

The restraining cable and all mounting hardware are included — a restraining device is required by most commercial kitchen codes and local AHJ inspectors throughout the United States. The 16100KIT48 is rated for indoor use only and is NSF certified and CSA C/US certified for commercial foodservice applications. Dormont backs the Blue Hose® with a lifetime warranty. For equipment requiring a smaller connection, the Dormont 1675KIT48 (3/4") and 1650KIT48 (1/2") are the equivalent kits in those diameters. This kit is made in the USA.
Read more...

Product Specs
