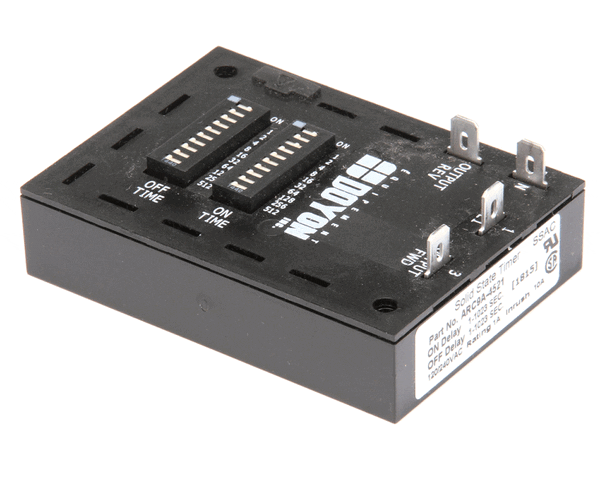

• Small solid-state timer module with labeled terminals and indicator on white background
1 1

Doyon

Doyon ELM715 Timer, Solid State, ACP or SSAC, 120/240V
Part #ELM715

Availability
$526.81
$526.81
SHIPPING
Order by 3:00 PM EST for same-day shipping
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The Doyon ELM715 Timer is a genuine OEM replacement part designed for select Doyon ovens and commercial foodservice equipment. This solid-state timer operates at 120/240 volts and is compatible with ACP or SSAC systems, providing precise timing control for consistent cooking performance.

Ideal for equipment repair or preventive maintenance, the Doyon ELM715 timer restores accurate timing functions, reduces downtime, and extends the service life of your appliance. Manufactured to OEM specifications, it ensures durable construction, precise fit, and reliable operation in demanding commercial kitchen environments.

View full details

Details

The Doyon ELM715 is a genuine OEM solid-state timer compatible with ACP or SSAC timing modules, operating at 120 or 240V, designed for Doyon deck ovens and proofing equipment using solid-state timing systems. Unlike electromechanical analog timers, the ELM715 solid-state design has no mechanical contacts or motor-driven cams, providing significantly longer operating life and more reliable timing accuracy in the continuous-use commercial baking environment.

Solid-state timers use electronic timing circuits rather than motor-driven clock mechanisms to measure elapsed time. The ELM715 is energized when the operator initiates a timed bake cycle, counts down the preset period, and activates its output relay at zero to signal the end of the cycle. The absence of mechanical timing components eliminates the calibration drift common in analog timers and reduces maintenance to essentially zero for the timing function itself.

Signs that the solid-state timer has failed include the timer not counting down despite being energized, the end-of-cycle alarm or relay not activating, the timer displaying incorrect remaining time, or the timer not resetting after a cycle completes. Solid-state timer failures are often caused by voltage spikes or power surges that damage the internal timing circuit rather than wear, which is distinct from the gradual mechanical wear failure mode of analog timers.

Replacement should be performed by a qualified technician. The power to the equipment is disconnected, the failed timer module is removed from its socket or mounting, and the new ELM715 is installed. The timer's setpoint should be verified against the equipment's standard bake time specifications before returning the equipment to production.

The genuine Doyon ELM715 provides the factory-specified solid-state timing function for compatible ACP and SSAC timer system applications at 120V or 240V, ensuring precise, reliable bake cycle timing without the mechanical wear limitations of analog timers.
Read more...

Product Specs

Voltage (V)

120/240V

Warranty

90-day warranty

SKU

147200
