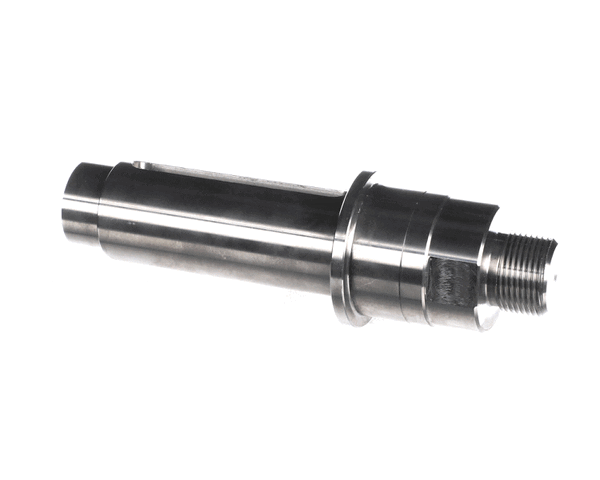

• Long metal planetary mixer shaft with machined ends and keyways on white background
1 1

Doyon

Doyon FMF745 Shaft – Planetary, Satellite, BTF
Part #FMF745

Availability
$1,080.27
$1,080.27
SHIPPING
Order by 3:00 PM EST for same-day shipping
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The Doyon FMF745 Shaft is a genuine OEM replacement part designed for BTF series planetary mixers. This shaft connects planetary and satellite components, ensuring smooth and efficient mixing performance for dough, batter, and other food products.

Ideal for equipment repair or preventive maintenance, the Doyon FMF745 shaft restores proper mixer functionality, reduces downtime, and extends the service life of your appliance. Built to OEM specifications, it delivers durable construction, precise fit, and reliable operation in commercial bakery environments.

View full details

Details

The Doyon FMF745 is a genuine OEM planetary satellite shaft designed for Doyon BTF series spiral mixers. In a planetary mixer drive system, the satellite shaft carries the secondary (satellite) gear that orbits the central sun gear, transmitting the motor's power through the planetary gear assembly to produce the combined orbital and rotational motion of the mixing tool that is characteristic of planetary mixer operation.

The planetary satellite shaft must withstand the cyclic bending and torsional loads imposed on it as the satellite gear orbits the sun gear under the full mixing load of the BTF mixer. Shaft integrity is critical not only for power transmission but also for the geometric accuracy of the planetary gear mesh — any shaft deflection or wear at the bearing journals degrades the gear tooth contact pattern, accelerating gear wear and reducing the accuracy of the mixing tool's orbital path through the bowl.

Signs that the satellite shaft requires replacement include audible noise from the planetary gear assembly during mixing, increased vibration in the mixer head, visible scoring or wear on the shaft journal surfaces when the mixer is disassembled for inspection, or metal particles in the mixer's gearbox oil indicating wear debris from the planetary assembly. Shaft failure under overload conditions can also cause sudden loss of drive to the mixing tool.

Replacement should be performed by a qualified technician following the BTF mixer's planetary assembly disassembly procedure. The planetary assembly is accessed through the mixer head top cover, the satellite shaft is removed along with its bearings and gear, and the new FMF745 is installed with the appropriate bearings and gear mesh clearances set per the service manual specifications.

The genuine Doyon FMF745 planetary satellite shaft provides the factory material specification and dimensional accuracy required for correct planetary gear operation in BTF series mixers, ensuring reliable power transmission and consistent mixing tool motion throughout the shaft's service life.
Read more...

Product Specs

Warranty

90-day warranty

SKU

147230
