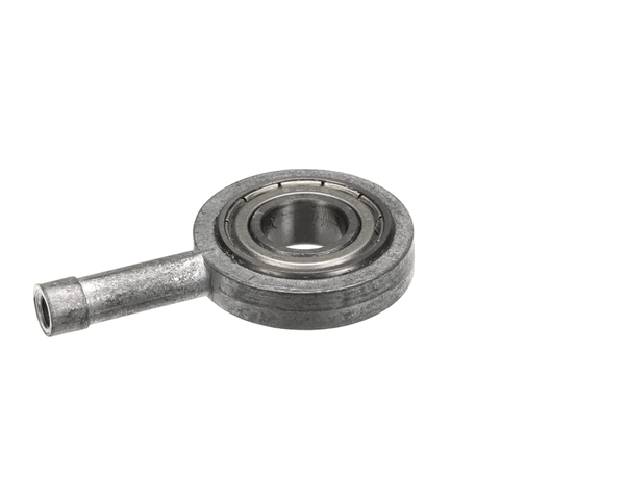

Gaylord 10237 Yoke and Bearing Assembly
Part #10237
SKU:
Regular price
$112.48
Regular price
Sale price
$112.48
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Ordery by 3:00 PM EST for same business day shipping
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW
- Yoke and bearing assembly for Gaylord ventilator damper actuator linkage
- Connects the actuator motor to the damper shaft and allows smooth rotation
- OEM replacement for Gaylord Part# GAY10237
- Genuine Gaylord component engineered for the original actuator mounting
Details
The Gaylord Yoke and Bearing Assembly (Part# 10237) is a genuine replacement linkage component for the damper actuator system on Gaylord commercial kitchen ventilators. The yoke connects the actuator motor to the damper shaft, while the integrated bearing supports that connection and allows the shaft to rotate smoothly as the damper opens and closes between fan and wash modes.
This assembly absorbs the mechanical load every time the damper cycles, and the bearing surface wears down gradually from that repeated motion combined with exposure to grease-laden air and moisture from wash-down cycles. As wear progresses, the yoke can develop play or the bearing can bind, causing the damper to move sluggishly, stick partway open or closed, or make grinding or squealing noises during operation -- symptoms that point directly to this assembly rather than the actuator motor itself.
Replacement should be handled by a qualified ventilation technician. De-energize the control cabinet and actuator circuit before accessing the damper linkage, then disconnect the actuator motor from the existing yoke and remove the worn assembly from the damper shaft. Install the new yoke and bearing assembly, securing it to the shaft and reconnecting the actuator motor in its original position. Cycle the damper through a full open-close range manually or via the control panel to confirm smooth, quiet operation before closing out the repair.
Read more...
This assembly absorbs the mechanical load every time the damper cycles, and the bearing surface wears down gradually from that repeated motion combined with exposure to grease-laden air and moisture from wash-down cycles. As wear progresses, the yoke can develop play or the bearing can bind, causing the damper to move sluggishly, stick partway open or closed, or make grinding or squealing noises during operation -- symptoms that point directly to this assembly rather than the actuator motor itself.
Replacement should be handled by a qualified ventilation technician. De-energize the control cabinet and actuator circuit before accessing the damper linkage, then disconnect the actuator motor from the existing yoke and remove the worn assembly from the damper shaft. Install the new yoke and bearing assembly, securing it to the shaft and reconnecting the actuator motor in its original position. Cycle the damper through a full open-close range manually or via the control panel to confirm smooth, quiet operation before closing out the repair.
Product Specs
-
