Turbochef

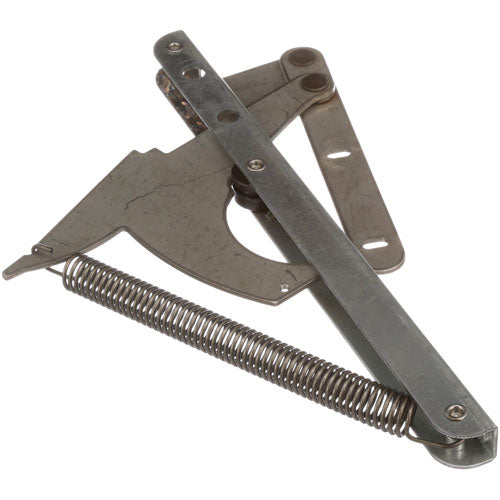

Turbochef NGC-1572 Door Hinge and Spring Assembly, Left Hand
Part #NGC-1572
SKU: 100373
Regular price
$179.99
Regular price
$251.62 USD
Sale price
$179.99
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Introducing our Left Hinge for Turbochef, Part # NGC-1572. This hinge is crafted to offer robust support and effortless operation for your Turbochef equipment's door, facilitating easy access and dependable functionality.
Details
This quality replacement Door Hinge and Spring Assembly for the left-hand side is designed for TurboChef NGC and Tornado countertop rapid-cook ovens, delivering the precise spring tension and pivot geometry these high-speed models require for reliable door sealing and microwave containment. The assembly integrates a heavy-duty pivot pin, spring pack, and mounting bracket machined to tolerances, ensuring the door swings smoothly, closes with uniform force, and maintains proper alignment against the cavity gasket throughout its service life. Selecting the quality left-hand assembly prevents misalignment issues that arise from aftermarket substitutes with incorrect spring rates or mounting geometries.
In the demanding pace of commercial kitchens, the NGC and Tornado door is subjected to thousands of open-close cycles per week. The hinge spring fatigues progressively, causing the door to sag, resist full closure, or bounce open slightly after closing—all conditions that degrade the gasket seal, allow microwave energy leakage, and increase cook time variability. A broken or fully fatigued spring can cause the door to fall open unexpectedly, risking operator injury and immediate oven shutdown via the interlock circuit. Replacing the left-hand hinge and spring assembly restores full door closing force, re-establishes the gasket compression seal, and eliminates microwave containment risk.
Installation requires removing the door from the oven body to access the left-hand hinge pin; the spring is under compression, so controlled disassembly per the TurboChef service manual is essential to prevent injury. Inspect the mating hinge socket on the oven frame for wear or elongation and replace the frame bracket if damaged. This assembly should be replaced whenever noticeable door sag, uneven gap at the gasket, or spring noise is observed, and should always be serviced in parallel with the right-hand hinge assembly to maintain balanced door alignment. Follow up with a microwave leakage test and door gasket inspection after installation.
Read more...
In the demanding pace of commercial kitchens, the NGC and Tornado door is subjected to thousands of open-close cycles per week. The hinge spring fatigues progressively, causing the door to sag, resist full closure, or bounce open slightly after closing—all conditions that degrade the gasket seal, allow microwave energy leakage, and increase cook time variability. A broken or fully fatigued spring can cause the door to fall open unexpectedly, risking operator injury and immediate oven shutdown via the interlock circuit. Replacing the left-hand hinge and spring assembly restores full door closing force, re-establishes the gasket compression seal, and eliminates microwave containment risk.
Installation requires removing the door from the oven body to access the left-hand hinge pin; the spring is under compression, so controlled disassembly per the TurboChef service manual is essential to prevent injury. Inspect the mating hinge socket on the oven frame for wear or elongation and replace the frame bracket if damaged. This assembly should be replaced whenever noticeable door sag, uneven gap at the gasket, or spring noise is observed, and should always be serviced in parallel with the right-hand hinge assembly to maintain balanced door alignment. Follow up with a microwave leakage test and door gasket inspection after installation.
Product Specs
Left Hinge
SKU |
100373 |
-
