Turbochef

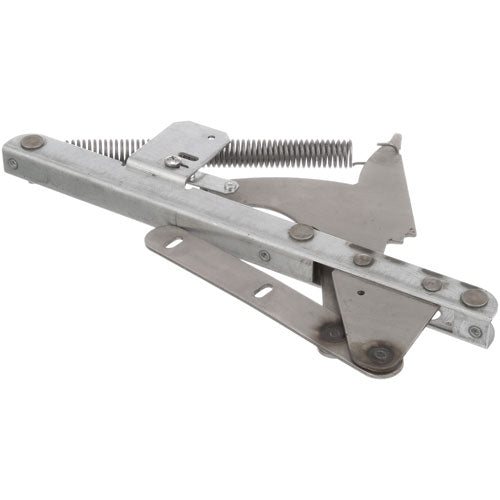

Hinge - Right For Turbochef Part# NGC-1573
Part #NGC-1573
SKU: 100372
Regular price
$200.03
Regular price
Sale price
$200.03
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Introducing our Right Hinge for Turbochef, Part # NGC-1573. This hinge is designed to provide sturdy support and smooth operation for your equipment's door, ensuring convenient access and reliable performance.
Details
This quality replacement Right-Hand Door Hinge provides the primary right-side pivot and load support for the door assembly of TurboChef NGC, Tornado, or HHB ovens, working as a matched pair with the left-hand hinge to maintain precise door alignment, uniform gasket compression, and reliable closure against the cavity frame throughout the oven's service life. The right hinge bears a shared portion of the door panel's weight and the closing force applied by operators, and its replacement-specified pivot geometry ensures the door moves through its full arc without binding or misalignment that could stress the door gasket or interlock switch actuators. As a handed component, the right hinge has a specific mounting orientation that must be matched to the oven model's right-side hinge pocket.
Right-hinge wear patterns mirror those of the left hinge—pivot pin elongation, mounting flange fatigue, and corrosion—but the right hinge may experience accelerated wear in ovens where operators habitually pull the door to the right or if the oven is positioned such that the door is loaded unevenly during heavy use. Symptoms include a door that fails to align with the latch receiver, a gap at the right edge of the door gasket, elevated microwave leakage on the right door perimeter, and grinding or clicking from the pivot point during door movement. Replacing the right hinge restores symmetric door support, uniform gasket compression across the full door perimeter, and smooth door travel from fully open to the latched position.
Installation follows the same procedure as the left hinge—door removal, pivot pin extraction, and mounting flange torque to specification—and should ideally be performed simultaneously with left hinge replacement to renew the complete hinge pair in one service event. After installation, cycle the door through multiple open/close operations to verify smooth movement and positive latching before conducting a door gasket compression check. Measure microwave leakage at the full door perimeter post-installation to confirm both the right and left gasket seal zones are within FCC limits. Complement hinge replacement with door receiver assembly and door switch inspection to complete a full door-system overhaul.
Read more...
Right-hinge wear patterns mirror those of the left hinge—pivot pin elongation, mounting flange fatigue, and corrosion—but the right hinge may experience accelerated wear in ovens where operators habitually pull the door to the right or if the oven is positioned such that the door is loaded unevenly during heavy use. Symptoms include a door that fails to align with the latch receiver, a gap at the right edge of the door gasket, elevated microwave leakage on the right door perimeter, and grinding or clicking from the pivot point during door movement. Replacing the right hinge restores symmetric door support, uniform gasket compression across the full door perimeter, and smooth door travel from fully open to the latched position.
Installation follows the same procedure as the left hinge—door removal, pivot pin extraction, and mounting flange torque to specification—and should ideally be performed simultaneously with left hinge replacement to renew the complete hinge pair in one service event. After installation, cycle the door through multiple open/close operations to verify smooth movement and positive latching before conducting a door gasket compression check. Measure microwave leakage at the full door perimeter post-installation to confirm both the right and left gasket seal zones are within FCC limits. Complement hinge replacement with door receiver assembly and door switch inspection to complete a full door-system overhaul.
Product Specs
Right Hinge
Warranty |
120-day warranty |
SKU |
100372 |
-
