• Picture of Hose Kit, Gas - 1/2" X 36 for Dormont Part# 1650KIT36
1 1
OEM

Dormont

Dormont 1650KIT36 1/2" x 36" Gas Connector Kit
Part #1650KIT36

Availability
$187.00
$187.00
SHIPPING
Order by 3:00 PM EST for same business day shipping
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

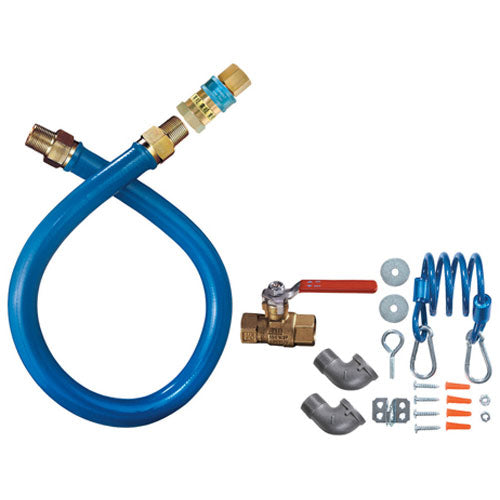

  • Complete 36" moveable gas connector kit for commercial kitchen equipment with 1/2" NPT gas connections — includes Blue Hose®, SnapFast® quick disconnect, full port valve, two 90° elbows, and restraining cable with all mounting hardware
  • Dormont Blue Hose® features corrugated 304 stainless steel inner construction with tight-weave stainless steel braid and antimicrobial PVC coating; rated for 68,000 BTU/hr minimum flow capacity
  • SnapFast® one-handed quick disconnect allows single-hand connection/disconnection in tight spaces; built-in thermal shutoff automatically cuts gas flow if internal temperature exceeds 350°F
  • NSF certified, CSA C/US certified, and Made in USA; backed by Dormont's lifetime warranty on the hose
View full details

Details

The Dormont 1650KIT36 is a complete deluxe gas connector kit for commercial kitchen equipment with 1/2" gas supply connections. The kit centers on Dormont's Blue Hose® — a corrugated 304 stainless steel tube wrapped in tight-weave stainless steel braid and finished with an antimicrobial PVC coating that slows the growth of bacteria, mold, and mildew on the connector surface. The stainless braid construction allows this hose to be safely used with caster-mounted equipment that rolls away from the wall for cleaning and maintenance, unlike standard residential-grade connectors that are not rated for repeated movement. The total installed length of the assembly is 36", making it well suited for installations where equipment sits closer to the gas stub or where a shorter reach is needed to keep the hose properly supported and off the floor.

The SnapFast® quick disconnect included in this kit is Dormont's exclusive one-handed design — engineered to connect and disconnect with a single hand, making it practical in the cramped spaces behind commercial cooking equipment. A pull of the operating ring disconnects gas flow instantly for safe maintenance; reconnection is just a push and a click. An internal thermal shutoff provides an additional safety layer by automatically closing gas flow if the fitting temperature reaches 350°F. The kit also includes a full port ball valve, two 1/2" 90° street elbows for routing flexibility, and Stress Guard® rotational end fittings that reduce installation stress and prevent hose kinking.

The restraining cable and all mounting hardware are included — a restraining device is required by most commercial kitchen codes and local AHJ inspectors throughout the United States. The 1650KIT36 is rated for indoor use only and is NSF certified and CSA C/US certified for commercial foodservice applications. Dormont backs the Blue Hose® with a lifetime warranty. For installations requiring more reach, the Dormont 1650KIT48 is the equivalent kit at 48" length, and the 1675KIT36 is the same kit in 3/4" diameter. This kit is made in the USA.
Read more...

Product Specs

Warranty

120-day warranty

SKU

125047
