Cleveland
Ignition Module For Cleveland Part# CK4533053
Part #CK4533053
SKU: 100443
Regular price
$167.31
Regular price
Sale price
$167.31
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Order by 3:00 PM EST for same-day shipping
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

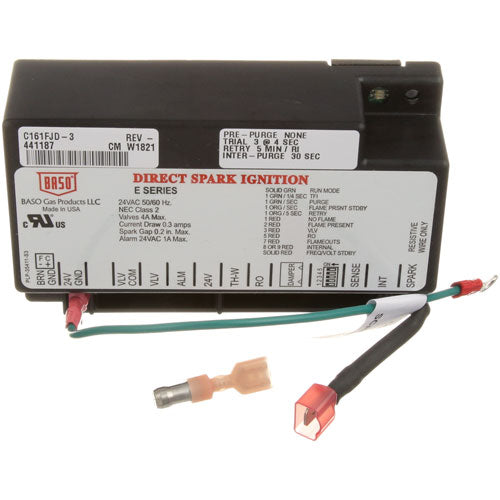

Introducing our 24V Direct Spark Ignition Control Module for Cleveland, part number CK4533053.
Details
The Ignition Module (Part# CK4533053) is a Cleveland-compatible replacement ignition module for use in Cleveland commercial gas-fired steamer and cooking equipment. The ignition module is the electronic control device that generates the high-voltage spark required to ignite the pilot or main burner, and in many cases also monitors the flame signal to confirm successful ignition and maintain safe operation.
Ignition modules can fail due to age, moisture ingress, thermal stress, or the gradual degradation of internal components from the high-voltage and high-temperature environment near the burner assembly. A faulty ignition module typically manifests as a burner that fails to light, sparks continuously without establishing a flame, or successfully ignites but then shuts off prematurely due to a failure in the flame sensing circuit.
Ignition module replacement should be performed by a qualified gas appliance service technician with the gas supply shut off and the unit de-energized. Remove the old module from its mounting location, carefully disconnect the high-voltage ignition lead, gas valve wiring, and flame sensor connections. Install the new Ignition Module, reconnect all leads to their correct terminals, and restore gas and power. Cycle the ignition sequence and verify that the spark is consistent, the burner lights reliably, and the flame is held without nuisance shutdowns.
Read more...
Ignition modules can fail due to age, moisture ingress, thermal stress, or the gradual degradation of internal components from the high-voltage and high-temperature environment near the burner assembly. A faulty ignition module typically manifests as a burner that fails to light, sparks continuously without establishing a flame, or successfully ignites but then shuts off prematurely due to a failure in the flame sensing circuit.
Ignition module replacement should be performed by a qualified gas appliance service technician with the gas supply shut off and the unit de-energized. Remove the old module from its mounting location, carefully disconnect the high-voltage ignition lead, gas valve wiring, and flame sensor connections. Install the new Ignition Module, reconnect all leads to their correct terminals, and restore gas and power. Cycle the ignition sequence and verify that the spark is consistent, the burner lights reliably, and the flame is held without nuisance shutdowns.
Product Specs
24V Direct Spark Ignition Control Module
Johnson # G760Bad-1 ( Discontinued) Now Baso
Baso Black Module Bg1100Maak-1G
0 Pre-Purge
3 Trials @ 5 Min Intervals
4 Sec Retry
Includes Rajah Spark Adaptor And Instructions.
Johnson # G760Bad-1 ( Discontinued) Now Baso
Baso Black Module Bg1100Maak-1G
0 Pre-Purge
3 Trials @ 5 Min Intervals
4 Sec Retry
Includes Rajah Spark Adaptor And Instructions.
Warranty |
120-day warranty |
SKU |
100443 |
-
