Blodgett
Ignitor for Blodgett Part# BL17460
Part #BL17460
SKU: 133947
Regular price
$181.57
Regular price
Sale price
$181.57
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Order by 3:00 PM EST for same business day shipping
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

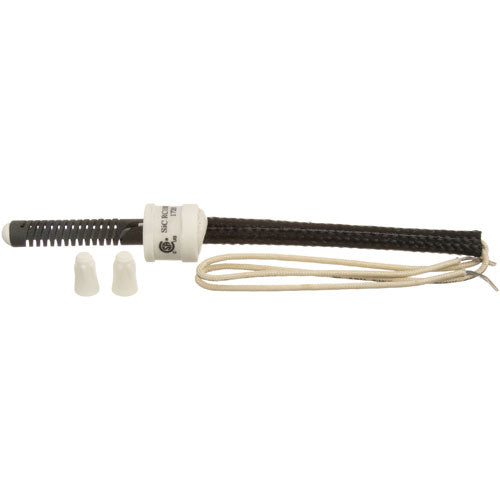

Ignitor for Blodgett Part# BL17460
Details
The Ignitor for Blodgett Part# BL17460 is a compatible aftermarket replacement ignition control module for use in Blodgett commercial convection ovens, deck ovens, and combination cooking equipment. The ignition control is the electronic module that manages the automatic lighting sequence for Blodgett gas ovens, controlling the spark igniter or glow bar, monitoring for flame presence through the sensing circuit, and coordinating gas valve operation to safely light and sustain the burner.
Modern Blodgett gas oven ignition controls execute a timed trial-for-ignition sequence: the control opens the gas valve, activates the igniter, monitors the flame sensor, and confirms burner ignition within a programmed time window. If ignition is not confirmed within the trial period, the control shuts down the gas valve and locks out the ignition circuit as a safety measure.
Symptoms of a failing ignition control include the oven failing to light after a normal trial period, the oven locking out and requiring manual reset before reattempting ignition, the burner lighting but cycling off prematurely, or intermittent ignition that creates operational inconsistency. These symptoms may also be caused by related components such as the flame sensor or igniter, which should be inspected before replacing the ignition control.
Ignition control replacement should be performed by a qualified gas appliance service technician. Shut off gas and electrical supply to the oven. Document and disconnect the wiring harness from the control module, noting terminal designations. Remove the module from its mounting, install the replacement, reconnect wiring per the terminal diagram, and test the full ignition sequence under normal operating conditions.
This compatible aftermarket replacement ignition control module is matched to the gas type, igniter type, and operational sequence specified for Blodgett gas equipment, providing reliable automatic ignition, safe lockout performance, and a direct replacement for the original control.
Read more...
Modern Blodgett gas oven ignition controls execute a timed trial-for-ignition sequence: the control opens the gas valve, activates the igniter, monitors the flame sensor, and confirms burner ignition within a programmed time window. If ignition is not confirmed within the trial period, the control shuts down the gas valve and locks out the ignition circuit as a safety measure.
Symptoms of a failing ignition control include the oven failing to light after a normal trial period, the oven locking out and requiring manual reset before reattempting ignition, the burner lighting but cycling off prematurely, or intermittent ignition that creates operational inconsistency. These symptoms may also be caused by related components such as the flame sensor or igniter, which should be inspected before replacing the ignition control.
Ignition control replacement should be performed by a qualified gas appliance service technician. Shut off gas and electrical supply to the oven. Document and disconnect the wiring harness from the control module, noting terminal designations. Remove the module from its mounting, install the replacement, reconnect wiring per the terminal diagram, and test the full ignition sequence under normal operating conditions.
This compatible aftermarket replacement ignition control module is matched to the gas type, igniter type, and operational sequence specified for Blodgett gas equipment, providing reliable automatic ignition, safe lockout performance, and a direct replacement for the original control.
Product Specs
Warranty |
120-day warranty |
SKU |
133947 |
-
