• Jackson 5700-003-22-89 Tube Jackson dishwasher part
1 1
OEM

Jackson

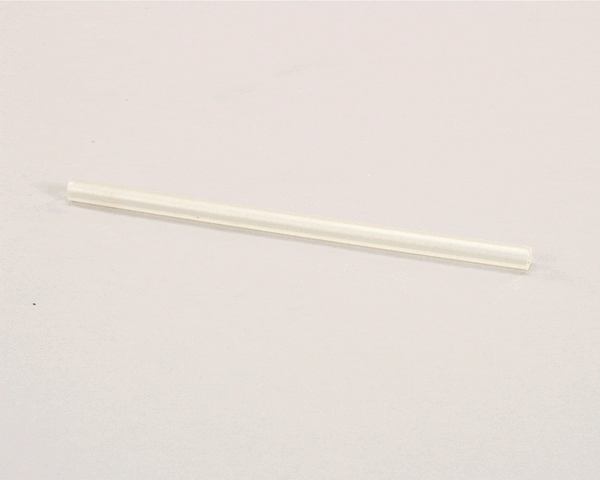

Jackson 5700-003-22-89 Tube, XL60, 3/16 in x 8 in, Tygoprene AN8AM
Part #5700-003-22-89

Availability
$11.70
$11.70
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

Jackson 5700-003-22-89 Tube is an original Jackson replacement component engineered for commercial dishwashers, supporting efficient operation, consistent results, and reduced downtime in busy kitchens.

View full details

Details

This is a replacement Tube (part# 5700-003-22-89) for Jackson XL60 equipment, sized at 3/16" inner diameter by 8" in length, constructed of Tygoprene AN8AM material, designed for Jackson commercial warewashing equipment, including undercounter dishwashers, door-type dishwashers, flight-type conveyor dishwashers, glass washers, and pot & pan washers. This specialized tube carries water, steam condensate, or detergent solution within the XL60 system at elevated temperatures and pressures.

Tygoprene AN8AM tubes deteriorate due to extreme temperature exposure in steam-based systems, detergent chemical reactions that soften or harden the material, and pressure cycling that creates stress cracks. Symptoms of tube failure include visible cracks or pinholes, significant reduction in flow rate, spray pattern degradation, chemical leakage at connection points, and steam escaping from damaged areas. Failure to replace a damaged tube permits water or detergent loss that reduces cleaning effectiveness, creates steam hazards to personnel, allows equipment performance degradation, and may force system shutdown.

Installation requires disassembling the affected tube connection points and is typically performed by qualified Jackson technicians familiar with XL60 equipment design. The Tygoprene AN8AM tube is a direct fit replacement requiring only removal of barbed or threaded fittings at both ends using appropriate wrenches or pliers. When reinstalling, hand-tighten all connections first before final wrench tightening to avoid excessive compression stress on the soft tube material. Test the system at low temperature and pressure initially before returning to full XL60 operational parameters.
Read more...

Product Specs

Phase

1-Phase

Warranty

90-day warranty

SKU

146793
