Jackson

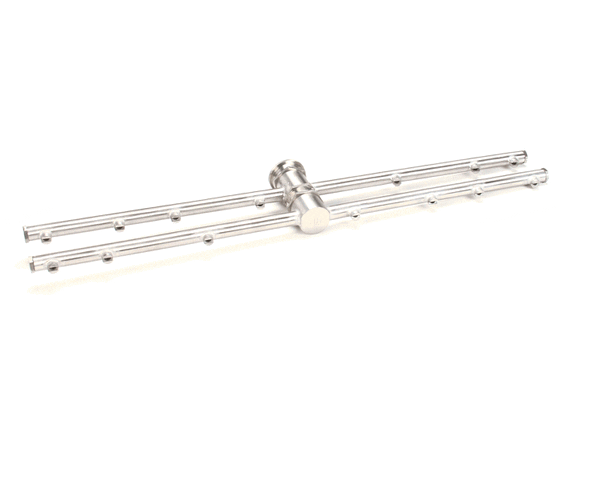

Jackson 5700-003-94-00 A-Ceramic Lower Wash Arm Assembly
Part #5700-003-94-00
SKU: 146769
Regular price
$958.27
Regular price
Sale price
$958.27
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Jackson 5700-003-94-00 A-Ceramic Lower Wash Arm Assembly is an original Jackson replacement component engineered for commercial dishwashers, supporting efficient operation, consistent results, and reduced downtime in busy kitchens.
Details
The Jackson 5700-003-94-00 A-Ceramic Lower Wash Arm Assembly is an OEM replacement wash spray arm used in Jackson undercounter and door-type dishwashers to distribute high-pressure wash water with detergent across the lower basket area. This ceramic-tipped assembly includes the main arm structure, spray nozzles, and rotating bearing that allows the arm to spin from the force of exiting water jets, providing thorough coverage of all dish and glassware surfaces.
Ceramic lower wash arms can degrade through nozzle clogging from mineral deposits and detergent buildup, arm warping or cracking from high-temperature water exposure and mechanical impact, bearing wear allowing excess lateral movement reducing spray pattern accuracy, or ceramic tip chipping reducing spray effectiveness. Failure symptoms include uneven cleaning patterns with some areas of the basket receiving poor water coverage, visible debris or mineral deposits in the spray nozzles, reduced or uneven water spray pattern, or the arm appearing cracked or warped. Inadequate lower wash action allows food particles to remain on dishware and can result in incomplete sanitization affecting food safety and customer satisfaction.
The 5700-003-94-00 wash arm assembly replacement requires removing the lower basket and accessing the arm mounting point typically located at the bottom center of the tank. Technicians carefully unscrew the old arm and rotate out the spray arm assembly, then install the new ceramic arm and verify it spins freely with light finger resistance. After installation, run the dishwasher empty through a complete wash cycle and observe the spray pattern from all nozzles to confirm even coverage across the tank bottom and proper arm rotation speed.
Read more...
Ceramic lower wash arms can degrade through nozzle clogging from mineral deposits and detergent buildup, arm warping or cracking from high-temperature water exposure and mechanical impact, bearing wear allowing excess lateral movement reducing spray pattern accuracy, or ceramic tip chipping reducing spray effectiveness. Failure symptoms include uneven cleaning patterns with some areas of the basket receiving poor water coverage, visible debris or mineral deposits in the spray nozzles, reduced or uneven water spray pattern, or the arm appearing cracked or warped. Inadequate lower wash action allows food particles to remain on dishware and can result in incomplete sanitization affecting food safety and customer satisfaction.
The 5700-003-94-00 wash arm assembly replacement requires removing the lower basket and accessing the arm mounting point typically located at the bottom center of the tank. Technicians carefully unscrew the old arm and rotate out the spray arm assembly, then install the new ceramic arm and verify it spins freely with light finger resistance. After installation, run the dishwasher empty through a complete wash cycle and observe the spray pattern from all nozzles to confirm even coverage across the tank bottom and proper arm rotation speed.
Product Specs
Warranty |
90-day warranty |
SKU |
146769 |
-
