Jackson

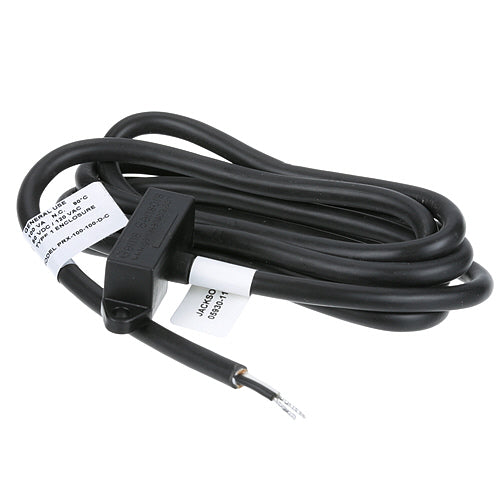

Magnetic Reed Switch for Jackson Part# 5930-111-68-44
Part #5930-111-68-44
SKU: 132841
Regular price
$197.49
Regular price
Sale price
$197.49
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Magnetic Reed Switch for Jackson Part# 5930-111-68-44
Details
The magnetic reed switch normally closed (part number 5930-111-68-44) is an OEM replacement sensor component designed for Jackson undercounter dishwashers, door-type dishwashers, glass washers, and pot & pan washers. This contactless magnetic switch detects magnet presence to monitor equipment states such as lid position or component status, maintaining electrical continuity in the circuit until a magnet activates and breaks the connection. The normally closed configuration allows circuit operation until the magnet is detected.
Magnetic reed switches can fail due to seal degradation allowing moisture intrusion into the glass switch tube, magnet loss or displacement from the actuator, or internal contact corrosion in the protected environment. Failure symptoms include switches that fail to open even when the magnet is present, switches that remain open when the magnet is absent, or intermittent switching behavior. A failed normally closed magnetic switch can prevent proper equipment status detection, disable safety interlocks, or cause equipment to operate improperly based on incorrect state information.
Installation requires positioning the switch in close proximity to the actuating magnet, typically within 0.5 inches. Qualified technicians must verify proper alignment between the switch and magnet and ensure the switch is securely mounted with the magnet positioned consistently as equipment cycles. Testing involves confirming the switch breaks continuity when the magnet is near and maintains continuity when removed. Maintenance includes checking magnet position annually, verifying seal integrity around the switch housing, and testing operation periodically to ensure reliable detection.
Read more...
Magnetic reed switches can fail due to seal degradation allowing moisture intrusion into the glass switch tube, magnet loss or displacement from the actuator, or internal contact corrosion in the protected environment. Failure symptoms include switches that fail to open even when the magnet is present, switches that remain open when the magnet is absent, or intermittent switching behavior. A failed normally closed magnetic switch can prevent proper equipment status detection, disable safety interlocks, or cause equipment to operate improperly based on incorrect state information.
Installation requires positioning the switch in close proximity to the actuating magnet, typically within 0.5 inches. Qualified technicians must verify proper alignment between the switch and magnet and ensure the switch is securely mounted with the magnet positioned consistently as equipment cycles. Testing involves confirming the switch breaks continuity when the magnet is near and maintains continuity when removed. Maintenance includes checking magnet position annually, verifying seal integrity around the switch housing, and testing operation periodically to ensure reliable detection.
Product Specs
Warranty |
90-day warranty |
SKU |
132841 |
-
