Jackson

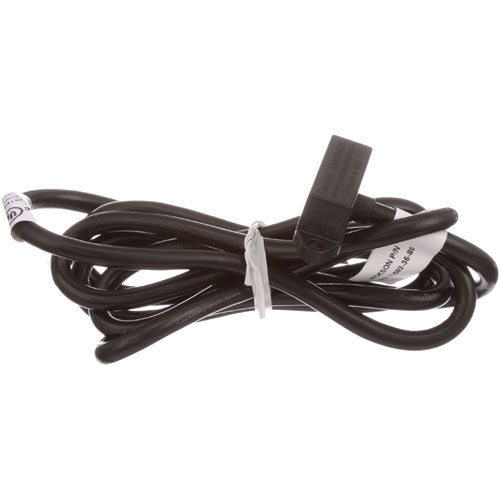

Magnetic Switch N.O. for Jackson Part# 59300023680
Part #59300023680
SKU: 132817
Regular price
$231.34
Regular price
Sale price
$231.34
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Magnetic Switch N.O. for Jackson Part# 59300023680
Details
The normally open magnetic switch (part number 59300023680) is a replacement sensor component designed for Jackson undercounter dishwashers, door-type dishwashers, glass washers, and pot & pan washers. This reed switch uses magnetic field detection to monitor equipment states such as lid position, pump operation, or chemical tank status, providing contactless switching that eliminates mechanical wear and extends component life. The normally open configuration keeps the circuit open until a magnet activates the switch.
Magnetic reed switches can fail due to seal degradation allowing moisture intrusion into the glass switch tube, magnet loss or displacement from the actuator, or internal contact corrosion in the protected environment. Failure symptoms include switches that fail to activate even when the magnet is present, switches that remain activated when the magnet is removed, or intermittent switching. A failed magnetic switch can prevent proper equipment status detection, disable safety interlocks, or cause equipment to operate improperly based on incorrect state information.
Installation requires positioning the switch in close proximity to the actuating magnet, typically within 0.5 inches. Qualified technicians must verify proper alignment between the switch and magnet and ensure the switch is securely mounted with the magnet positioned consistently as equipment cycles. Testing involves confirming the switch activates when the magnet is near and deactivates when removed. Maintenance includes checking magnet position annually, verifying seal integrity around the switch housing, and testing operation periodically to ensure reliable detection.
Read more...
Magnetic reed switches can fail due to seal degradation allowing moisture intrusion into the glass switch tube, magnet loss or displacement from the actuator, or internal contact corrosion in the protected environment. Failure symptoms include switches that fail to activate even when the magnet is present, switches that remain activated when the magnet is removed, or intermittent switching. A failed magnetic switch can prevent proper equipment status detection, disable safety interlocks, or cause equipment to operate improperly based on incorrect state information.
Installation requires positioning the switch in close proximity to the actuating magnet, typically within 0.5 inches. Qualified technicians must verify proper alignment between the switch and magnet and ensure the switch is securely mounted with the magnet positioned consistently as equipment cycles. Testing involves confirming the switch activates when the magnet is near and deactivates when removed. Maintenance includes checking magnet position annually, verifying seal integrity around the switch housing, and testing operation periodically to ensure reliable detection.
Product Specs
Warranty |
120-day warranty |
SKU |
132817 |
-
