Turbochef

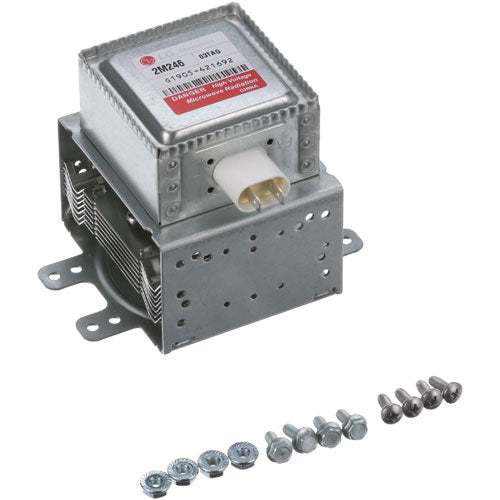

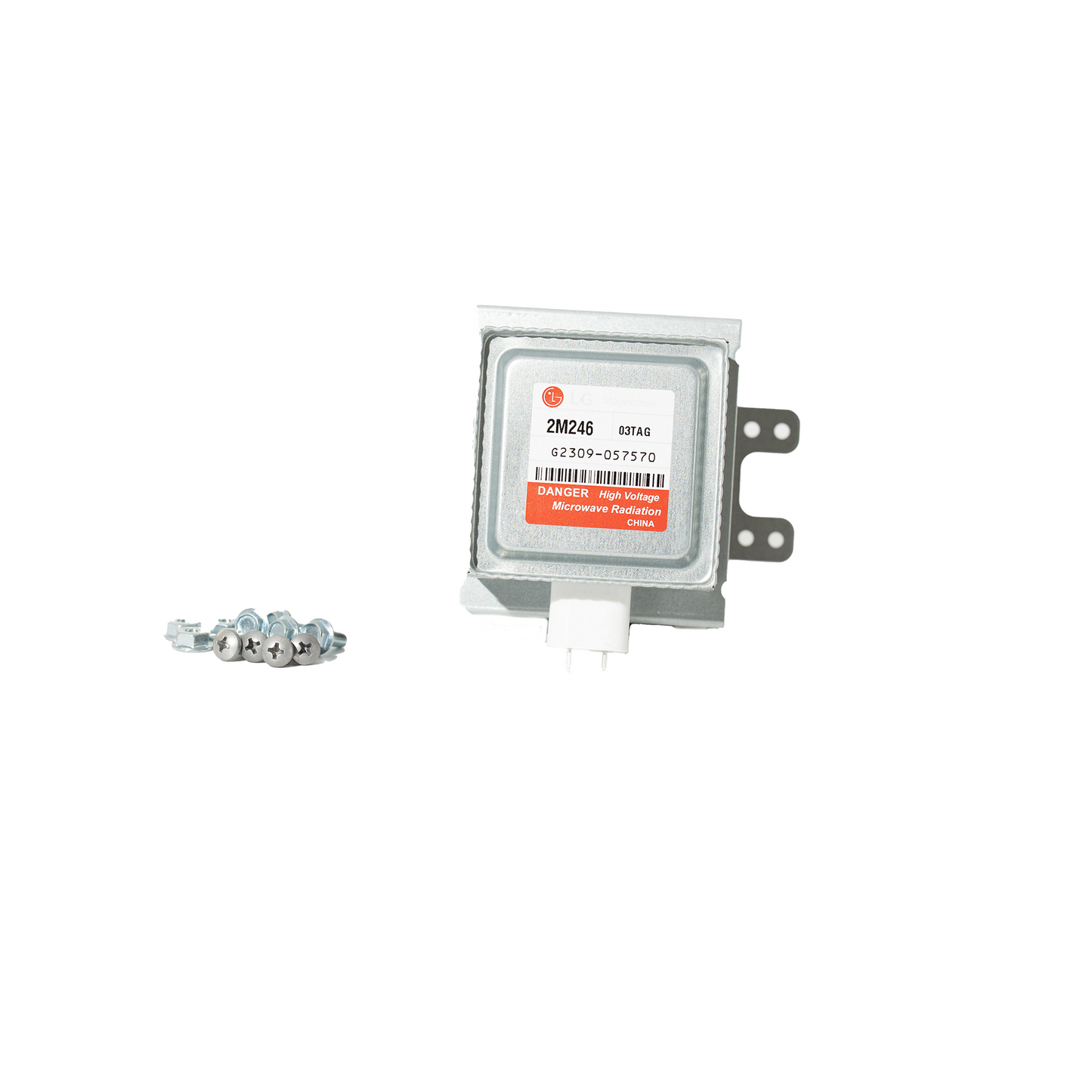

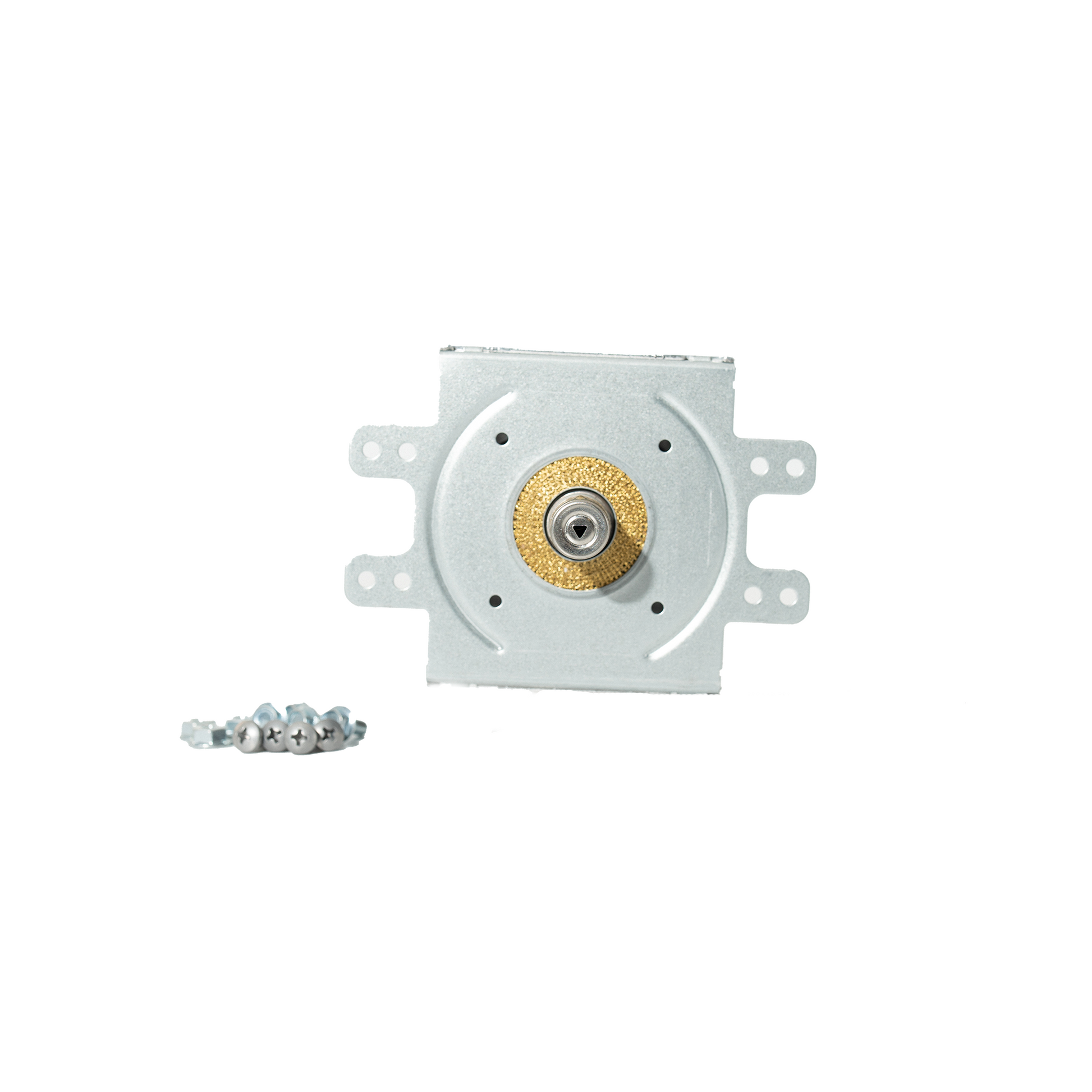

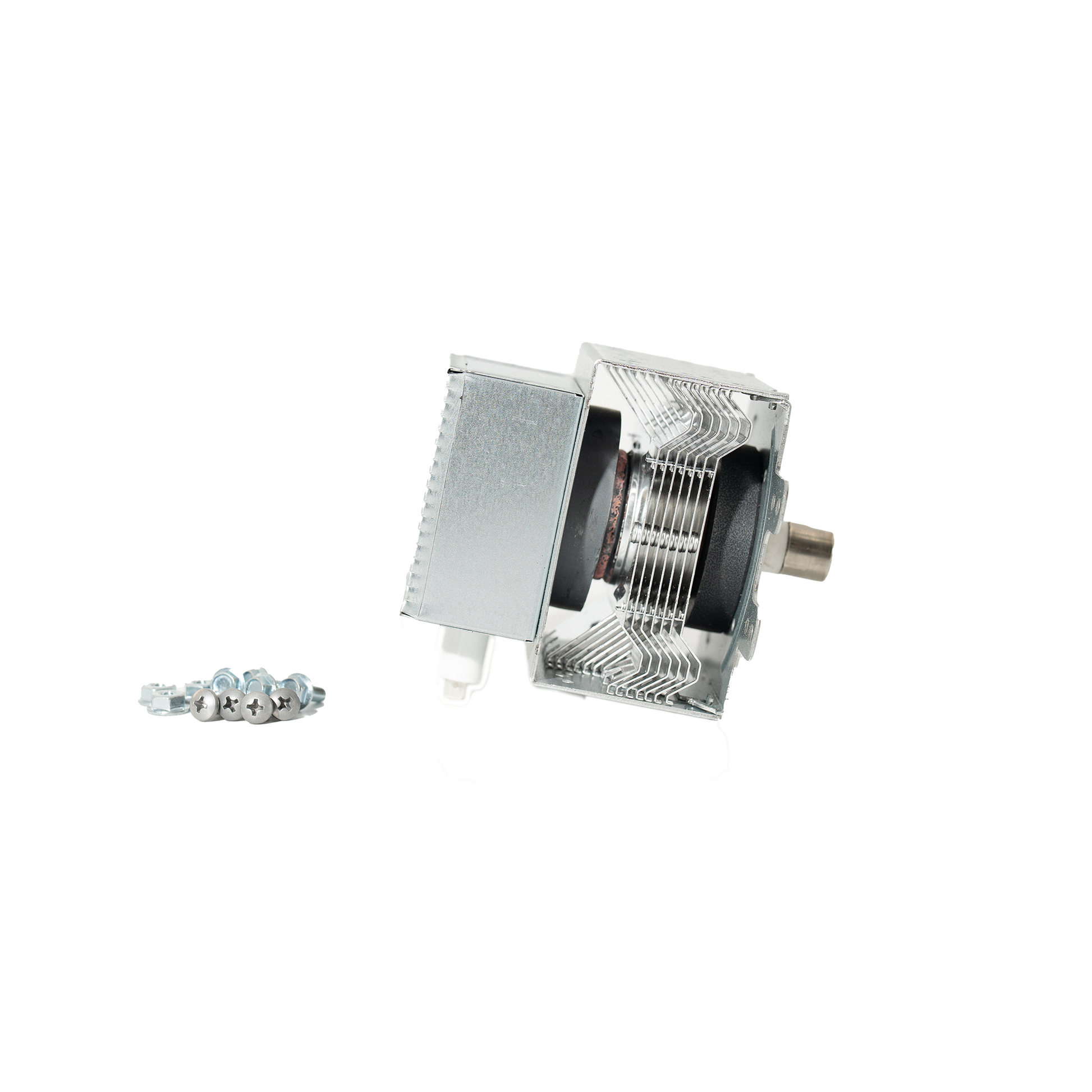

Turbochef NGC-3015 Magnetron
Part #NGC-3015
SKU: 100202
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
High-quality magnetron kit compatible with Turbochef ovens. Replaces part number NGC-3015 to restore microwave heating performance.
-
OEM-compatible replacement
-
Designed for select Turbochef models
-
Includes complete magnetron kit
Ideal for commercial kitchen service and repair.
Details
This genuine OEM replacement Magnetron is the factory-specified 2.4 GHz microwave generation source for TurboChef NGC and Tornado countertop rapid-cook ovens, providing the high-power microwave energy that—combined with impinged hot air from the jetplate system—enables the simultaneous heat transfer mechanism responsible for TurboChef's 10–15x cooking speed advantage over conventional convection ovens. The magnetron is driven by a high-voltage power supply circuit and emits microwave energy through the waveguide into the cook chamber at the precise power level TurboChef's recipe algorithms are calibrated to deliver. Specifying the OEM magnetron ensures the emission frequency, output power, flange dimensions, and filament characteristics are factory-matched to the NGC/Tornado's waveguide and high-voltage circuit design.
Magnetron failure in the NGC and Tornado manifests as a complete absence of microwave cooking function despite the oven powering up normally, dramatically extended cook times, or erratic cook results where microwave power is intermittent. The root causes include filament cathode depletion through normal service life, high-voltage circuit faults that stress the magnetron beyond its design envelope, thermal damage from inadequate cooling due to a failed fan, and physical damage to the antenna from arcing events caused by metal objects or damaged waveguide components in the cavity. Before replacing the magnetron, always diagnose the high-voltage supply circuit—including the filament transformer, capacitor, and diode—to ensure the root cause is the magnetron itself and not a supporting component that will destroy the new magnetron.
Magnetron replacement must be performed by a qualified technician with the oven de-energized and the high-voltage capacitor fully discharged—lethal voltages are present in the magnetron circuit even after power is removed until the capacitor is discharged. Mount the replacement magnetron to the waveguide flange with the specified torque to ensure the antenna is correctly centered in the waveguide aperture and the mounting gasket provides an effective microwave seal. After installation, verify magnetron output power using a calibrated load and measure microwave leakage at the door perimeter to confirm normal containment. Pair magnetron replacement with inspection of the waveguide, waveguide cover, filament transformer, capacitor, and diode to service the complete microwave generation system.
Read more...
Magnetron failure in the NGC and Tornado manifests as a complete absence of microwave cooking function despite the oven powering up normally, dramatically extended cook times, or erratic cook results where microwave power is intermittent. The root causes include filament cathode depletion through normal service life, high-voltage circuit faults that stress the magnetron beyond its design envelope, thermal damage from inadequate cooling due to a failed fan, and physical damage to the antenna from arcing events caused by metal objects or damaged waveguide components in the cavity. Before replacing the magnetron, always diagnose the high-voltage supply circuit—including the filament transformer, capacitor, and diode—to ensure the root cause is the magnetron itself and not a supporting component that will destroy the new magnetron.
Magnetron replacement must be performed by a qualified technician with the oven de-energized and the high-voltage capacitor fully discharged—lethal voltages are present in the magnetron circuit even after power is removed until the capacitor is discharged. Mount the replacement magnetron to the waveguide flange with the specified torque to ensure the antenna is correctly centered in the waveguide aperture and the mounting gasket provides an effective microwave seal. After installation, verify magnetron output power using a calibrated load and measure microwave leakage at the door perimeter to confirm normal containment. Pair magnetron replacement with inspection of the waveguide, waveguide cover, filament transformer, capacitor, and diode to service the complete microwave generation system.
Product Specs
Warranty |
90-day warranty |
SKU |
100202 |
-
