Turbochef
Magnetron Kit for Turbochef Part# TBCNGC3015
Part #TBCNGC3015
SKU: 128423
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

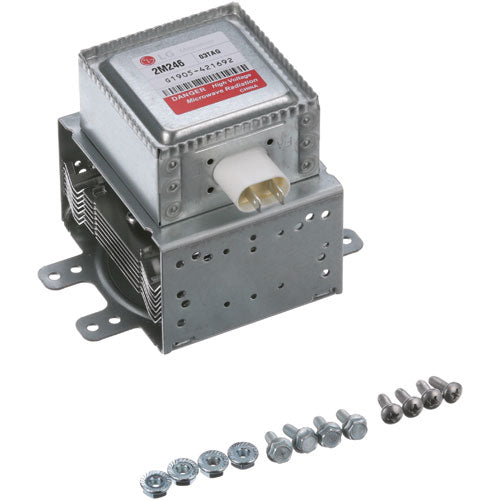

Magnetron Kit for Turbochef Part# TBCNGC3015
Details
This quality replacement Magnetron Kit provides the complete microwave generation assembly for TurboChef ovens, including the magnetron tube, mounting bracket, and all associated hardware required for a complete, single-event replacement that restores the oven's microwave cooking capability to factory specification. Supplying the magnetron with its dedicated mounting bracket and hardware ensures the antenna is positioned at the correct geometry relative to the waveguide aperture and that the bracket provides the thermal conduction path needed to transfer magnetron heat to the chassis for adequate cooling. Using the complete kit eliminates the risk of incorrect bracket fitment or missing hardware that can cause antenna misalignment, microwave containment faults, or inadequate thermal management of the replacement magnetron.
In addition to the magnetron failure modes described above—filament depletion, high-voltage circuit damage, thermal damage, and arcing—the magnetron kit is particularly valuable when the original mounting bracket has been damaged by arcing, corrosion, or physical impact during a cavity event, since a deformed bracket cannot position the replacement magnetron correctly even if the tube itself is undamaged. Kit-format replacement is also preferred for first-time technicians servicing a specific TurboChef model, as all mounting hardware is pre-selected and confirmed compatible, reducing the risk of assembly errors that could compromise microwave containment or magnetron longevity. Installing the complete kit restores full microwave output, correct waveguide coupling geometry, and adequate thermal management in a single service operation.
Kit installation requires the same high-voltage safety protocols as individual magnetron replacement—full de-energization, capacitor discharge, and verified absence of voltage before handling the magnetron circuit. Install the bracket first, confirm it seats flush against the chassis mounting surface, then mount the magnetron to the bracket and torque the waveguide flange screws in the star pattern specified in the service manual to ensure uniform gasket compression around the antenna aperture. After installation, perform a full operational test including a cook cycle timing verification and microwave leakage survey at the door perimeter and cavity seams. Complement kit installation with waveguide cover replacement and cavity cleaning to return the full microwave system to optimal condition.
Read more...
In addition to the magnetron failure modes described above—filament depletion, high-voltage circuit damage, thermal damage, and arcing—the magnetron kit is particularly valuable when the original mounting bracket has been damaged by arcing, corrosion, or physical impact during a cavity event, since a deformed bracket cannot position the replacement magnetron correctly even if the tube itself is undamaged. Kit-format replacement is also preferred for first-time technicians servicing a specific TurboChef model, as all mounting hardware is pre-selected and confirmed compatible, reducing the risk of assembly errors that could compromise microwave containment or magnetron longevity. Installing the complete kit restores full microwave output, correct waveguide coupling geometry, and adequate thermal management in a single service operation.
Kit installation requires the same high-voltage safety protocols as individual magnetron replacement—full de-energization, capacitor discharge, and verified absence of voltage before handling the magnetron circuit. Install the bracket first, confirm it seats flush against the chassis mounting surface, then mount the magnetron to the bracket and torque the waveguide flange screws in the star pattern specified in the service manual to ensure uniform gasket compression around the antenna aperture. After installation, perform a full operational test including a cook cycle timing verification and microwave leakage survey at the door perimeter and cavity seams. Complement kit installation with waveguide cover replacement and cavity cleaning to return the full microwave system to optimal condition.
Product Specs
Warranty |
90-day warranty |
SKU |
128423 |
-
