Alfa International
Meat Grinder Plate #22, 3/4" Holes, Hubless
Part #22 3/4 HBLS
SKU: 148638
Regular price
$67.09
Regular price
Sale price
$67.09
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Ships Direct from Manufacturer: Typically leaves the manufacturer’s warehouse within 2–3 business days
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW

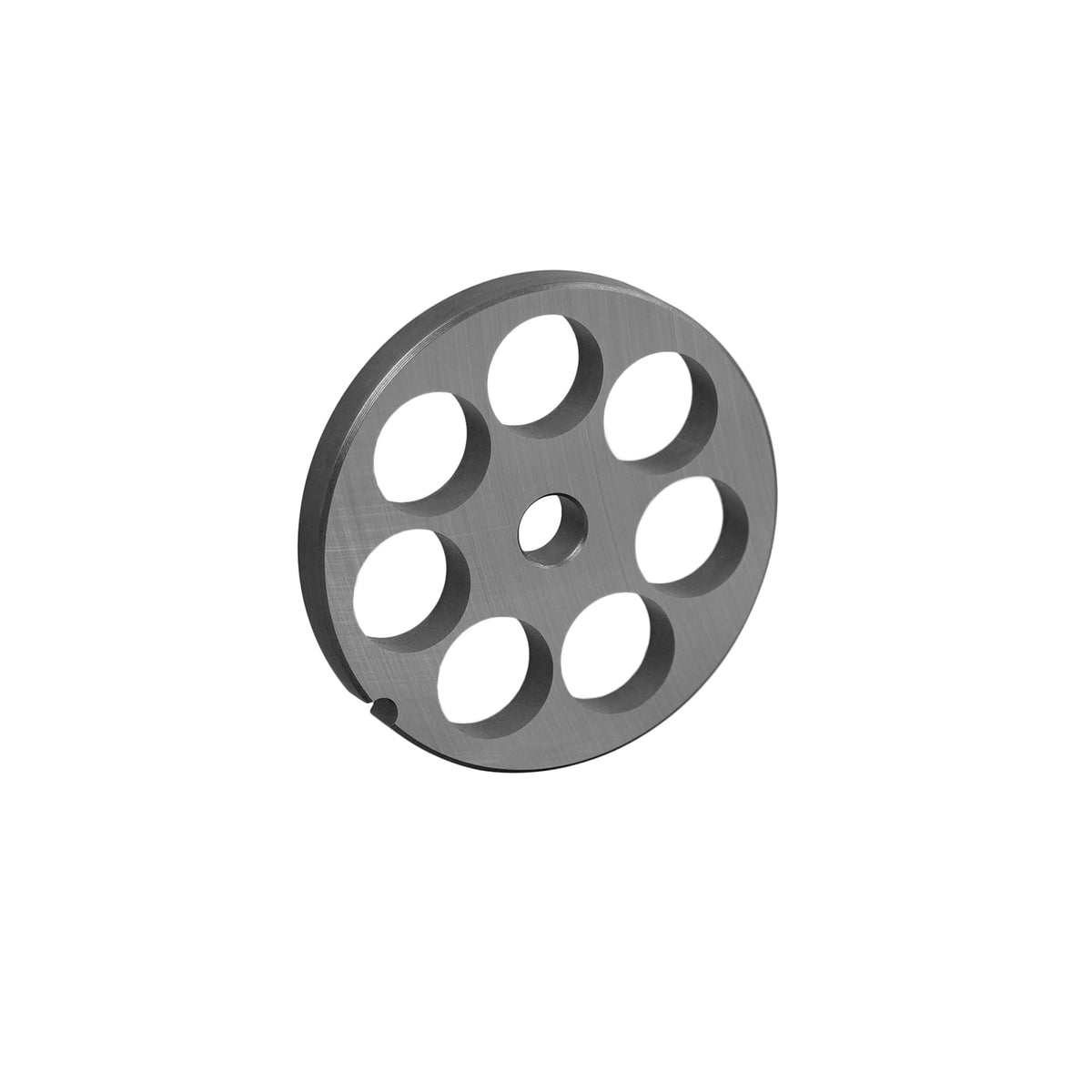

- Replacement #22 hubless meat grinder plate with 3/4" holes, Alfa part number 22 3/4 HBLS
- German-made L&W special carbon tool steel plate for a very coarse first grind of breaking down large pieces before a finer pass
- Fits Hobart 4822, 4822CE and E222 grinders and other #22 grinders
- Flat, reversible hubless face slips over the feed screw stud; flip it when one side dulls
Details
This #22 meat grinder plate is a hubless replacement plate with 3/4 inch (about 19 mm) holes for commercial meat grinders and mixer-grinders that take #22 size plates and knives, such as Hobart 4822, 4822CE and E222 grinders. The plate is the last stop in the grinding head: the knife shears meat against its face and the meat is pushed out through the holes, so the hole size sets the texture. The 3/4 inch holes give a very coarse first grind for breaking down large pieces before a finer pass. It is made in Germany by L&W from special carbon tool steel; the hubless face is reversible, so it can be flipped when one side dulls.
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly. That shows up as warm, mushy product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, fit the plate over the stud so it seats flat against the knife and the notch lines up with the key in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4822, 4822CE and E222 grinders. Confirm your model before ordering.
Read more...
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly. That shows up as warm, mushy product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, fit the plate over the stud so it seats flat against the knife and the notch lines up with the key in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4822, 4822CE and E222 grinders. Confirm your model before ordering.
Product Specs
Fits Models |
Hobart 4822
Hobart 4822CE
Hobart E222
|
SKU |
148638 |
