Alfa International

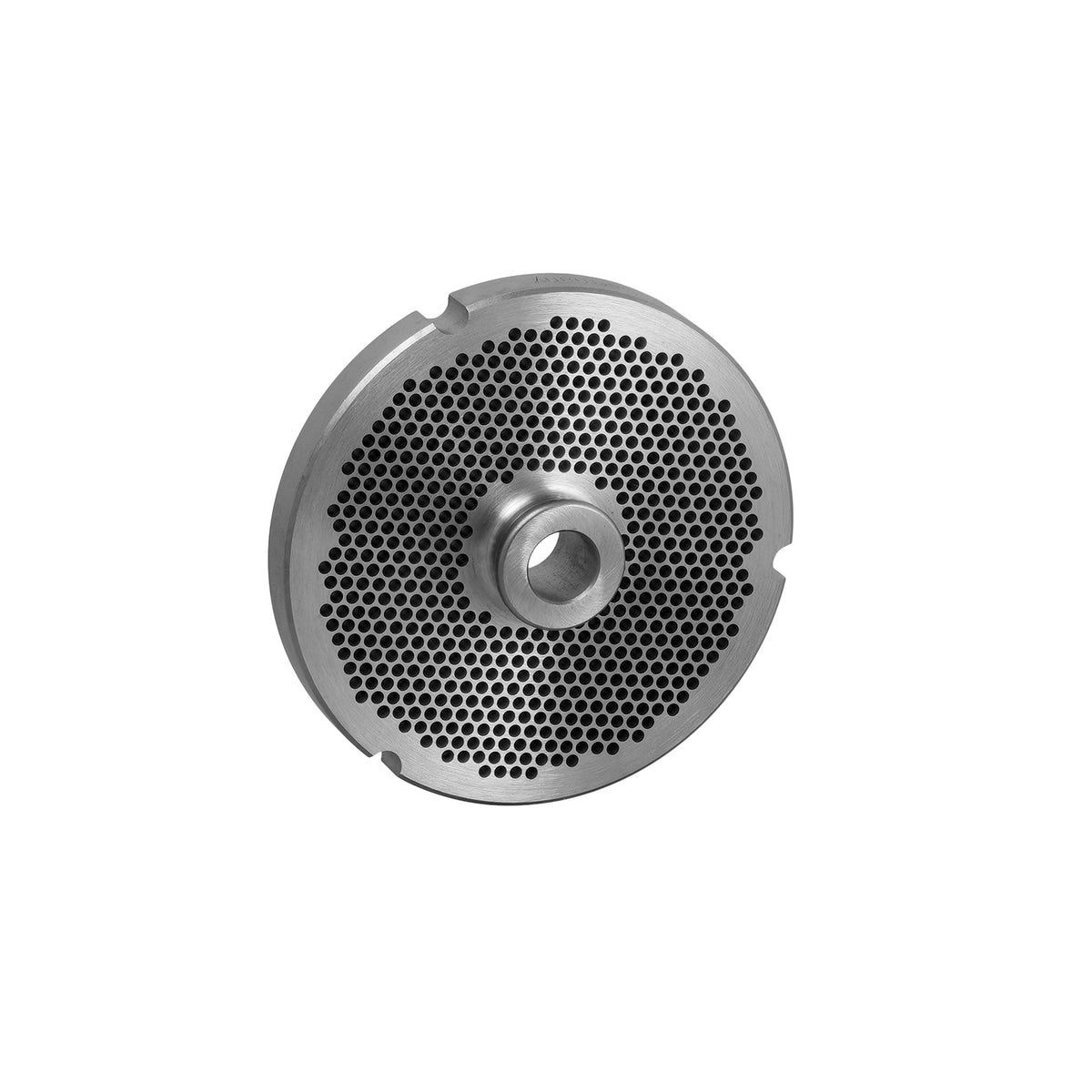

Meat Grinder Plate #32, 3/32" Holes, Hub, 3 Notch
Part #32 3/32 HUB
SKU: 148596
Regular price
$121.01
Regular price
Sale price
$121.01
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Ships Direct from Manufacturer: Typically leaves the manufacturer’s warehouse within 2–3 business days
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW
- Replacement #32 hub-style, 3 notch meat grinder plate with 3/32" holes, Alfa part number 32 3/32 HUB
- German-made L&W special carbon tool steel plate for an extra-fine grind of meat, sausage and emulsions
- Fits Hobart 4146, 4246, 4732, MG1532 and MG2032 grinders and other #32 grinders
- Center hub rides on the feed screw stud and the three notches lock the plate in the grinder head
Details
This #32 meat grinder plate is a hub-style, 3 notch replacement plate with 3/32 inch (about 2.5 mm) holes for commercial meat grinders and mixer-grinders that take #32 size plates and knives, such as Hobart #32 grinders used in supermarket meat departments and butcher shops. The plate is the last stop in the grinding head: the knife shears meat against its face and the meat is pushed out through the holes, so the hole size sets the texture. The 3/32 inch holes give a very fine grind for fine sausage, hot dogs and second or third grinds. It is made in Germany by L&W from special carbon tool steel and has a center hub that supports the end of the feed screw.
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly. Fine-hole plates like this one show wear first, with clogged holes, warm mushy product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, slide the plate on so the hub fits over the stud and the three notches line up with the keys in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4146, 4246, 4732, MG1532 and MG2032 grinders. Confirm your model before ordering.
Read more...
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly. Fine-hole plates like this one show wear first, with clogged holes, warm mushy product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, slide the plate on so the hub fits over the stud and the three notches line up with the keys in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4146, 4246, 4732, MG1532 and MG2032 grinders. Confirm your model before ordering.
Product Specs
Fits Models |
Hobart 4146
Hobart 4246
Hobart 4732
Hobart MG1532
Hobart MG2032
|
SKU |
148596 |
