Alfa International

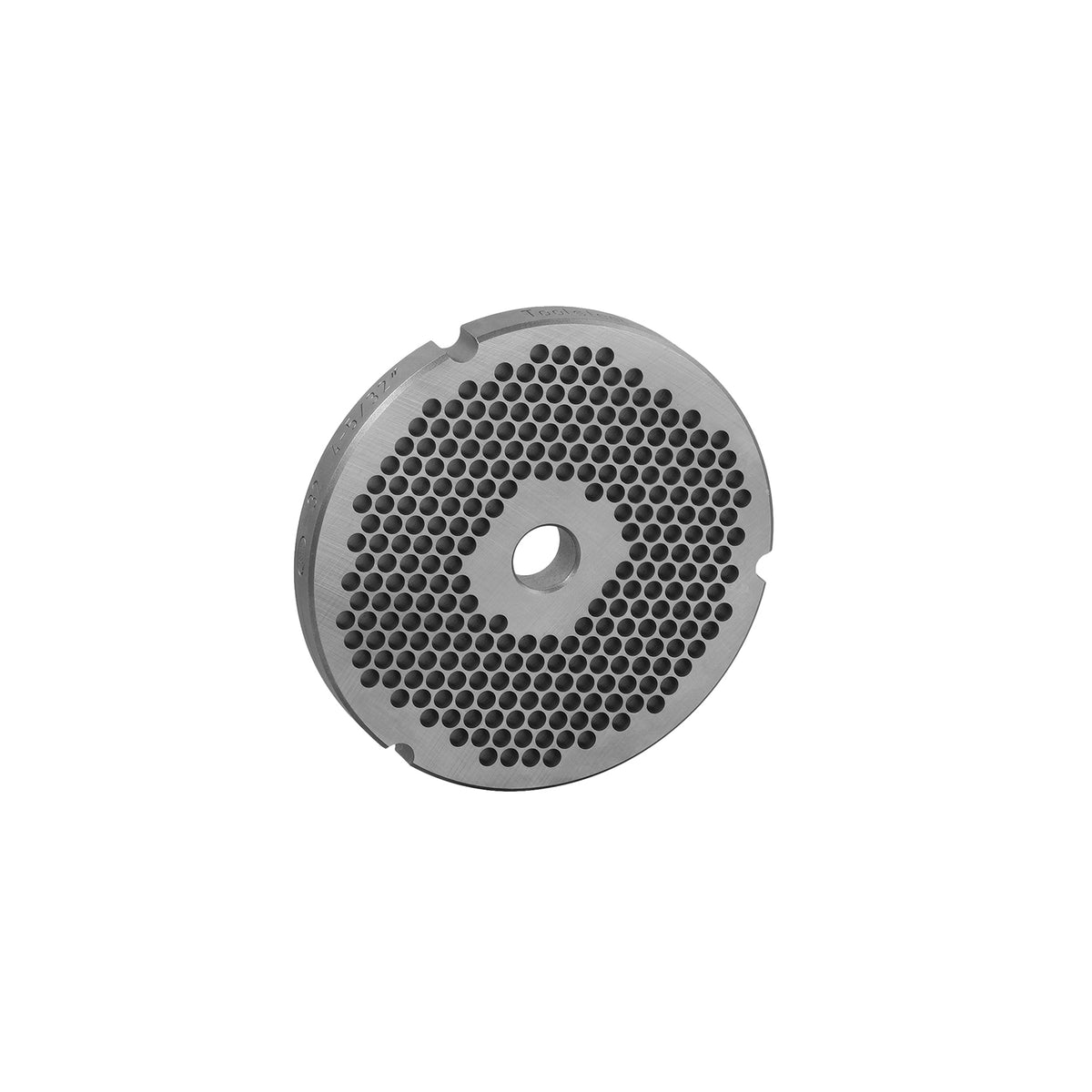

Meat Grinder Plate #32, 5/32" Holes, Hubless, 3 Notch
Part #32 5/32 HBLS
SKU: 148653
Regular price
$52.40
Regular price
Sale price
$52.40
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Ships Direct from Manufacturer: Typically leaves the manufacturer’s warehouse within 2–3 business days
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW
- Replacement #32 hubless, 3 notch meat grinder plate with 5/32" holes, Alfa part number 32 5/32 HBLS
- German-made L&W special carbon tool steel plate for a fine to medium grind of hamburger, sausage and chili meat
- Fits Hobart 4146, 4246, 4732, MG1532 and MG2032 grinders and other #32 grinders
- Flat, reversible hubless face slips over the feed screw stud and the three notches key it into the head
Details
This #32 meat grinder plate is a hubless, 3 notch replacement plate with 5/32 inch (about 4 mm) holes for commercial meat grinders and mixer-grinders that take #32 size plates and knives, such as Hobart 4146, 4246, 4732, MG1532 and MG2032 grinders. The plate is the last stop in the grinding head: the knife shears meat against its face and the meat is pushed out through the holes, so the hole size sets the texture. The 5/32 inch holes give a fine to medium grind for hamburger, sausage and chili meat. It is made in Germany by L&W from special carbon tool steel; the hubless face is reversible, so it can be flipped when one side dulls.
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly. Fine-hole plates like this one show wear first, with clogged holes, warm, mushy product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, fit the plate over the stud so it seats flat against the knife with the three notches lined up with the keys in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4146, 4246, 4732, MG1532 and MG2032 grinders. Confirm your model before ordering.
Read more...
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly. Fine-hole plates like this one show wear first, with clogged holes, warm, mushy product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, fit the plate over the stud so it seats flat against the knife with the three notches lined up with the keys in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4146, 4246, 4732, MG1532 and MG2032 grinders. Confirm your model before ordering.
Product Specs
Fits Models |
Hobart 4146
Hobart 4246
Hobart 4732
Hobart MG1532
Hobart MG2032
|
SKU |
148653 |
