Alfa International
Meat Grinder Plate #52, 1/8" Holes, Hub
Part #52 1/8 HUB
SKU: 148598
Regular price
$178.94
Regular price
Sale price
$178.94
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Ships Direct from Manufacturer: Typically leaves the manufacturer’s warehouse within 2–3 business days
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW

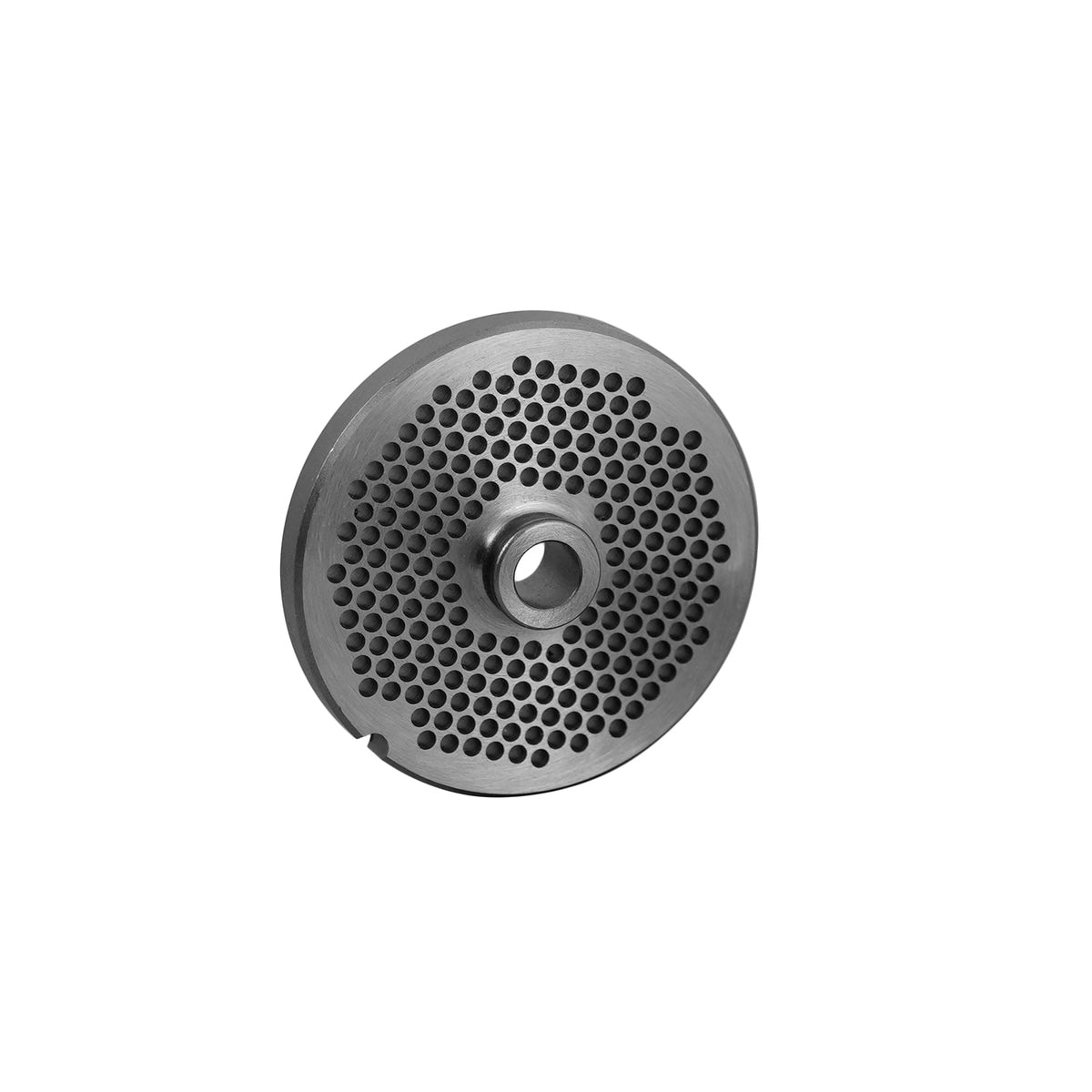

- Replacement #52 hub-style meat grinder plate with 1/8" holes, Alfa part number 52 1/8 HUB
- German-made L&W carbon tool steel plate for a fine grind of beef, pork and sausage meat
- Fits Hobart 4152, 4352, 4552, 4752, 4852 and Biro AFMG-52 grinders and other #52 grinders
- Center hub rides on the feed screw stud and the plate locks into the head notches against the knife
Details
This #52 meat grinder plate is a hub-style replacement plate with 1/8 inch (about 3 mm) holes for commercial meat grinders and mixer-grinders that take #52 size plates and knives, such as Hobart and Biro #52 grinders in supermarket meat departments and butcher shops. The plate is the last stop in the grinding head: the knife shears meat against its face and the meat is pushed out through the holes, so the hole size sets the texture of the grind. The 1/8 inch holes give a fine grind for hamburger, sausage and second grinds. It is made in Germany by L&W from carbon tool steel and has a center hub that supports the end of the feed screw.
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly, which shows up as mushy, warm product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, slide the plate on so the hub fits over the stud and the notches line up with the keys in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4152, 4352, 4552, 4752 and 4852 and Biro AFMG-52 grinders. Confirm your model before ordering.
Read more...
Each grind wears the plate face where the knife runs against it. Once the face is worn, scored or dished, the knife no longer sits flat, and meat smears and tears instead of cutting cleanly, which shows up as mushy, warm product, slower output and extra load on the motor. A worn plate also dulls a new knife quickly, so plates and knives should be replaced or resharpened together as a matched pair.
To install, disconnect power, remove the ring, take out the old plate and check the knife. With the knife on the feed screw and its cutting edges facing out, slide the plate on so the hub fits over the stud and the notches line up with the keys in the head, then thread the ring on until snug, not overly tight. After use, remove the plate, wash it by hand in warm soapy water, clear the holes, rinse, dry it right away and coat it lightly with food-grade oil, since carbon steel will rust if left wet. This plate fits Hobart 4152, 4352, 4552, 4752 and 4852 and Biro AFMG-52 grinders. Confirm your model before ordering.
Product Specs
Fits Models |
Hobart 4152
Hobart 4352
Hobart 4552
Hobart 4752
Hobart 4852
Biro AFMG-52
|
SKU |
148598 |
