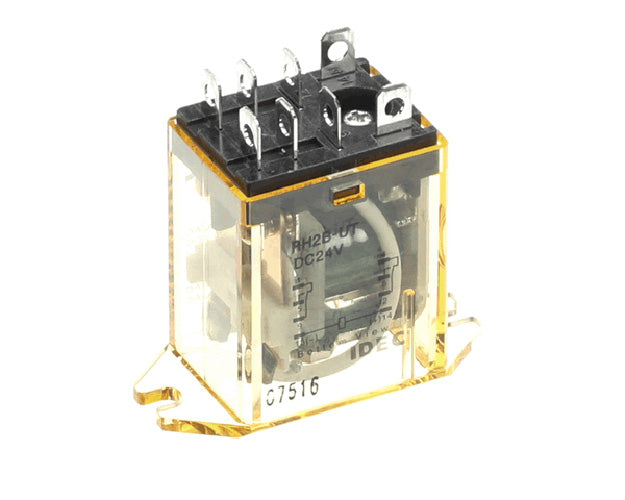

Middleby Marshall 71771 Relay, DPDT 24VDC Coil
Part #71771
SKU:
Regular price
$66.43
Regular price
Sale price
$66.43
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Ordery by 3:00 PM EST for same business day shipping
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW
- Replacement electrical protection/switching component for Middleby Marshall conveyor ovens
- Protects the circuit from overload or switches power to a connected load
- OEM replacement for Middleby Marshall Part# MD71771
- Direct fit for original Middleby Marshall equipment
Details
The Middleby Marshall Relay, DPDT 24VDC Coil (Part# 71771) is a genuine OEM replacement electrical protection/switching component for Middleby Marshall conveyor ovens. Installed in the control circuit of Middleby Marshall conveyor ovens, this component either protects the circuit from overload or switches power to a connected load on command.
Components like this see repeated switching cycles and, over time, thermal stress from the current passing through them, both of which contribute to wear. A failing unit typically presents as a circuit that will not stay energized, nuisance trips, or a component that fails to switch the load it controls at all.
Replacement should be performed by a qualified electrician. Lock out and de-energize the circuit, verify zero voltage with a meter, then remove the failed component from its mounting base or panel, noting wiring positions. Install the replacement in the same location, reconnect wiring to match the original configuration, and restore power, testing the circuit under normal load before returning the unit to service.
Read more...
Components like this see repeated switching cycles and, over time, thermal stress from the current passing through them, both of which contribute to wear. A failing unit typically presents as a circuit that will not stay energized, nuisance trips, or a component that fails to switch the load it controls at all.
Replacement should be performed by a qualified electrician. Lock out and de-energize the circuit, verify zero voltage with a meter, then remove the failed component from its mounting base or panel, noting wiring positions. Install the replacement in the same location, reconnect wiring to match the original configuration, and restore power, testing the circuit under normal load before returning the unit to service.
Product Specs
-
