Perfect Fry
Perfect Fry 83132 Element, 5.75kW, 208V #6ET910
Part #83132
SKU: 145998
Regular price
$473.57
Regular price
Sale price
$473.57
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Perfect Fry 83132 Element, 5.75kW, 208V #6ET910 is an OEM replacement part designed for use with Perfect Fry commercial ventless frying systems. This component supports proper operation, safety, and performance of compatible equipment.
Details

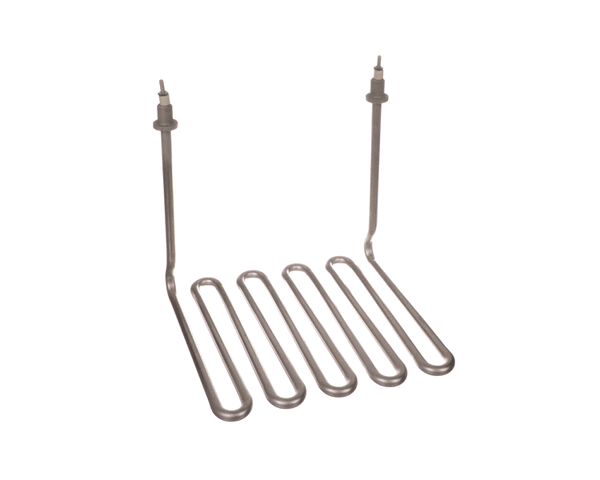

The Perfect Fry 83132 Heating Element (OEM reference 6ET910) is a genuine OEM 5.75kW, 208V, single‑phase replacement electric heater for Perfect Fry PFA series ventless countertop fryers on 208V North American electrical services. Rated at 5,750 watts and drawing approximately 27.6 amps, this element provides robust heat recovery capacity for high‑volume frying operations while maintaining the watt density optimized for the PFA vat geometry. The 208V specification must be matched to the fryer's installed supply voltage to ensure the element delivers its rated output correctly.
The 83132 element is designed to operate continuously in commercial service conditions where the fryer may run for eight to twelve hours per day. Gradual carbonization of the element sheath from frying oil polymerization is the primary life‑limiting factor, as carbon deposits insulate the sheath and force the element to run at progressively higher internal temperatures to maintain heat transfer into the oil. Signs of carbonization‑driven degradation include slower recovery times, a higher heater duty cycle than normal, and visible dark deposits on the element sheath when the vat is drained for cleaning.
Element installation requires full de‑energization of the 208V supply circuit, proper lockout/tagout, and vat drainage before the original element can be removed. The 83132 uses the same mounting flange and terminal block configuration as the original, making it a direct swap for a qualified technician. After installation, the vat should be filled with fresh oil before power is applied to protect the new sheath from dry‑fire damage, and a full temperature verification cycle should be run to confirm the element is reaching and maintaining the oil setpoint under production conditions.
Read more...
The 83132 element is designed to operate continuously in commercial service conditions where the fryer may run for eight to twelve hours per day. Gradual carbonization of the element sheath from frying oil polymerization is the primary life‑limiting factor, as carbon deposits insulate the sheath and force the element to run at progressively higher internal temperatures to maintain heat transfer into the oil. Signs of carbonization‑driven degradation include slower recovery times, a higher heater duty cycle than normal, and visible dark deposits on the element sheath when the vat is drained for cleaning.
Element installation requires full de‑energization of the 208V supply circuit, proper lockout/tagout, and vat drainage before the original element can be removed. The 83132 uses the same mounting flange and terminal block configuration as the original, making it a direct swap for a qualified technician. After installation, the vat should be filled with fresh oil before power is applied to protect the new sheath from dry‑fire damage, and a full temperature verification cycle should be run to confirm the element is reaching and maintaining the oil setpoint under production conditions.
Product Specs
Voltage (V) |
208V |
Frequency (Hz) |
60Hz |
Phase |
1Ph |
Amps (A) |
27.6A |
Wattage (W) |
5750W |
Warranty |
90-day warranty |
SKU |
145998 |
-
