Perfect Fry

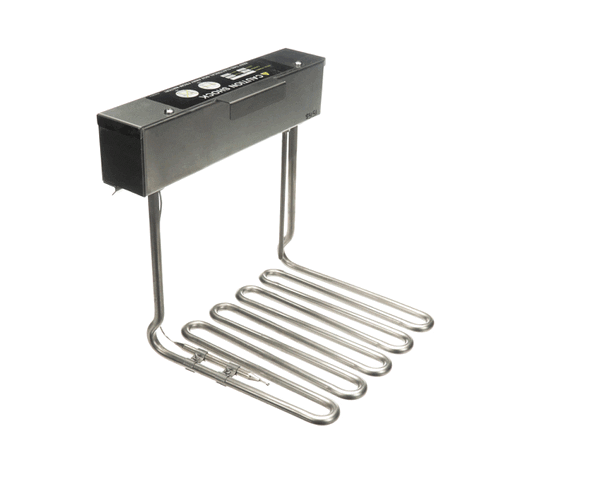

Perfect Fry 83151 Heater Assy, 5.7kW, 240V, 1Ph
Part #83151
SKU: 145924
Regular price
$991.31
Regular price
Sale price
$991.31
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Perfect Fry 83151 Heater Assy, 5.7kW, 240V, 1Ph is an OEM replacement part designed for use with Perfect Fry commercial ventless frying systems. This component supports proper operation, safety, and performance of compatible equipment.
Details
The Perfect Fry 83151 Heater Assembly is a genuine OEM 5.7kW, 240V, single‑phase replacement heating element for Perfect Fry PFA series ventless countertop fryers on standard North American 240V electrical circuits. Operating at 5,700 watts and approximately 23.8 amps, this element delivers the rapid oil heat recovery that high‑volume commercial frying demands while maintaining the controlled watt density the 11‑liter PFA vat is designed to accommodate. The 240V specification must match the fryer's installed electrical supply to ensure correct output and element longevity.
Heating element lifespan in commercial fryers is most directly affected by oil quality and change frequency, since carbonized oil deposits on the element sheath act as insulation that forces the element to work harder and run hotter to maintain the oil setpoint. Dry‑fire events, where the element is energized without oil in the vat, cause immediate and severe sheath damage that is not always visually apparent but leads to early element failure. The first symptoms of a degrading element are typically slower temperature recovery times and the fryer running at a higher duty cycle than usual, followed eventually by a heating fault code.
The 83151 element uses the same terminal arrangement and mounting flange as the original, enabling a qualified technician to complete the swap after de‑energizing the fryer and draining the vat. Confirming a solid, torqued connection at the electrical terminals is important because a loose terminal generates resistance heat that will shorten the new element's life and may damage the wiring harness. After installation, filling the vat with fresh oil before restoring power and running a full temperature verification cycle validates that the replacement element is producing the correct output.
Read more...
Heating element lifespan in commercial fryers is most directly affected by oil quality and change frequency, since carbonized oil deposits on the element sheath act as insulation that forces the element to work harder and run hotter to maintain the oil setpoint. Dry‑fire events, where the element is energized without oil in the vat, cause immediate and severe sheath damage that is not always visually apparent but leads to early element failure. The first symptoms of a degrading element are typically slower temperature recovery times and the fryer running at a higher duty cycle than usual, followed eventually by a heating fault code.
The 83151 element uses the same terminal arrangement and mounting flange as the original, enabling a qualified technician to complete the swap after de‑energizing the fryer and draining the vat. Confirming a solid, torqued connection at the electrical terminals is important because a loose terminal generates resistance heat that will shorten the new element's life and may damage the wiring harness. After installation, filling the vat with fresh oil before restoring power and running a full temperature verification cycle validates that the replacement element is producing the correct output.
Product Specs
Voltage (V) |
240V |
Frequency (Hz) |
60Hz |
Phase |
1Ph |
Amps (A) |
23.8A |
Wattage (W) |
5700W |
Warranty |
90-day warranty |
SKU |
145924 |
-
