• Perfect Fry 83457 Kit, Female Element Plug OEM replacement part for Perfect Fry equipment
1 1
OEM

Perfect Fry

Perfect Fry 83457 Kit, Female Element Plug
Part #83457

Availability
$181.15
$181.15
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

Perfect Fry 83457 Kit, Female Element Plug is an OEM replacement part designed for use with Perfect Fry commercial ventless frying systems. This component supports proper operation, safety, and performance of compatible equipment.

View full details

Details

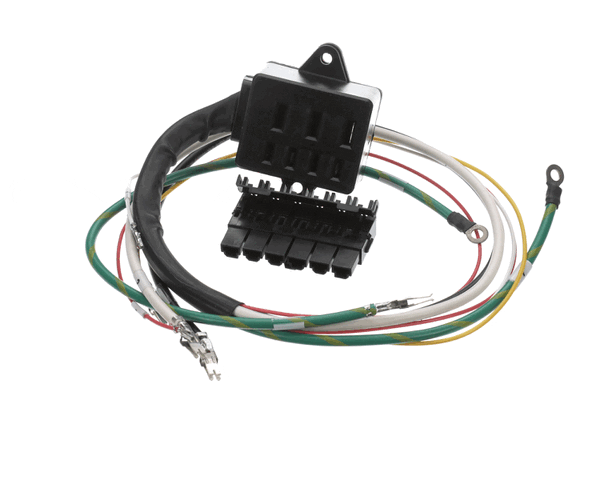

The Perfect Fry 83457 Female Element Plug Kit is a genuine OEM replacement connector kit for the electrical interface between the heating element and the fryer's main power wiring in Perfect Fry PFA and PFC series ventless countertop fryers. This kit supplies the female connector hardware that mates with the element's male termination pins, providing the code‑compliant, high‑current connection point at which the element receives its power from the fryer's control and switching circuit. Using the OEM connector hardware ensures the contact rating, insulation material, and retention geometry match the element termination design and the current levels present at this junction.

Element plug connectors are among the highest‑stress electrical connections in the fryer because they carry the full heater current continuously during each cook cycle and are located adjacent to the high‑temperature element body. Heat cycling gradually degrades the contact spring tension inside the female connector, allowing the contact resistance to increase over time and generating additional heat that further accelerates contact wear. A connector with insufficient contact force on the element pins can produce arcing during high‑load frying cycles, causing visible burning at the connector face and potentially damaging both the connector and the element terminal it mates with.

The 83457 kit is used when element replacement or harness service reveals connector damage or contact wear that requires the female connector hardware to be replaced. Installation uses the appropriate pin extraction tool and crimp tooling to rebuild the connector to OEM specification, and the completed connector should be pulled‑tested at each conductor before being mated to the element. After mating, a thermal inspection during the first fry cycle after service confirms that the new connector is making a low‑resistance contact with the element pins and that no heat buildup is developing at the connection point.
Read more...

Product Specs

Warranty

90-day warranty

SKU

145931
