Perfect Fry

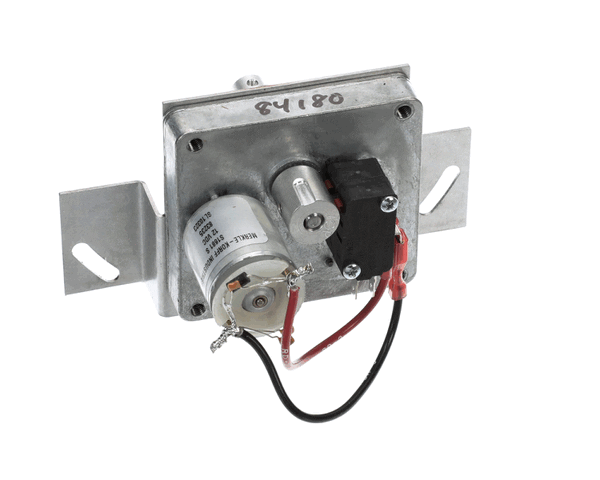

Perfect Fry 84180 PFC Basket Motor
Part #84180
SKU: 145977
Regular price
$248.67
Regular price
Sale price
$248.67
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Perfect Fry 84180 PFC Basket Motor is an OEM replacement part designed for use with Perfect Fry commercial ventless frying systems. This component supports proper operation, safety, and performance of compatible equipment.
Details
The Perfect Fry 84180 PFC Basket Motor is a genuine OEM replacement drive motor for the basket lift mechanism on Perfect Fry PFC series ventless countertop fryers. This motor provides the electromechanical drive that automatically raises and lowers the product‑loaded basket in the PFC's frying oil during each cook cycle, which is the core safety feature that prevents operator contact with hot oil during basket handling. The motor's output torque and speed profile are matched to the PFC basket weight and lift travel geometry for smooth, correctly timed basket operation.
PFC basket motors accumulate wear through the hundreds of lift cycles performed each service day, with the motor brushes, commutator, and shaft bearing being the primary wear surfaces. As wear accumulates, the motor requires progressively more current to maintain the same basket travel speed, eventually reaching the point where it generates audible noise, slows perceptibly during the lift stroke, or fails to complete the full travel range and triggers a fault code. Complete motor failure during a fry cycle is a safety event because the basket remains stationary in hot oil until manual intervention is performed, which creates significant burn risk.
The 84180 motor mounts in the original PFC motor cavity using the factory fasteners and connects to the motor wiring harness through the original connector, making it a direct replacement. Replacement should be initiated proactively when lift motor slowdown or abnormal mechanical noise is first detected, rather than waiting for complete failure during a service period. After installation, running the fryer through multiple full lift cycles and confirming consistent basket travel speed and position across all cycles validates the new motor before the fryer is returned to production.
Read more...
PFC basket motors accumulate wear through the hundreds of lift cycles performed each service day, with the motor brushes, commutator, and shaft bearing being the primary wear surfaces. As wear accumulates, the motor requires progressively more current to maintain the same basket travel speed, eventually reaching the point where it generates audible noise, slows perceptibly during the lift stroke, or fails to complete the full travel range and triggers a fault code. Complete motor failure during a fry cycle is a safety event because the basket remains stationary in hot oil until manual intervention is performed, which creates significant burn risk.
The 84180 motor mounts in the original PFC motor cavity using the factory fasteners and connects to the motor wiring harness through the original connector, making it a direct replacement. Replacement should be initiated proactively when lift motor slowdown or abnormal mechanical noise is first detected, rather than waiting for complete failure during a service period. After installation, running the fryer through multiple full lift cycles and confirming consistent basket travel speed and position across all cycles validates the new motor before the fryer is returned to production.
Product Specs
Warranty |
90-day warranty |
SKU |
145977 |
-
