Pitco

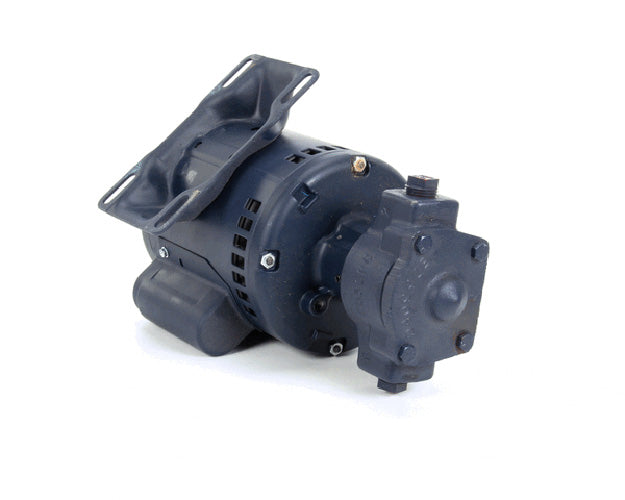

Pitco PP10101 Pump Motor, 1/3 HP, 115/230V, 50/60Hz
Part #PP10101
SKU: 146195
Regular price
$891.25
Regular price
Sale price
$891.25
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Pitco PP10101 Pump Motor, 1/3 HP, 115/230V, 50/60Hz is an OEM replacement part engineered for Pitco commercial fryers and filtration systems. Designed to support reliable operation, safety, and performance during service and maintenance.
Details
The Pitco Pump Motor, 1/3 HP, 115/230V, 50/60Hz is a genuine OEM replacement electric motor for Pitco commercial fryer oil filtration pump systems, rated at one-third horsepower for dual-voltage 115 or 230V operation at either 50 or 60 Hz supply frequency. The dual-voltage, dual-frequency rating makes this motor suitable for domestic and international Pitco fryer installations. Using the correct OEM motor ensures the shaft diameter, frame mounting dimensions, and performance curve match the filtration pump's design.
Over time, the original pump motor can fail from bearing wear, capacitor failure in single-phase designs, winding insulation breakdown from prolonged operation in high-ambient-temperature environments, or ingress of oil vapor into the motor housing. A failed motor stops oil filtration entirely, requiring manual oil management and significantly accelerating oil degradation. Installing the replacement 1/3 HP motor restores automated pump operation at the correct speed and torque.
The motor is coupled to the pump body using the original shaft coupling or close-coupled flange arrangement and is wired into the filter system power circuit. It is recommended to replace the pump motor annually during scheduled preventive maintenance or immediately upon failure to start or excessive current draw. Pairing the new motor with a pump impeller inspection and a filter system pressure test will confirm the complete filtration drive system is performing to specification.
Read more...
Over time, the original pump motor can fail from bearing wear, capacitor failure in single-phase designs, winding insulation breakdown from prolonged operation in high-ambient-temperature environments, or ingress of oil vapor into the motor housing. A failed motor stops oil filtration entirely, requiring manual oil management and significantly accelerating oil degradation. Installing the replacement 1/3 HP motor restores automated pump operation at the correct speed and torque.
The motor is coupled to the pump body using the original shaft coupling or close-coupled flange arrangement and is wired into the filter system power circuit. It is recommended to replace the pump motor annually during scheduled preventive maintenance or immediately upon failure to start or excessive current draw. Pairing the new motor with a pump impeller inspection and a filter system pressure test will confirm the complete filtration drive system is performing to specification.
Product Specs
Voltage (V) |
115/230V |
Frequency (Hz) |
50/60Hz |
Phase |
1Ph |
Horsepower (HP) |
1/3HP |
Warranty |
90-day warranty |
SKU |
146195 |
-
