Pitco

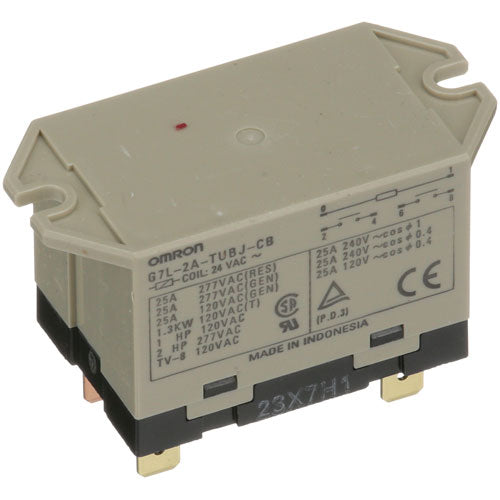

Relay - 24V for Pitco Part# 60104701
Part #60104701
SKU: 135613
Regular price
$70.25
Regular price
Sale price
$70.25
Unit price
/
per
Couldn't load pickup availability
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Relay - 24V for Pitco Part# 60104701
Details
The Pitco Relay - 24V is a direct replacement 24-volt relay for Pitco commercial fryers, compatible with both AC and DC 24V control circuit applications. It switches a controlled load circuit in response to the 24V signal from the fryer's control system, providing a critical link between the low-voltage control electronics and higher-voltage or higher-current loads. Using the correct relay ensures the proper coil sensitivity, contact rating, and connector type for the Pitco control circuit.
Over time, 24V relay coils and contacts degrade from thermal cycling, electrical stress, and the vibration of commercial kitchen equipment operation, leading to coil open circuits, contact welding, or intermittent switching that disrupts the function the relay controls. Symptoms can include a load that never activates, one that runs continuously, or erratic cycling that causes product quality issues. Replacing the relay with a compatible 24V unit restores reliable control switching.
Replacement is typically performed by pulling the relay from its socket and pressing in the new unit, taking care to match any orientation markings. It is recommended to verify the 24V control signal at the coil terminals before installation to confirm the control circuit is delivering the correct voltage. Pairing relay replacement with a functional test of the controlled load after power-up will confirm that the relay is switching correctly and that normal fryer operation has been restored.
Read more...
Over time, 24V relay coils and contacts degrade from thermal cycling, electrical stress, and the vibration of commercial kitchen equipment operation, leading to coil open circuits, contact welding, or intermittent switching that disrupts the function the relay controls. Symptoms can include a load that never activates, one that runs continuously, or erratic cycling that causes product quality issues. Replacing the relay with a compatible 24V unit restores reliable control switching.
Replacement is typically performed by pulling the relay from its socket and pressing in the new unit, taking care to match any orientation markings. It is recommended to verify the 24V control signal at the coil terminals before installation to confirm the control circuit is delivering the correct voltage. Pairing relay replacement with a functional test of the controlled load after power-up will confirm that the relay is switching correctly and that normal fryer operation has been restored.
Product Specs
Voltage (V) |
24V |
Frequency (Hz) |
60Hz |
Phase |
1Ph |
Amps (A) |
30A |
Warranty |
120-day warranty |
SKU |
135613 |
-
