Pitco

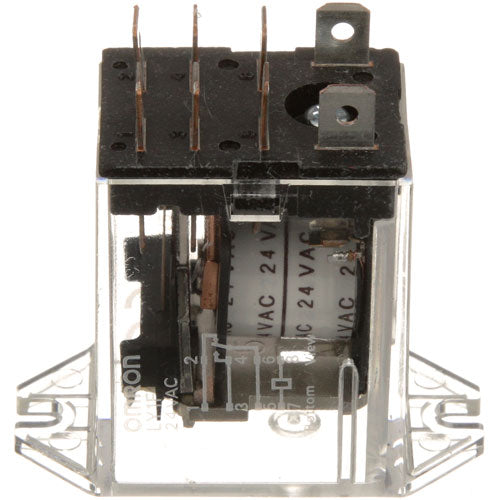

Relay - 24Vac for Pitco Part# P5046686
Part #P5046686
SKU: 135195
Regular price
$23.10
Regular price
Sale price
$23.10
Unit price
/
per
Couldn't load pickup availability
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Relay - 24Vac for Pitco Part# P5046686
Details
The Pitco Relay - 24Vac is a direct replacement 24-volt AC relay for Pitco commercial fryers. Its 24VAC coil is energized by the fryer's low-voltage AC control circuit, typically derived from a step-down transformer, to switch a separate load circuit as commanded by the temperature controller or safety circuit. Using the correct relay ensures the proper AC coil rating, contact switching capacity, and physical form factor for the specific fryer application.
Over time, 24VAC relay coils can fail from insulation degradation caused by sustained high ambient temperatures in the fryer cabinet, and the contacts can wear from the arcing associated with repeated switching of inductive loads such as solenoid valves or motor starters. A failed relay may leave the controlled circuit permanently open or closed, disrupting normal fryer operation. Replacing the relay restores accurate, reliable 24VAC switching.
The relay is typically mounted in a plug-in socket or on a DIN rail for easy replacement after disconnecting power. It is recommended to verify that 24VAC is present at the coil terminals under normal operating conditions before installing the new relay, to rule out a transformer or control board fault. Pairing relay replacement with a check of the 24V transformer secondary voltage and the load circuit continuity will ensure the full control chain is operating correctly after the repair.
Read more...
Over time, 24VAC relay coils can fail from insulation degradation caused by sustained high ambient temperatures in the fryer cabinet, and the contacts can wear from the arcing associated with repeated switching of inductive loads such as solenoid valves or motor starters. A failed relay may leave the controlled circuit permanently open or closed, disrupting normal fryer operation. Replacing the relay restores accurate, reliable 24VAC switching.
The relay is typically mounted in a plug-in socket or on a DIN rail for easy replacement after disconnecting power. It is recommended to verify that 24VAC is present at the coil terminals under normal operating conditions before installing the new relay, to rule out a transformer or control board fault. Pairing relay replacement with a check of the 24V transformer secondary voltage and the load circuit continuity will ensure the full control chain is operating correctly after the repair.
Product Specs
Voltage (V) |
24V |
Frequency (Hz) |
60Hz |
Phase |
1Ph |
Warranty |
120-day warranty |
SKU |
135195 |
-
