Pitco

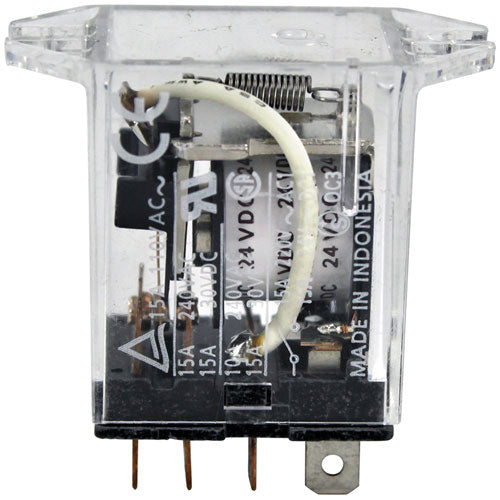

Relay - 24Vdc for Pitco Part# PP11124
Part #PP11124
SKU: 135149
Regular price
$135.08
Regular price
Sale price
$135.08
Unit price
/
per
Couldn't load pickup availability
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Relay - 24Vdc for Pitco Part# PP11124
Details
The Pitco Relay - 24Vdc is a direct replacement 24-volt DC relay for Pitco commercial fryers. It is actuated by the fryer's DC control circuit and switches a separate load circuit — such as a solenoid, indicator, or pump — on and off as commanded by the control system. Using the correct relay ensures proper DC coil impedance, contact rating, and pin layout for the specific Pitco control board or relay socket.
Over time, relay contacts degrade from arcing during switching, and the DC coil can fail from reverse-polarity events, voltage spikes, or sustained coil heating in a high-ambient-temperature control enclosure, causing the relay to fail open or closed and disrupting the function it controls. A failed 24Vdc relay can prevent critical fryer subsystems from operating correctly. Replacing the relay with a compatible part restores reliable low-voltage DC switching.
Most 24Vdc relays in Pitco fryers mount in a plug-in socket, making replacement a simple pull-and-replace operation after power is disconnected. It is recommended to verify DC coil polarity and voltage before installing the new relay to prevent immediate coil damage. Pairing relay replacement with an inspection of the relay socket contacts for corrosion and a confirmation of the control signal output will ensure the new relay operates correctly from the first power-up.
Read more...
Over time, relay contacts degrade from arcing during switching, and the DC coil can fail from reverse-polarity events, voltage spikes, or sustained coil heating in a high-ambient-temperature control enclosure, causing the relay to fail open or closed and disrupting the function it controls. A failed 24Vdc relay can prevent critical fryer subsystems from operating correctly. Replacing the relay with a compatible part restores reliable low-voltage DC switching.
Most 24Vdc relays in Pitco fryers mount in a plug-in socket, making replacement a simple pull-and-replace operation after power is disconnected. It is recommended to verify DC coil polarity and voltage before installing the new relay to prevent immediate coil damage. Pairing relay replacement with an inspection of the relay socket contacts for corrosion and a confirmation of the control signal output will ensure the new relay operates correctly from the first power-up.
Product Specs
Voltage (V) |
24V |
Frequency (Hz) |
60Hz |
Phase |
1Ph |
Warranty |
120-day warranty |
SKU |
135149 |
-
