Jackson
Relay 2P 30A 208/240Vv for Jackson Part# 05945-002-74-20
Part #05945-002-74-20
SKU: 134880
Regular price
$43.83
Regular price
Sale price
$43.83
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

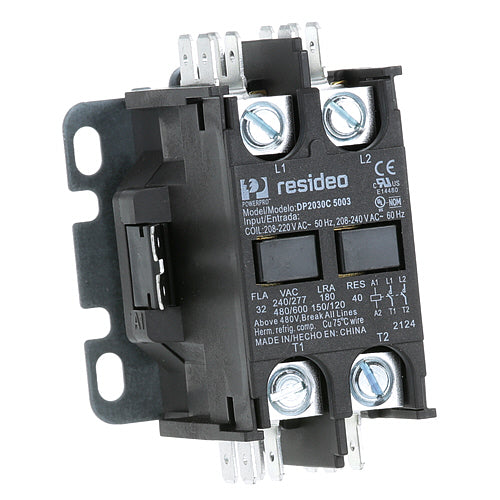

Relay 2P 30A 208/240Vv for Jackson Part# 05945-002-74-20
Details
The relay (Jackson Part# 05945-002-74-20) is a 2-pole, 30 Amp electrical switch rated for 208/240V operation in Jackson commercial dishwashing equipment. This replacement controls the flow of electrical current to solenoids, smaller motors, or indicator lights. The relay responds to low-voltage control signals and safely switches medium-voltage loads during wash cycle sequences.
Relays fail when electrical arcing between contacts creates pitting and erosion that prevents reliable electrical connection and causes intermittent power delivery to connected loads. As contact surfaces degrade, the relay experiences sporadic switching, with loads activating and deactivating unpredictably. Severe arcing can weld contacts together, preventing disconnection, or burn contacts open, creating permanent disconnection. Symptoms include equipment loads that activate sporadically, intermittent component operation, or loads not responding reliably to control signals.
A qualified technician should perform the replacement due to electrical hazards and the need to safely isolate circuits before work. All power must be confirmed off using a multimeter before disconnecting the old relay. After installation, test all relay-controlled loads to verify reliable switching throughout multiple complete wash cycles. Monitor relays during routine maintenance for signs of arcing damage, contact surface erosion, discoloration, or unusual heating, and replace proactively if degradation is detected.
Read more...
Relays fail when electrical arcing between contacts creates pitting and erosion that prevents reliable electrical connection and causes intermittent power delivery to connected loads. As contact surfaces degrade, the relay experiences sporadic switching, with loads activating and deactivating unpredictably. Severe arcing can weld contacts together, preventing disconnection, or burn contacts open, creating permanent disconnection. Symptoms include equipment loads that activate sporadically, intermittent component operation, or loads not responding reliably to control signals.
A qualified technician should perform the replacement due to electrical hazards and the need to safely isolate circuits before work. All power must be confirmed off using a multimeter before disconnecting the old relay. After installation, test all relay-controlled loads to verify reliable switching throughout multiple complete wash cycles. Monitor relays during routine maintenance for signs of arcing damage, contact surface erosion, discoloration, or unusual heating, and replace proactively if degradation is detected.
Product Specs
Voltage (V) |
208/240V |
Amps (A) |
30A |
Warranty |
120-day warranty |
SKU |
134880 |
-
