Jackson
Relay 2P 30A 208/240Vv for Jackson Part# 5945-109-02-69
Part #5945-109-02-69
SKU: 134900
Regular price
$43.83
Regular price
Sale price
$43.83
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

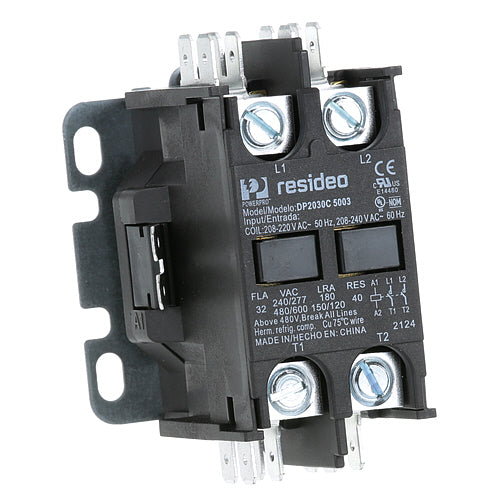

Relay 2P 30A 208/240Vv for Jackson Part# 5945-109-02-69
Details
The relay (Jackson Part# 5945-109-02-69) is a 2-pole, 30 Amp electrical switch for Jackson commercial dishwashing equipment rated at 208/240V. This replacement controls switching of medium-voltage electrical loads including solenoid coils, small motors, and control circuit components. The relay is triggered by low-voltage control signals and safely distributes power during wash cycle sequences.
Relays fail when electrical arcing creates pitting and erosion on contact surfaces, preventing reliable electrical connections and causing intermittent power delivery to connected loads. Contact degradation accumulates progressively, resulting in sporadic switching and unpredictable component behavior. Severe arcing can weld contacts together, preventing disconnection, or burn contacts open, creating permanent disconnection. Symptoms include loads switching sporadically, intermittent component operation, or equipment not responding consistently to control signals.
A qualified technician should perform the replacement due to electrical safety concerns and proper circuit isolation requirements. All power must be confirmed off using a multimeter before disconnecting the old relay. After installation, test all relay-controlled loads to verify reliable switching throughout multiple complete wash cycles. Monitor relays during preventive maintenance for signs of arcing damage, contact surface degradation, discoloration, or unusual heating, and replace proactively if any degradation is observed.
Read more...
Relays fail when electrical arcing creates pitting and erosion on contact surfaces, preventing reliable electrical connections and causing intermittent power delivery to connected loads. Contact degradation accumulates progressively, resulting in sporadic switching and unpredictable component behavior. Severe arcing can weld contacts together, preventing disconnection, or burn contacts open, creating permanent disconnection. Symptoms include loads switching sporadically, intermittent component operation, or equipment not responding consistently to control signals.
A qualified technician should perform the replacement due to electrical safety concerns and proper circuit isolation requirements. All power must be confirmed off using a multimeter before disconnecting the old relay. After installation, test all relay-controlled loads to verify reliable switching throughout multiple complete wash cycles. Monitor relays during preventive maintenance for signs of arcing damage, contact surface degradation, discoloration, or unusual heating, and replace proactively if any degradation is observed.
Product Specs
Voltage (V) |
208/240V |
Amps (A) |
30A |
Warranty |
120-day warranty |
SKU |
134900 |
-
