Robertshaw

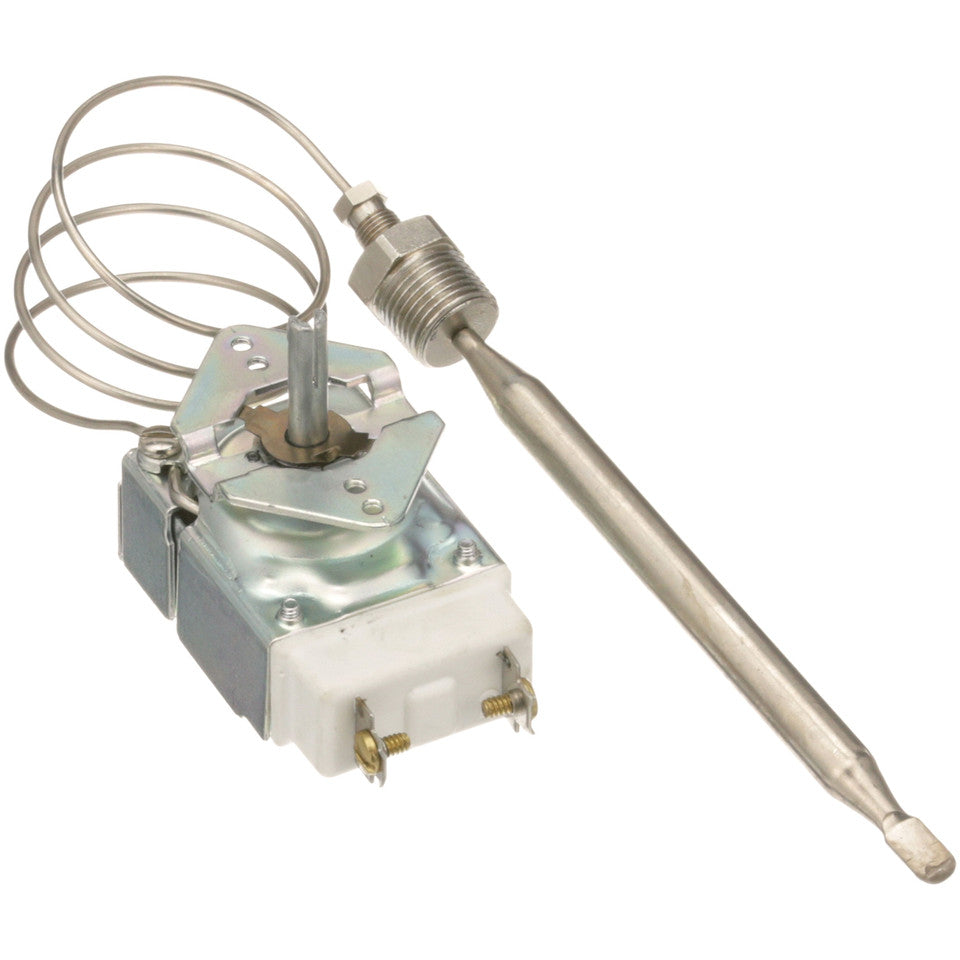

Robertshaw RX-2-24 Thermostat, 200°-400° Range, 24 in Capillary
Part #RX-2-24
SKU: 148061
Regular price
$71.99
Regular price
Sale price
$71.99
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
No reviews
PRODUCT OVERVIEW
The Robertshaw RX-2-24 is a reliable capillary thermostat designed for high-temperature applications. With a 200°-400°F operating range and 24-inch capillary tube, it provides precise temperature control for commercial cooking equipment, ovens, and industrial processes. The remote sensing capability allows flexible bulb placement away from the main control unit, making installation easier in tight spaces. Built for durability and consistent performance in demanding kitchen and industrial environments.
Details
The Robertshaw RX‑2‑24 is a millivolt temperature control thermostat designed primarily for gas fryers that operate in the 200°–400°F frying range. It uses a remote‑bulb design with a 24 inch capillary and a 3/8 inch diameter sensing bulb that is typically inserted into the fryer’s frypot or heat tube to monitor oil temperature. The wide 200°–400°F span and long capillary make it suitable for a variety of medium‑ and high‑temperature commercial fryers that require precise control in the standard deep‑frying range.
Internally, the RX‑2‑24 is a snap‑action, single‑pole, single‑throw (SPST) millivolt control intended for use with standing‑pilot gas systems, where it opens and closes the low‑voltage gas control circuit based on the sensed oil temperature. The control shaft usually provides roughly 300+ degrees of rotation, giving the operator fine adjustment between setpoints on the front knob. This style of thermostat is built to handle the hot, greasy environment inside a fryer cabinet, with a sealed sensing system and rugged mechanical construction that resists vibration and repeated heating and cooling.
In the field, the RX‑2‑24 (or its direct equivalents) is commonly used as a replacement for failed OEM fryer thermostats that share the same 3/8 in bulb size, capillary length, mounting style, and 200°–400°F range. It is often supplied with a dial shaft compatible with standard fryer knobs, plus fittings to secure the bulb in the frypot tube or well. When installed and calibrated correctly, it helps maintain consistent oil temperature, protects product quality, and supports safe operation by reliably cutting gas when the set temperature is reached.
Read more...
Internally, the RX‑2‑24 is a snap‑action, single‑pole, single‑throw (SPST) millivolt control intended for use with standing‑pilot gas systems, where it opens and closes the low‑voltage gas control circuit based on the sensed oil temperature. The control shaft usually provides roughly 300+ degrees of rotation, giving the operator fine adjustment between setpoints on the front knob. This style of thermostat is built to handle the hot, greasy environment inside a fryer cabinet, with a sealed sensing system and rugged mechanical construction that resists vibration and repeated heating and cooling.
In the field, the RX‑2‑24 (or its direct equivalents) is commonly used as a replacement for failed OEM fryer thermostats that share the same 3/8 in bulb size, capillary length, mounting style, and 200°–400°F range. It is often supplied with a dial shaft compatible with standard fryer knobs, plus fittings to secure the bulb in the frypot tube or well. When installed and calibrated correctly, it helps maintain consistent oil temperature, protects product quality, and supports safe operation by reliably cutting gas when the set temperature is reached.
Product Specs
Warranty |
90-day warranty |
SKU |
148061 |
-
