Pitco
Solid State Control For Pitco Part# B2005301
Part #B2005301
SKU: 100325
Regular price
$308.90
Regular price
Sale price
$308.90
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

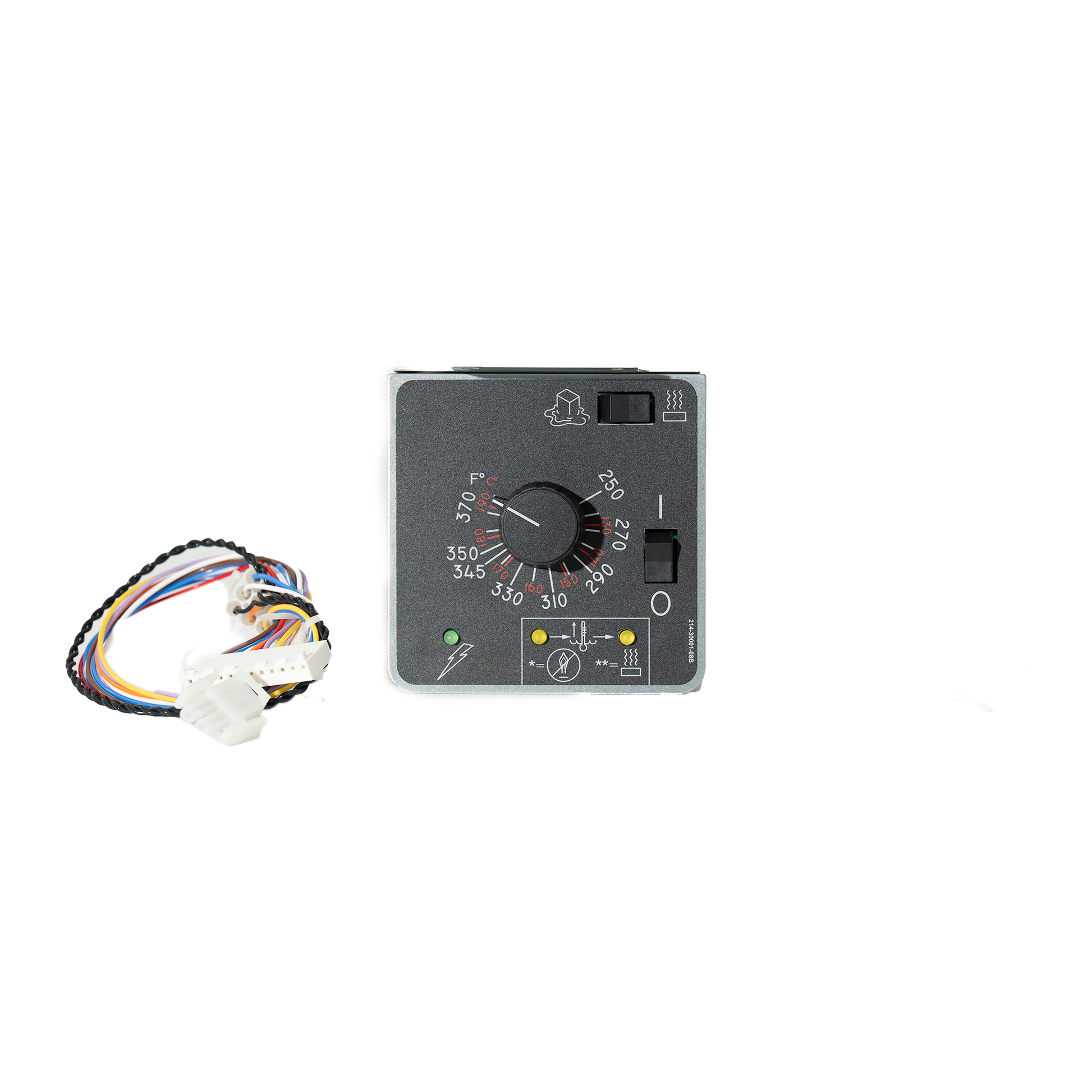

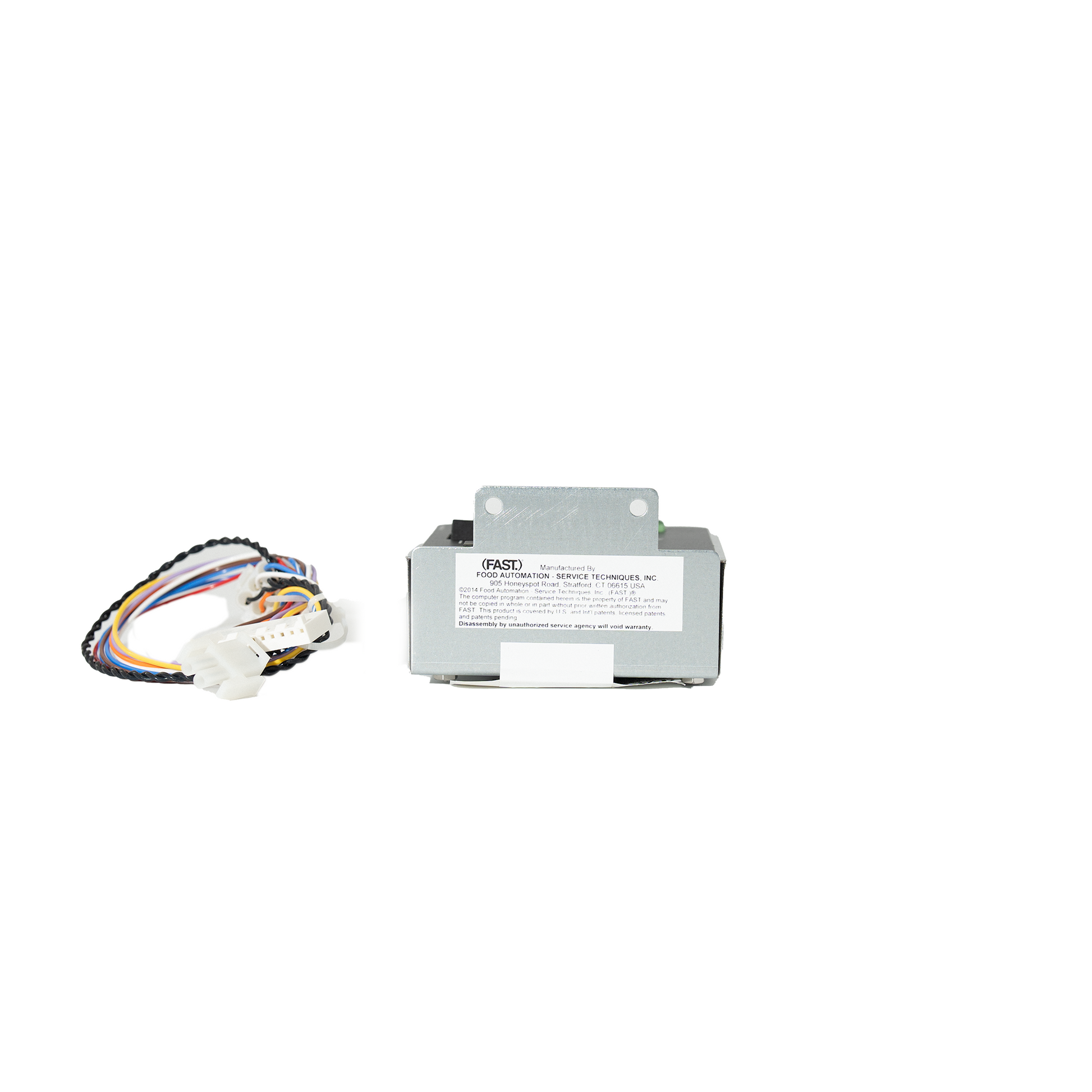

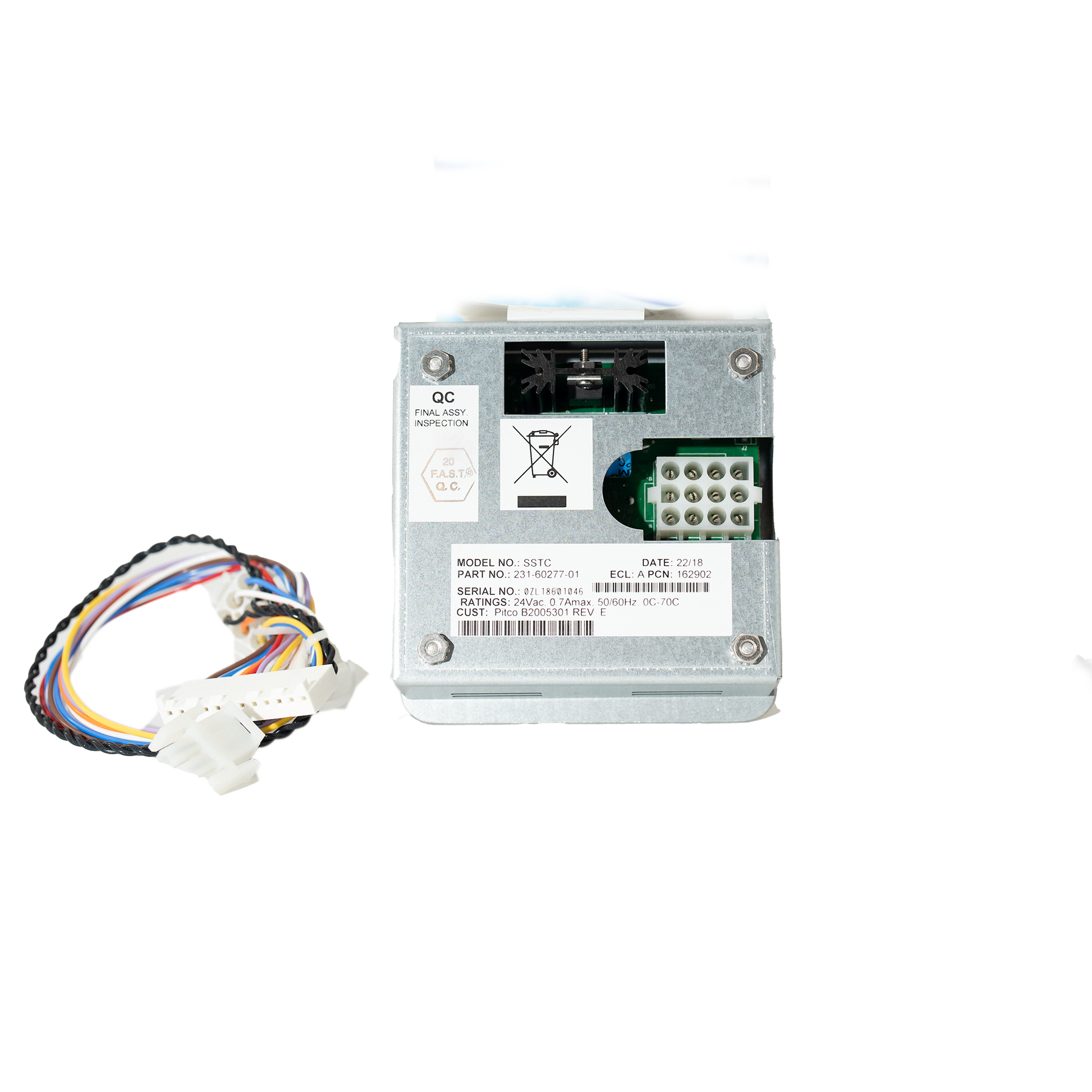

Introducing our solid-state temperature controller designed for Pitco part # B2005301. This controller operates at 24V and features dimensions of 4-1/4" x 4-1/4". It includes three indicator lights, two switches, and one temperature control. The wire harness is included, and it offers a temperature range of 250-370°F for precise temperature management in your application.
Details
The Pitco Solid State Control is a direct replacement solid-state temperature controller for Pitco commercial electric fryers, providing precise digital or analog temperature regulation without the mechanical switching contacts found in capillary-bulb thermostats. It processes the signal from the fryer's temperature probe and controls power to the heating elements through solid-state switching components, enabling accurate, repeatable temperature control with minimal temperature overshoot. Using the correct solid state control ensures compatibility with the fryer's probe input type, element load rating, and control voltage.
Over time, solid state controls can fail from heat stress, voltage spikes, or component aging within the control electronics, resulting in erratic temperature swings, locked-on heating, or a complete failure to energize the elements. Unlike mechanical thermostats that degrade gradually, solid state failures can be abrupt and leave the fryer inoperable at the start of service. Replacing the faulty control with the Pitco-compatible solid state unit restores accurate probe-based temperature regulation and the protective functions built into the original design, including over-temperature detection.
Replacement is performed at the control panel and typically involves mounting the new control board, reconnecting the probe leads, and reconnecting the element switching outputs. It is recommended to replace the solid state control whenever temperature regulation becomes erratic or fails entirely after the probe and wiring have been verified as functional. Pairing solid state control replacement with a calibration check using a reference thermometer and an inspection of all terminal connections will ensure the fryer returns to stable, accurate temperature control.
Read more...
Over time, solid state controls can fail from heat stress, voltage spikes, or component aging within the control electronics, resulting in erratic temperature swings, locked-on heating, or a complete failure to energize the elements. Unlike mechanical thermostats that degrade gradually, solid state failures can be abrupt and leave the fryer inoperable at the start of service. Replacing the faulty control with the Pitco-compatible solid state unit restores accurate probe-based temperature regulation and the protective functions built into the original design, including over-temperature detection.
Replacement is performed at the control panel and typically involves mounting the new control board, reconnecting the probe leads, and reconnecting the element switching outputs. It is recommended to replace the solid state control whenever temperature regulation becomes erratic or fails entirely after the probe and wiring have been verified as functional. Pairing solid state control replacement with a calibration check using a reference thermometer and an inspection of all terminal connections will ensure the fryer returns to stable, accurate temperature control.
Product Specs
Solid State Temperature Controller
24V
4-1/4" X 4-1/4" 3 Lights
2 Switches & 1 Temp Control
Wire Harness
250-370F
24V
4-1/4" X 4-1/4" 3 Lights
2 Switches & 1 Temp Control
Wire Harness
250-370F
Dimensions |
|
Voltage (V) |
24V |
Frequency (Hz) |
60Hz |
Phase |
1Ph |
Warranty |
90-day warranty |
SKU |
100325 |
-
