Jackson

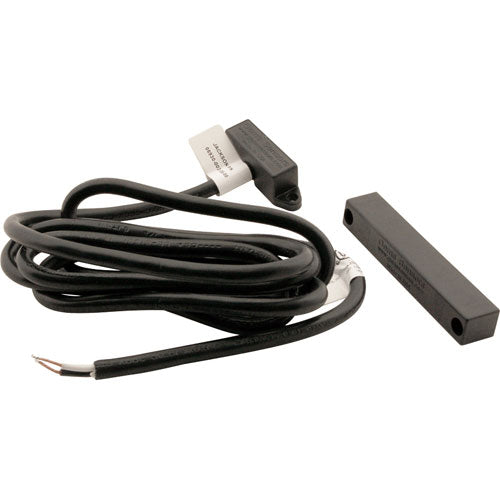

Switch,Door (Tempstar) for Jackson Part# 05930-111-51-69
Part #05930-111-51-69
SKU: 117290
Regular price
$330.97
Regular price
Sale price
$330.97
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Switch,Door (Tempstar) for Jackson Part# 05930-111-51-69
Details
The Tempstar door switch (part number 05930-111-51-69) is a replacement door safety component designed for Jackson undercounter dishwashers, door-type dishwashers, glass washers, and pot & pan washers. This interlock switch is specifically engineered for Jackson Tempstar equipment models, monitoring door position and disabling equipment operation when the access door is open. The switch provides critical safety protection by preventing spray contact, chemical exposure, or moving parts injuries when equipment is accessed.
Door switches fail due to repeated mechanical actuation from constant door opening and closing, worn actuating levers, misalignment causing inconsistent contact, or water intrusion corroding electrical contacts. Failure symptoms include equipment operating with the door open, inability to start the cycle when the door is closed, or intermittent operation depending on door position. A failed door switch creates serious safety hazards by allowing operation with access doors open, risking operator injury from spray and hot water exposure.
Installation requires qualified technicians to safely disconnect power and carefully position the switch to ensure proper door alignment. The switch mounting must be verified to position the actuating lever for reliable engagement as the door opens and closes through its full range. Testing includes verifying that the switch interrupts power when the door is open and allows operation only when the door is fully closed. Regular maintenance includes inspecting lever alignment and mechanical wear, testing the switch function monthly, and ensuring the door closure mechanism properly actuates the switch.
Read more...
Door switches fail due to repeated mechanical actuation from constant door opening and closing, worn actuating levers, misalignment causing inconsistent contact, or water intrusion corroding electrical contacts. Failure symptoms include equipment operating with the door open, inability to start the cycle when the door is closed, or intermittent operation depending on door position. A failed door switch creates serious safety hazards by allowing operation with access doors open, risking operator injury from spray and hot water exposure.
Installation requires qualified technicians to safely disconnect power and carefully position the switch to ensure proper door alignment. The switch mounting must be verified to position the actuating lever for reliable engagement as the door opens and closes through its full range. Testing includes verifying that the switch interrupts power when the door is open and allows operation only when the door is fully closed. Regular maintenance includes inspecting lever alignment and mechanical wear, testing the switch function monthly, and ensuring the door closure mechanism properly actuates the switch.
Product Specs
Warranty |
120-day warranty |
SKU |
117290 |
-
