Jackson

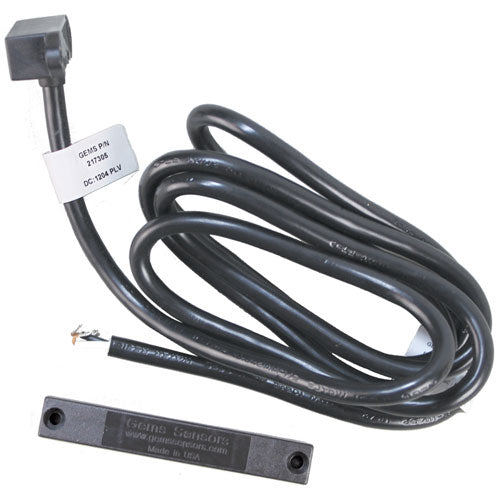

Switch & Magnet - Door for Jackson Part# 05930-111-35-24
Part #05930-111-35-24
SKU: 133746
Regular price
$369.87
Regular price
Sale price
$369.87
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
Switch & Magnet - Door for Jackson Part# 05930-111-35-24
Details
The switch and magnet door assembly (part number 05930-111-35-24) is a replacement door safety component designed for Jackson undercounter dishwashers, door-type dishwashers, glass washers, and pot & pan washers. This integrated unit combines a magnetic reed switch with a permanent magnet, providing contactless door position monitoring that prevents equipment operation when the access door is open. The assembly eliminates separate component installation by providing both switch and actuating magnet in one unit.
Door interlock assemblies fail when the magnetic bond degrades, the reed switch seal fails allowing moisture intrusion, the switch contacts corrode, or the magnet becomes displaced or loses strength. Failure symptoms include equipment operating with the door open, inability to start cycles with the door closed, or intermittent operation depending on door position. A failed door safety assembly creates serious hazards by allowing operation with access doors open, risking operator injury from spray and hot water contact.
Installation requires qualified technicians to securely mount the assembly on the door edge, positioning the magnet opposite the switch location to activate reliably as the door opens and closes. The switch must maintain consistent proximity to the magnet through the full door range. Testing involves verifying that the switch breaks the safety circuit when the door is open and allows operation only when the door is fully closed. Maintenance includes checking magnet positioning annually, verifying seal integrity, testing the safety function monthly, and ensuring smooth door closure activates the switch reliably.
Read more...
Door interlock assemblies fail when the magnetic bond degrades, the reed switch seal fails allowing moisture intrusion, the switch contacts corrode, or the magnet becomes displaced or loses strength. Failure symptoms include equipment operating with the door open, inability to start cycles with the door closed, or intermittent operation depending on door position. A failed door safety assembly creates serious hazards by allowing operation with access doors open, risking operator injury from spray and hot water contact.
Installation requires qualified technicians to securely mount the assembly on the door edge, positioning the magnet opposite the switch location to activate reliably as the door opens and closes. The switch must maintain consistent proximity to the magnet through the full door range. Testing involves verifying that the switch breaks the safety circuit when the door is open and allows operation only when the door is fully closed. Maintenance includes checking magnet positioning annually, verifying seal integrity, testing the safety function monthly, and ensuring smooth door closure activates the switch reliably.
Product Specs
Warranty |
120-day warranty |
SKU |
133746 |
-
