Cleveland
Thermopile For Cleveland Part# 20410
Part #20410
SKU: 100554
Regular price
$65.80
Regular price
Sale price
$65.80
Unit price
/
per
Couldn't load pickup availability
SHIPPING
Order by 3:00 PM EST for same-day shipping
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW

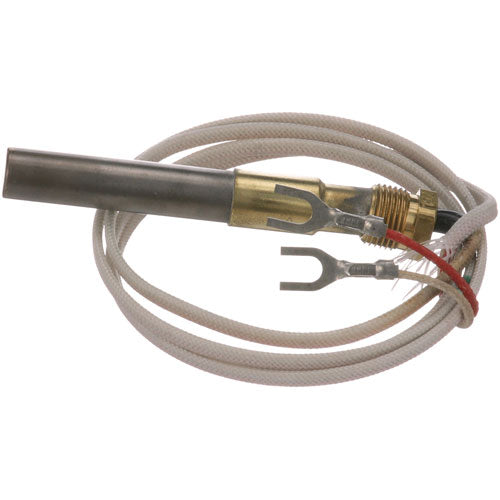

Introducing our thermopile designed for Cleveland Part # 20410. This thermopile features a length of 36" with two leads and generates a voltage range of 250-750 mV, ensuring optimal performance in various applications.
Details
The Thermopile (Part# 20410) is a Cleveland-compatible replacement thermopile for use in Cleveland commercial gas-fired cooking and steamer equipment. The thermopile generates a millivolt electrical signal from the heat of the pilot flame, which is used to power and hold open the main gas valve during normal equipment operation, producing higher voltage output than a single thermocouple to reliably operate the gas valve.
Thermopiles degrade over time from continuous high-temperature exposure of the pilot flame environment, resulting in a reduced millivolt output that may no longer provide sufficient current to hold the gas valve open reliably. Symptoms of a failing thermopile include a pilot flame that lights correctly but will not hold when the pilot button is released, intermittent main burner shutdowns, or a gas valve that requires the pilot button to be held for an unusually long time. Measuring the millivolt output with a meter while the pilot is lit is the definitive test for thermopile condition.
Thermopile replacement should be performed by a qualified gas appliance technician with the gas supply shut off and the equipment cooled. Remove the thermopile from its mounting position in the pilot assembly, disconnect the lead wires from the gas valve, and install the new Thermopile in the same location. Restore gas and follow the lighting procedure in the Cleveland equipment manual, holding the pilot button long enough for the new thermopile to heat up and generate sufficient millivolts, then verify that the pilot holds and the main burner operates normally.
Read more...
Thermopiles degrade over time from continuous high-temperature exposure of the pilot flame environment, resulting in a reduced millivolt output that may no longer provide sufficient current to hold the gas valve open reliably. Symptoms of a failing thermopile include a pilot flame that lights correctly but will not hold when the pilot button is released, intermittent main burner shutdowns, or a gas valve that requires the pilot button to be held for an unusually long time. Measuring the millivolt output with a meter while the pilot is lit is the definitive test for thermopile condition.
Thermopile replacement should be performed by a qualified gas appliance technician with the gas supply shut off and the equipment cooled. Remove the thermopile from its mounting position in the pilot assembly, disconnect the lead wires from the gas valve, and install the new Thermopile in the same location. Restore gas and follow the lighting procedure in the Cleveland equipment manual, holding the pilot button long enough for the new thermopile to heat up and generate sufficient millivolts, then verify that the pilot holds and the main burner operates normally.
Product Specs
36" 2 Lead
Thermopile
250-750 Mv
Robertshaw 1950-53B
Thermopile
250-750 Mv
Robertshaw 1950-53B
Warranty |
120-day warranty |
SKU |
100554 |
-
