Turbochef
Transformer for Turbochef Part# TBCNGC-3062-1
Part #TBCNGC-3062-1
Couldn't load pickup availability
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

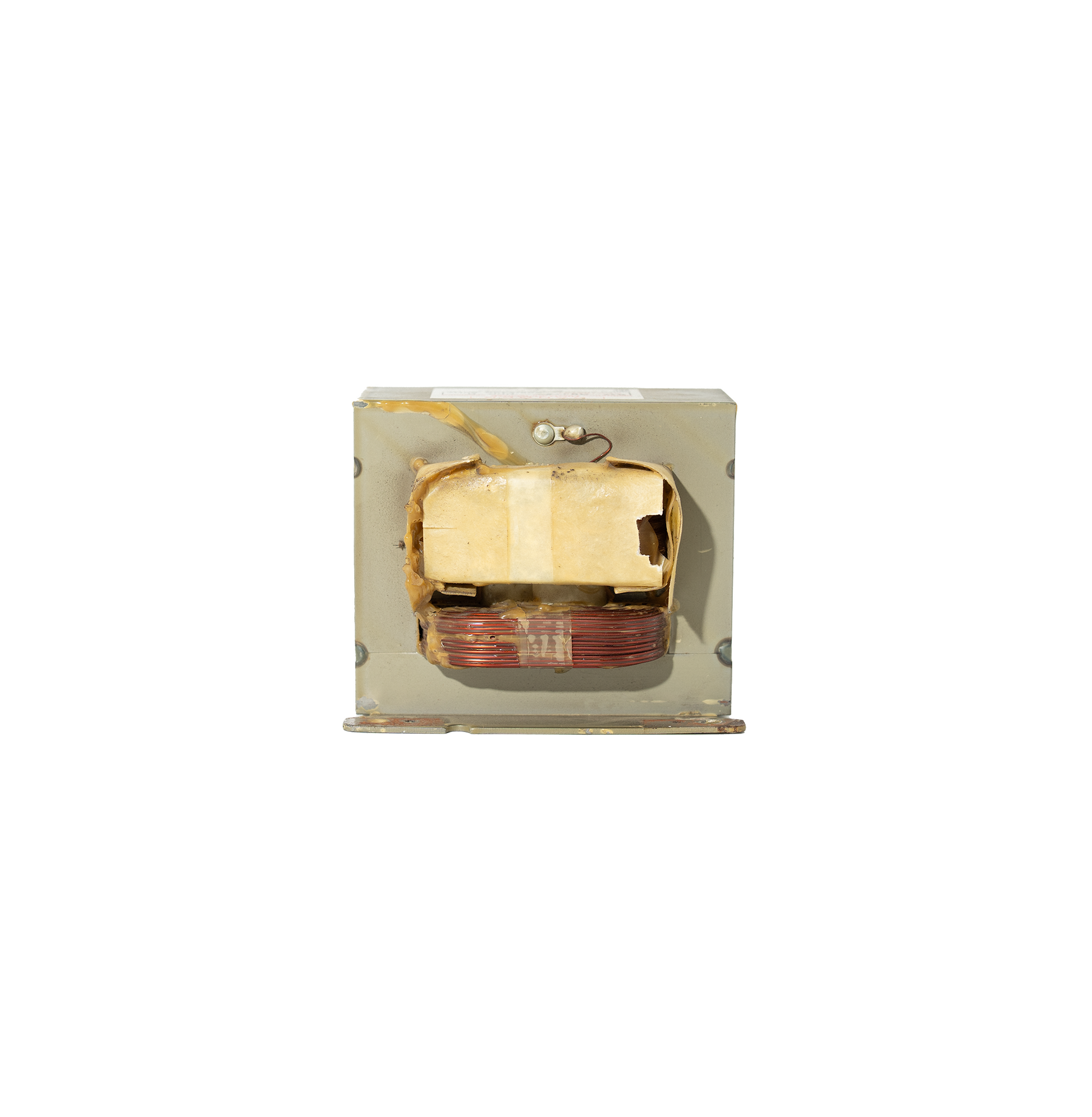

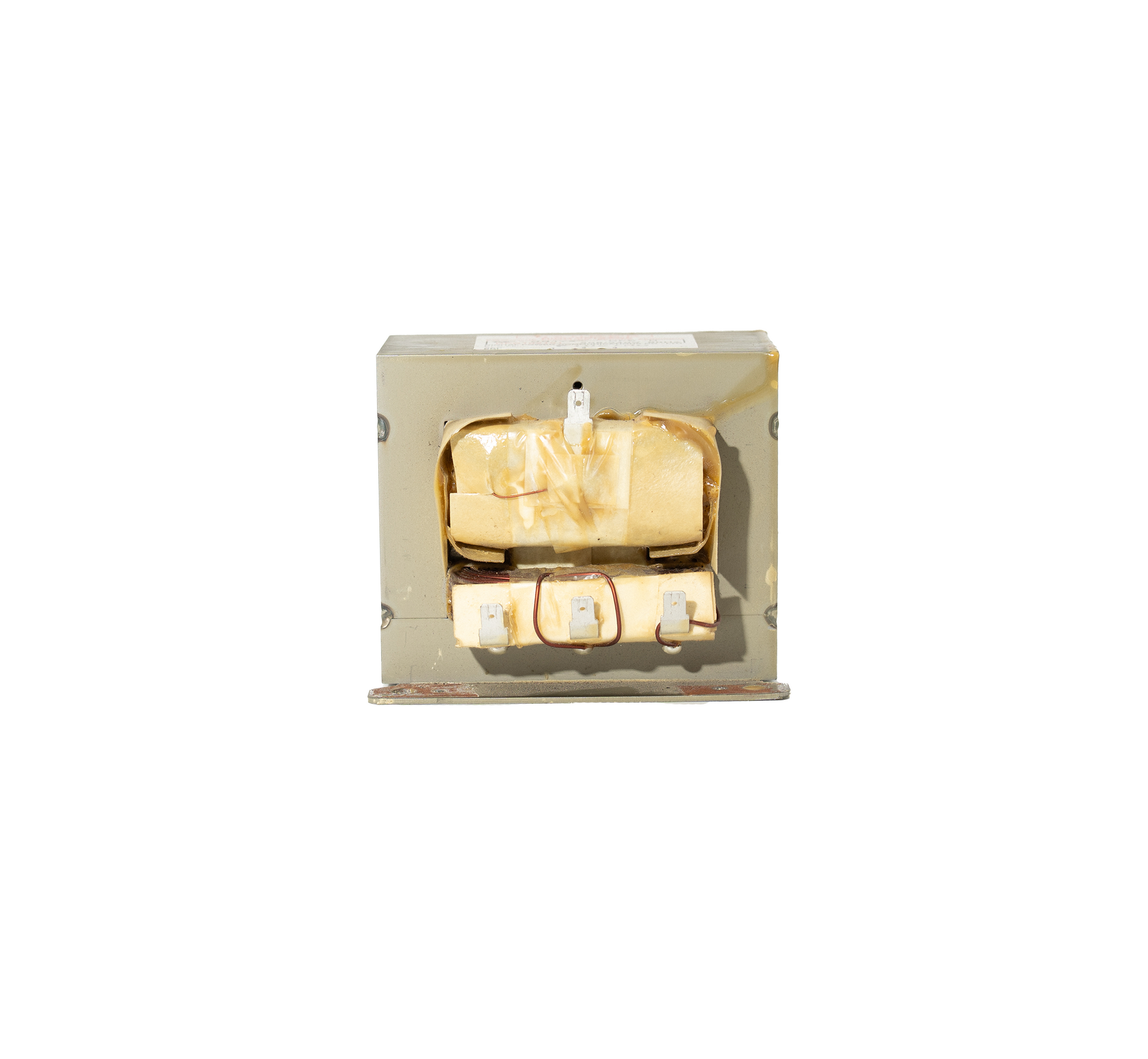

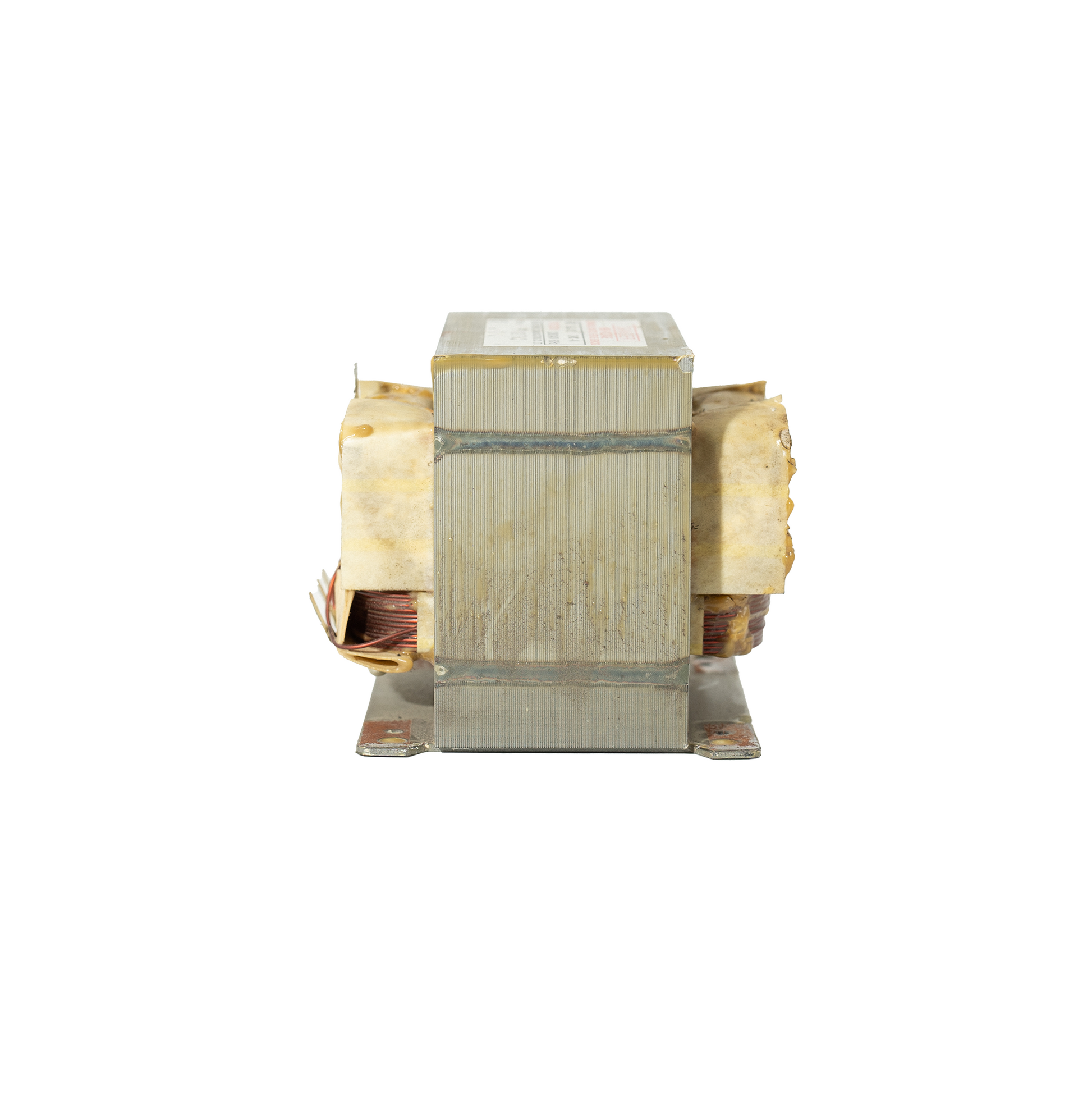

The TurboChef NGC-3062-1 Transformer is a genuine OEM replacement transformer designed for TurboChef ovens requiring 208/240 volt, 60HZ electrical conversion. This transformer regulates and steps voltage as required to support proper control board and system power distribution, helping ensure stable performance and reliable operation. Manufactured to OEM specifications, it provides the correct fit and dependable output for commercial kitchen environments.
Details
High-voltage transformer failures in TurboChef ovens present as complete loss of microwave cooking function, with the oven's thermal (convection) performance unaffected, allowing the root cause to be isolated to the microwave power circuit. Common failure modes include primary or secondary winding shorts caused by insulation breakdown from sustained high-voltage stress and thermal aging, open-circuit windings from thermal cycling fatigue, and core saturation from sustained overvoltage operation on unstable supply lines. Symptoms include the oven heating food on the outside through convection alone with no internal temperature rise, the magnetron failing to draw current, and in some cases audible humming or buzzing from a shorted transformer. Replacing the failed unit with a direct replacement transformer restores full microwave power to the magnetron, returning the oven's combination cooking capability and speed advantage immediately.
High-voltage transformer replacement demands strict adherence to TurboChef's high-voltage safety procedures, including full power disconnection and verified capacitor discharge using an approved discharge resistor before touching any HV circuit component; this work must be performed by a qualified, TurboChef-trained technician. After installation, verify primary current draw and secondary output voltage against the service manual specifications before installing the magnetron and reinstating the microwave circuit. Replace the transformer whenever the magnetron circuit shows loss of power output with the magnetron confirmed functional, when insulation resistance testing reveals winding degradation, or during any magnetron replacement as a precautionary measure. Pair replacement with a new magnetron inspection, HV capacitor check, and a full post-repair microwave power output verification before returning the oven to service.
Product Specs
Voltage (V) |
208/240V |
Frequency (Hz) |
60Hz |
Phase |
1Ph |
Warranty |
120-day warranty |
SKU |
135755 |
-
