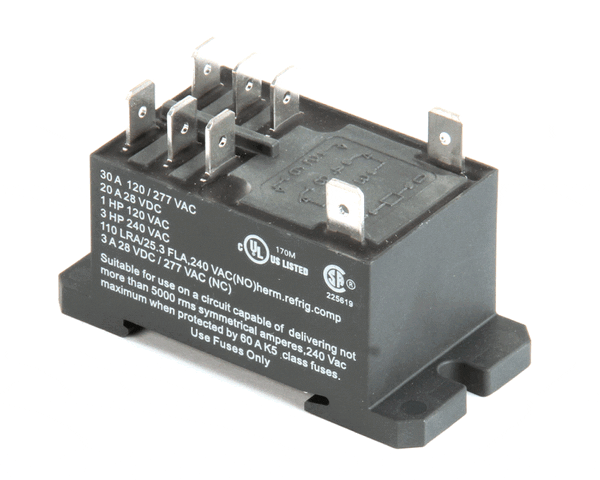

TurboChef 101279 Relay, DPDT, 30A
Part #101279

Availability
$28.49
$28.49
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The TurboChef 101279 Relay is a genuine OEM DPDT relay rated for 30 amps, designed for use in compatible TurboChef ovens and equipment. This relay helps control high-current electrical circuits by switching power to key components such as heating systems, motors, or control circuits. A failing relay may cause intermittent operation, component failure to energize, overheating, or electrical faults. Replacing it with the correct OEM relay helps restore dependable switching performance and maintains safe, reliable operation in demanding commercial kitchen environments.

View full details

Details

The genuine OEM replacement Relay, DPDT, 30A is a double-pole double-throw electromechanical relay rated at 30 amperes per pole, specified by TurboChef for high-current switching applications in NGC and HHB oven control panels where simultaneous switching of two independent circuits — or transfer between two load configurations — is required within a single relay actuation. The DPDT contact configuration makes this relay ideal for applications such as switching dual heating element banks, reversing motor circuits, or providing redundant circuit control, and the 30A contact rating provides substantial margin for the resistive and inductive loads present in TurboChef's high-volume commercial ovens. A genuine OEM replacement relay with the correct coil voltage, contact rating, and DPDT configuration is essential for maintaining the control logic integrity of the NGC and HHB electrical systems.

At 30A switching duty in commercial oven environments, DPDT relays are subject to contact welding on the high-current poles during inrush events, differential contact wear between the two poles from unbalanced load conditions, and coil degradation from sustained elevated enclosure temperatures. When one pole welds closed while the other opens normally, the oven control logic receives contradictory circuit states, producing confusing fault codes, erratic oven behavior, or in worst-case scenarios, simultaneous energization of circuits intended to be mutually exclusive. Replacing the failed relay with a genuine OEM DPDT 30A unit restores correct dual-pole switching, resolves associated fault codes, and returns NGC and HHB oven control logic to its designed operating state.

Installation requires power isolation, capacitor discharge, and careful reference to the oven's wiring schematic to correctly identify the relay's coil terminals and the NO/NC contact assignments for both poles; incorrect wiring of a DPDT relay can create hazardous circuit states. Replace this relay when either pole shows evidence of contact welding or excessive resistance, when control-board diagnostics flag circuit state mismatches, or during scheduled high-current relay inspection intervals recommended in the NGC and HHB service documentation. After replacement, perform a full functional test of all circuits controlled by the relay through a complete cook cycle before returning the oven to service, and pair with inspection of adjacent wiring harness connections for heat or arc damage.
Read more...

Product Specs

Phase

1Ph

Amps (A)

30A

Warranty

90-day warranty

SKU

145828
