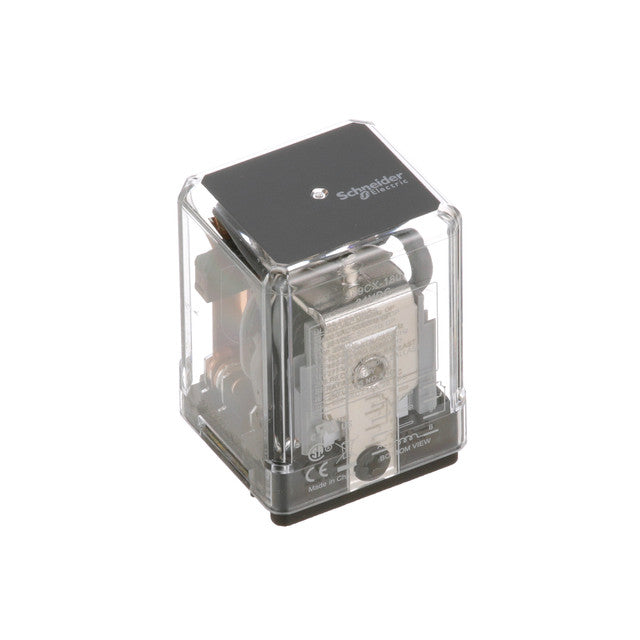

TurboChef 105160 Relay, Mechanical, DPDT, 2 Pole, 24VDC
Part #105160
SKU: 145765
Regular price
$59.66
Regular price
Sale price
$59.66
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
The TurboChef 105160 Mechanical Relay is a DPDT relay designed for TurboChef commercial ovens and equipment requiring 24VDC switching control. This 2-pole, double pole double throw (DPDT) relay provides reliable electrical switching for control circuits and internal components.
Details
The quality replacement Relay, Mechanical, DPDT, 2 Pole, 24VDC is a factory-specified double-pole double-throw electromechanical relay with a 24VDC control coil, designed for use in TurboChef i3 and i5 iSeries countertop rapid-cook ovens where its two independent switching poles provide the control logic flexibility required to manage multiple load circuits from a single board output. In the i3 and i5 control architecture, this relay type is used to switch heater stages, fan circuits, or auxiliary loads while maintaining electrical isolation between the 24VDC control plane and the higher-voltage load circuits, a separation that is critical to the reliability and safety of the iSeries control system. The quality replacement relay's coil impedance, mechanical life rating, and contact configuration are validated against TurboChef's i3/i5 design specification, ensuring seamless drop-in replacement without control board compatibility issues.
Mechanical DPDT relays in i3 and i5 ovens are vulnerable to contact welding from repeated inrush switching of resistive heating loads and to coil failure from the high ambient temperatures within the compact iSeries electrical enclosure, with failure symptoms including one or both poles failing to switch, intermittent circuit behavior that worsens with enclosure temperature, erratic cook performance, and oven fault codes referencing heater or circuit state anomalies. Because the i3 and i5 are compact countertop units, heat build-up in the electrical section can accelerate relay aging compared to larger cavity ovens; proactive replacement is therefore recommended at the service intervals specified in the i3/i5 service manual. Installing this quality DPDT 24VDC relay restores full dual-pole switching capability and eliminates the intermittent faults that degrade cook program execution in iSeries ovens.
Relay replacement in the i3 and i5 requires removing the service panel to access the relay board, powering down and discharging capacitors, and referencing the iSeries wiring diagram to correctly orient the DPDT relay in its mounting socket or solder pads. Replace this relay whenever either switching pole fails to respond to coil energization, when coil resistance deviates from nominal, or at any scheduled iSeries electrical inspection. Complement this repair with a thermal inspection of all nearby relay board components for heat discoloration, a wiring harness check for insulation integrity, and a post-replacement cook cycle verification confirming all switched circuits respond correctly to control board commands.
Read more...
Mechanical DPDT relays in i3 and i5 ovens are vulnerable to contact welding from repeated inrush switching of resistive heating loads and to coil failure from the high ambient temperatures within the compact iSeries electrical enclosure, with failure symptoms including one or both poles failing to switch, intermittent circuit behavior that worsens with enclosure temperature, erratic cook performance, and oven fault codes referencing heater or circuit state anomalies. Because the i3 and i5 are compact countertop units, heat build-up in the electrical section can accelerate relay aging compared to larger cavity ovens; proactive replacement is therefore recommended at the service intervals specified in the i3/i5 service manual. Installing this quality DPDT 24VDC relay restores full dual-pole switching capability and eliminates the intermittent faults that degrade cook program execution in iSeries ovens.
Relay replacement in the i3 and i5 requires removing the service panel to access the relay board, powering down and discharging capacitors, and referencing the iSeries wiring diagram to correctly orient the DPDT relay in its mounting socket or solder pads. Replace this relay whenever either switching pole fails to respond to coil energization, when coil resistance deviates from nominal, or at any scheduled iSeries electrical inspection. Complement this repair with a thermal inspection of all nearby relay board components for heat discoloration, a wiring harness check for insulation integrity, and a post-replacement cook cycle verification confirming all switched circuits respond correctly to control board commands.
Product Specs
Voltage (V) |
24V |
Phase |
1Ph |
Warranty |
120-day warranty |
SKU |
145765 |
-
