• TurboChef ECO-3204-1 Filament Transformer, High Voltage, With Packaging replacement part
1 1
OEM

Turbochef

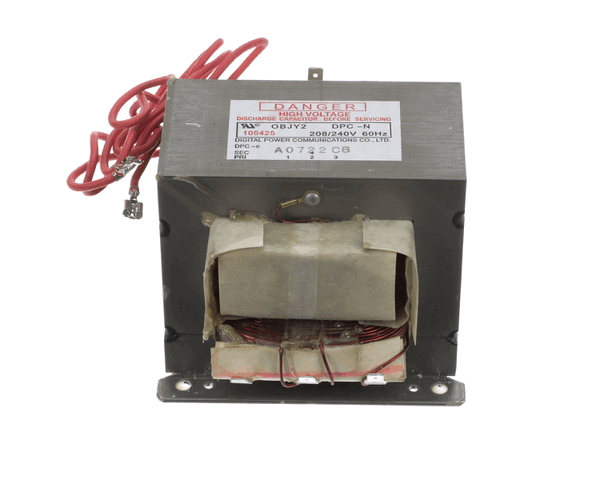

TurboChef ECO-3204-1 Filament Transformer, High Voltage, With Packaging
Part #ECO-3204-1

Availability
$279.99
$279.99
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The TurboChef ECO-3204-1 Filament Transformer is a genuine OEM high voltage transformer designed for compatible TurboChef ovens and equipment using microwave power systems. This filament transformer supplies the proper voltage to support magnetron operation and reliable microwave energy production. A failing transformer can lead to heating issues, error codes, inconsistent performance, or loss of microwave output. Replacing it with the correct OEM transformer helps restore dependable electrical performance and protects critical high-voltage system components. This part ships with packaging for safe handling and transport.

View full details

Details

This genuine OEM replacement Filament Transformer for the TurboChef ECO-ST fire oven is supplied with protective packaging and provides the high-voltage step-up and filament step-down transformation required to power the ECO-ST's magnetron assembly. In the ECO-ST's high-voltage supply circuit, the filament transformer works in conjunction with the high-voltage capacitor and diode to generate the anode voltage that drives microwave emission while simultaneously providing the filament current that keeps the magnetron cathode at operating temperature. The inclusion of manufacturer's protective packaging indicates this is a fragile, precision-wound component that must be handled carefully during shipping and installation to prevent core damage or winding displacement.

High-voltage filament transformer failure in the ECO-ST often stems from winding insulation breakdown under sustained high-voltage stress, core saturation from line voltage transients, and overtemperature damage when the oven's ventilation is obstructed or the cooling fan malfunctions. Failure modes include shorted primary or secondary windings that blow the main fuse, open windings that produce no magnetron output, and partial insulation breakdown that causes arcing within the transformer body—all presenting as total microwave function loss, repeated fuse failures, or unusual buzzing or burning odors during operation. Replacing the transformer with the OEM unit eliminates the root cause of these electrical faults and restores full microwave capability to the ECO-ST fire oven.

Installation must be performed by a qualified technician with the oven fully de-energized and the high-voltage capacitor safely discharged; handle the transformer using the protective packaging until the moment of installation to prevent impact damage to the ferrite core. Verify mounting bracket alignment so the transformer is not subject to mechanical stress from overtightened fasteners, and confirm all winding lead connections match the ECO-ST wiring schematic before re-energizing. Replace the filament transformer when winding faults are confirmed by resistance measurement or when repeated fuse failures trace to the high-voltage circuit. Pair replacement with high-voltage capacitor and diode inspection to ensure the complete HV supply circuit is in good condition before returning the ECO-ST to service.
Read more...

Product Specs

Voltage (V)

208/240V

Frequency (Hz)

60Hz

Phase

1Ph

Warranty

90-day warranty

SKU

145841
