TurboChef

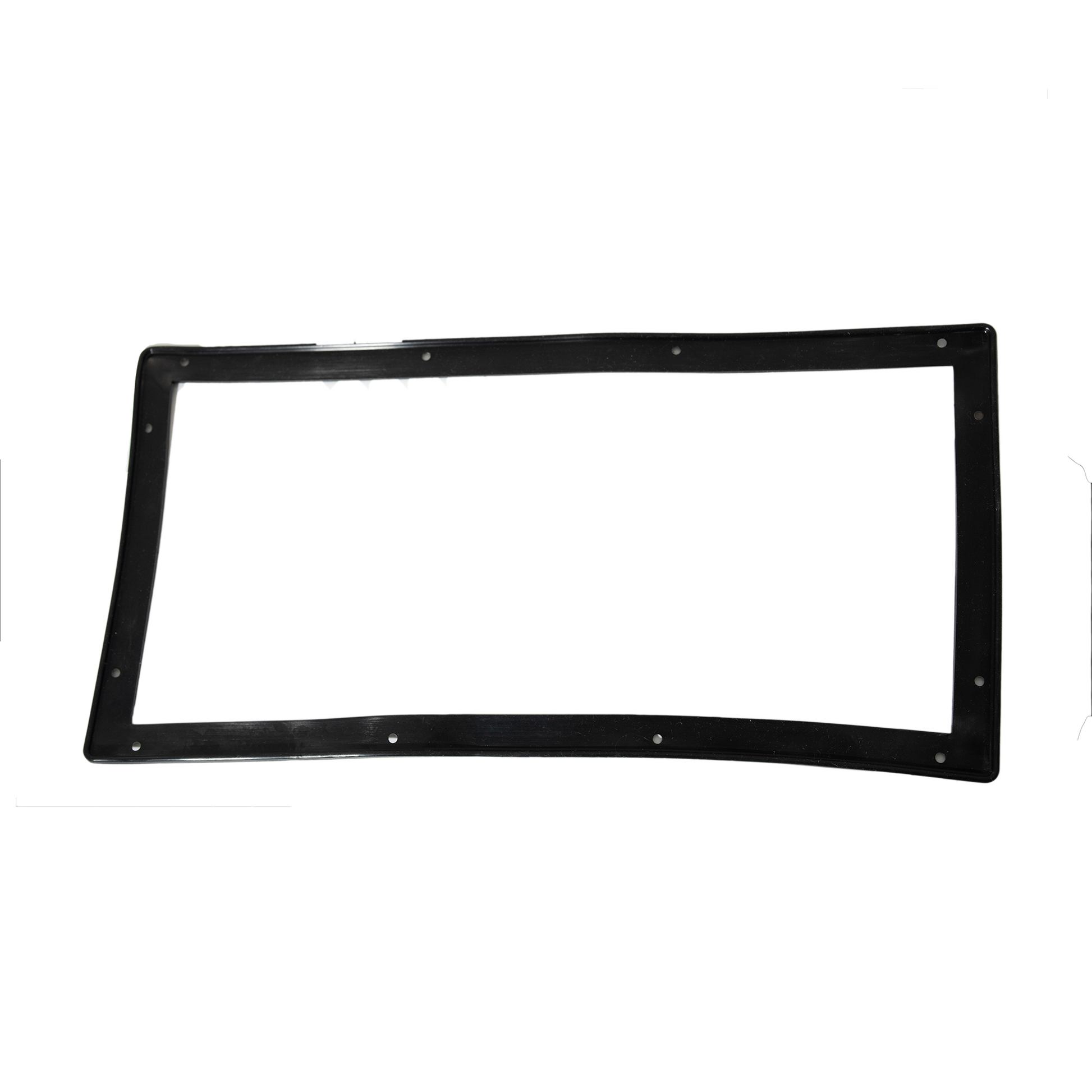

TurboChef HHB-8101 Door Gasket
Part #HHB8101
SKU: 144683
Regular price
$44.99
Regular price
$62.21 USD
Sale price
$44.99
Unit price
/
per
Couldn't load pickup availability
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.
CUSTOMER REVIEWS
PRODUCT OVERVIEW
The TurboChef HHB-8101 door gasket is a genuine OEM replacement part for TurboChef high-speed ovens. This heat-resistant gasket creates a secure seal around the oven door, preventing heat loss and ensuring consistent cooking performance. Designed for durability and a perfect fit with select TurboChef models.
Details
This quality replacement Door Gasket is engineered specifically for the TurboChef HHB High-h Batch oven and forms the primary thermal and microwave-containment seal between the oven door and the cavity frame. Fabricated from high-temperature silicone or composite elastomer, the gasket maintains a continuous, compression-fit perimeter seal that prevents microwave energy leakage and retains the high-velocity hot air imperative to achieving TurboChef's signature 10–15x cooking speed advantage. Using the correct gasket guarantees the precise durometer, profile geometry, and material rating required to meet FCC Part 18 microwave leakage standards and NSF food-safety requirements.
Over time, repeated thermal cycling causes the gasket material to harden, crack, compress permanently, or pull away from the door frame, resulting in heat loss at the door perimeter, detectable microwave leakage readings above 5 mW/cm², extended cook times, and inconsistent food quality across the batch. A degraded gasket can also allow grease-laden vapor to migrate behind the door panel, accelerating corrosion of the door hinge hardware and interlock switch assemblies. Replacing the worn gasket immediately restores the cavity's thermal efficiency, brings microwave containment back within regulatory limits, and protects surrounding door components from grease contamination.
The gasket seats into the door-frame channel and is retained by compression fit or adhesive depending on the HHB door revision; the door surface should be cleaned thoroughly with isopropyl alcohol before installation to ensure proper adhesion and uniform compression. Replace the gasket at the first sign of cracking, flattening, or peeling, or as part of any scheduled semi-annual preventive maintenance visit. Complement this replacement with inspection of the HHB door hinges and door receiver assembly to confirm the door applies even compression force around the full gasket perimeter after installation.
Read more...
Over time, repeated thermal cycling causes the gasket material to harden, crack, compress permanently, or pull away from the door frame, resulting in heat loss at the door perimeter, detectable microwave leakage readings above 5 mW/cm², extended cook times, and inconsistent food quality across the batch. A degraded gasket can also allow grease-laden vapor to migrate behind the door panel, accelerating corrosion of the door hinge hardware and interlock switch assemblies. Replacing the worn gasket immediately restores the cavity's thermal efficiency, brings microwave containment back within regulatory limits, and protects surrounding door components from grease contamination.
The gasket seats into the door-frame channel and is retained by compression fit or adhesive depending on the HHB door revision; the door surface should be cleaned thoroughly with isopropyl alcohol before installation to ensure proper adhesion and uniform compression. Replace the gasket at the first sign of cracking, flattening, or peeling, or as part of any scheduled semi-annual preventive maintenance visit. Complement this replacement with inspection of the HHB door hinges and door receiver assembly to confirm the door applies even compression force around the full gasket perimeter after installation.
Product Specs
