• TurboChef HHC-4120 Conveyor Motor, 208/230V, 1/50HP replacement part
1 1
OEM

Turbochef

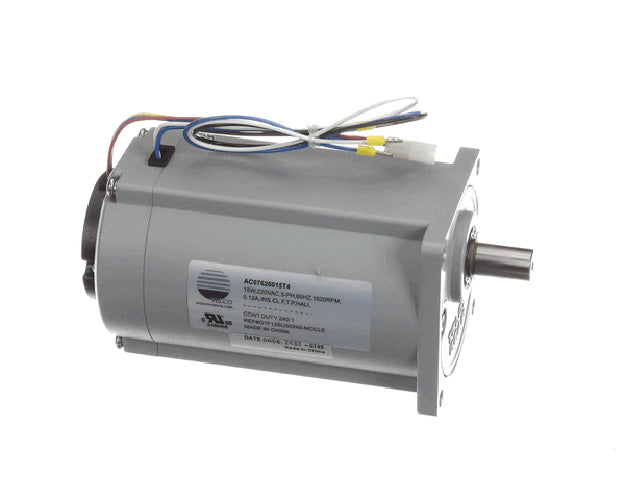

TurboChef HHC-4120 Conveyor Motor, 208/230V, 1/50HP
Part #HHC-4120

Availability
$1,100.99
$1,100.99
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The TurboChef HHC-4120 Conveyor Motor is a genuine OEM replacement motor designed for TurboChef conveyor oven systems. Rated for 208/230V and 1/50 horsepower, this motor drives the conveyor mechanism to maintain consistent belt movement through the cooking chamber. A properly functioning conveyor motor is essential for accurate cook times, reliable throughput, and consistent product results in high-volume commercial kitchens. Manufactured to TurboChef OEM specifications, it ensures correct fit, dependable operation, and long service life.

View full details

Details

The TurboChef Conveyor Motor, 208/230V, 1/50HP is a genuine OEM replacement conveyor drive motor for TurboChef HHC conveyor oven models. Rated at 1/50 horsepower and designed for operation on 208 or 230-volt single-phase power, this motor provides the driving torque to move the conveyor belt through the cooking tunnel at the precise speeds programmed into the oven's cook programs, with belt speed being one of the critical control variables that determines product cook time in a conveyor oven. Using the correct OEM conveyor motor ensures the rated torque output, shaft diameter, gearbox interface, and electrical characteristics match the HHC conveyor drive system design, maintaining accurate belt speed across the full programmed speed range.

Over time, the original HHC conveyor motor can experience winding insulation breakdown from sustained thermal exposure in the oven environment, bearing wear that increases motor current draw and generates audible noise, gear wear in the integral gearbox, or capacitor failure in single-phase motor designs, which leads to belt speed instability, loss of belt movement, conveyor belt tracking problems from uneven drive torque, and eventually complete motor failure that stops product flow through the oven. Replacing the failed motor with a new OEM 208/230V, 1/50HP conveyor motor restores precise, consistent belt drive torque and accurate conveyor speed across all programmed settings. This ensures cook times are controlled accurately by belt speed as intended and eliminates the throughput disruption caused by an inoperative conveyor.

Conveyor motor replacement requires a qualified technician to de-energize the HHC oven, access the drive motor mounting location per the HHC service manual, disconnect the motor wiring and detach it from the drive chain or belt system, and install the new motor with correct gearbox alignment and chain tension adjustment. It is recommended to replace the conveyor motor when audible bearing noise, belt speed inconsistency, or motor overcurrent trips indicate motor degradation, rather than waiting for complete motor failure during service hours. Pairing conveyor motor replacement with inspection of the drive chain or belt, drive sprockets, conveyor belt tension, and conveyor belt condition will provide a complete drive system service and prevent premature wear of the new motor from pre-existing mechanical issues.
Read more...

Product Specs

Voltage (V)

208/230V

Frequency (Hz)

60Hz

Phase

1Ph

Horsepower (HP)

1/50HP

Warranty

90-day warranty

SKU

145806
