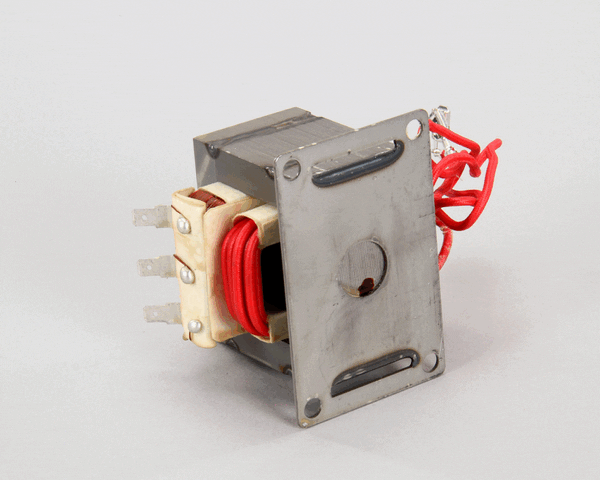

• TurboChef NGC-3061-1 Filament Transformer Kit, 208/240V, 60HZ replacement part
1 1
OEM

Turbochef

TurboChef NGC-3061-1 Filament Transformer Kit, 208/240V, 60HZ
Part #NGC-3061-1

Availability
$154.99
$154.99
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The TurboChef NGC-3061-1 Filament Transformer Kit is a genuine OEM replacement kit designed for TurboChef ovens using high-voltage microwave systems. Rated for 208/240V at 60Hz, this filament transformer supports proper magnetron filament power delivery, which is essential for stable microwave output and consistent cooking performance. Manufactured to TurboChef OEM specifications, this kit provides the correct components for proper installation, safe operation, and long service life in commercial kitchen environments.

View full details

Details

This genuine OEM replacement Filament Transformer Kit for 208/240V, 60Hz operation provides the complete step-down transformer assembly required to supply the correct cathode filament voltage to the magnetron in TurboChef NGC countertop rapid-cook ovens. The filament transformer is a critical component of the magnetron power supply circuit, providing the low-voltage, high-current supply that heats the magnetron cathode to operating temperature and enables stable microwave emission during every cook cycle. Using the OEM kit—which includes the transformer, mounting hardware, and wiring leads—ensures the filament voltage is within the magnetron manufacturer's specification, protecting the magnetron from premature cathode degradation due to over- or under-voltage.

Filament transformer failure in the NGC typically presents as a magnetron that draws no current, produces no microwave output, yet shows no visible damage—because the magnetron cathode has either never reached operating temperature or has been damaged by sustained filament undervoltage. Other symptoms include erratic microwave power output, extended cook times at apparent full power, or repeated magnetron failures shortly after replacement, indicating the root cause is the transformer rather than the magnetron itself. Isolating and replacing a failed filament transformer with the correct OEM kit prevents the costly repeat magnetron replacements that result from diagnosing the symptom rather than the cause.

Installation requires full de-energization and high-voltage capacitor discharge before accessing the magnetron power supply compartment; connect the filament transformer leads per the NGC wiring diagram, ensuring correct polarity at the magnetron filament terminals. After installation, verify filament voltage at the magnetron terminals with a meter before re-energizing the high-voltage circuit, confirming it matches the magnetron specification. This kit should be replaced whenever magnetron filament circuit faults are diagnosed, or whenever a new magnetron fails to produce output despite correct high-voltage supply. Pair the filament transformer replacement with inspection of the high-voltage capacitor and diode to service the complete magnetron power supply circuit in one visit.
Read more...

Product Specs

Voltage (V)

208/240V

Frequency (Hz)

60Hz

Phase

1Ph

Warranty

90-day warranty

SKU

145782
